M54-KW (53AI8CTW750) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki FH680V-AS29 Electric Equipment Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

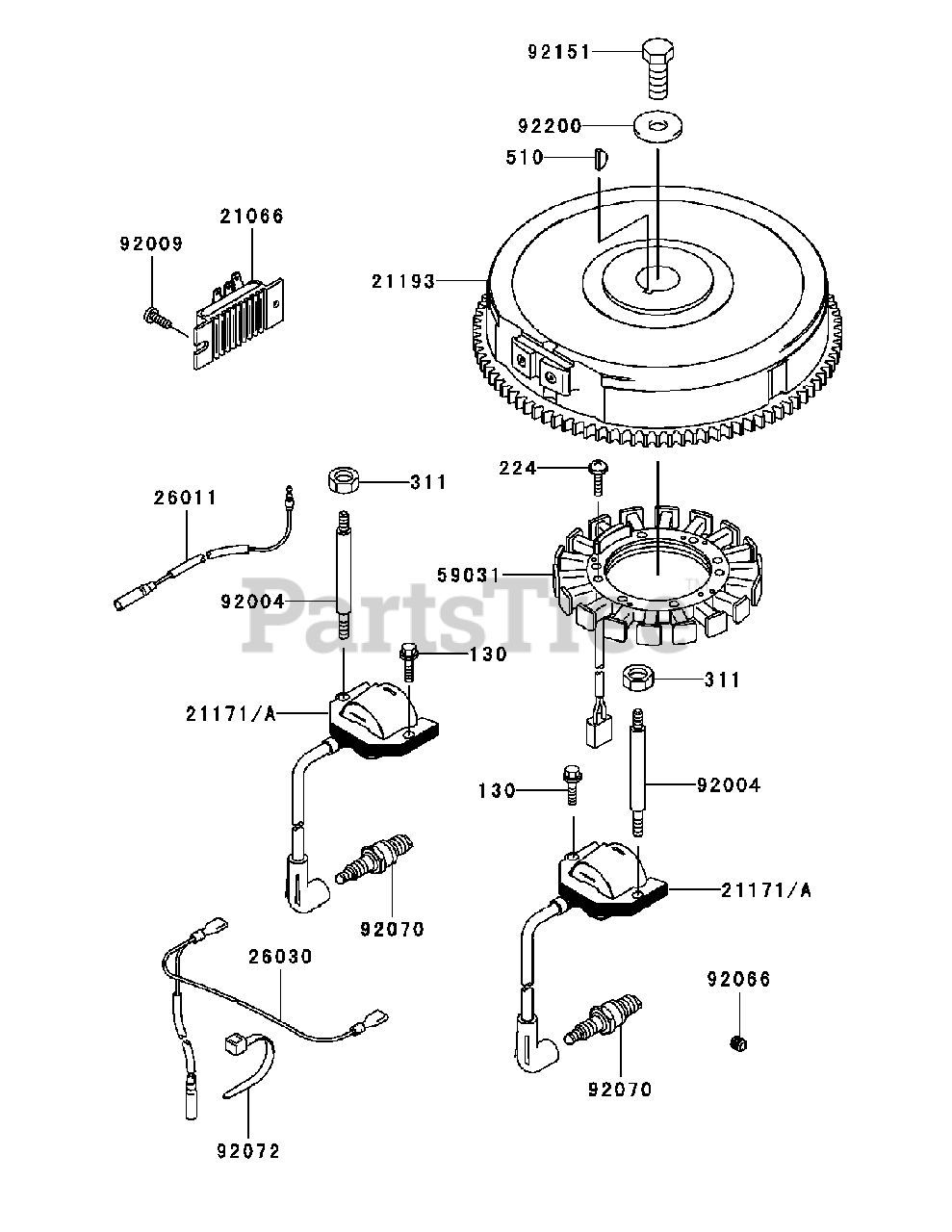

FH680V-AS29 Electric Equipment Parts Diagram

  • Title

21066

Cub Cadet KM-21066-7011

REGULATOR-VOLTAGE

$77.99

$

In Stock, Qty 8

0

21171

Cub Cadet n/a

COIL-ASSY-IGNITION

$

$

Currently unavailable

21171A

Cub Cadet KM-21171-7034

COIL-ASSY-IGNITION

$81.99

$

In Stock, Qty 6

0

21193

Cub Cadet KM-21193-7045

FLYWHEEL-ASSY
(Superseded to KM-21193-0021)

$323.99

$

In Stock, only 1 left!

0

26011

Cub Cadet KM-26011-7008

WIRE-LEAD,L=540

$3.49

$

In Stock, only 4 left!

0

26030

Cub Cadet KM-26030-7002

HARNESS

$10.99

$

In Stock, only 4 left!

0

59031

Cub Cadet KM-59031-7014

COIL-CHARGING
(Superseded to KM-59031-7009)

$128.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-7009

STUD
(Superseded to KM-92004-7026)

$4.99

$

In Stock, only 2 left!

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 6

0

92066

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

92070

Cub Cadet KM-BPR4ES

PLUG-SPARK

$3.49

$

In Stock, Qty 20+

0

92072

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, only 3 left!

0

92151

Cub Cadet KM-92154-7003

BOLT,12X30

$4.99

$

In Stock, only 1 left!

0

92200

Cub Cadet KM-92200-7002

WASHER

$3.49

$

In Stock, Qty 8

0

130

Cub Cadet KM-130CA0620

BOLT-FLANGED

$

$

Not available

224

Cub Cadet KM-224B0520

SCREW-PAN-WP-CROS
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 11

0

311

Cub Cadet KM-311AA0600

NUT-HEX

$0.99

$

In Stock, Qty 16

0

510

Cub Cadet KM-510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 11

0
