M54-KW (53AI8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kawasaki Kawasaki FH721V-BS24 Lubrication Equipment Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kawasaki

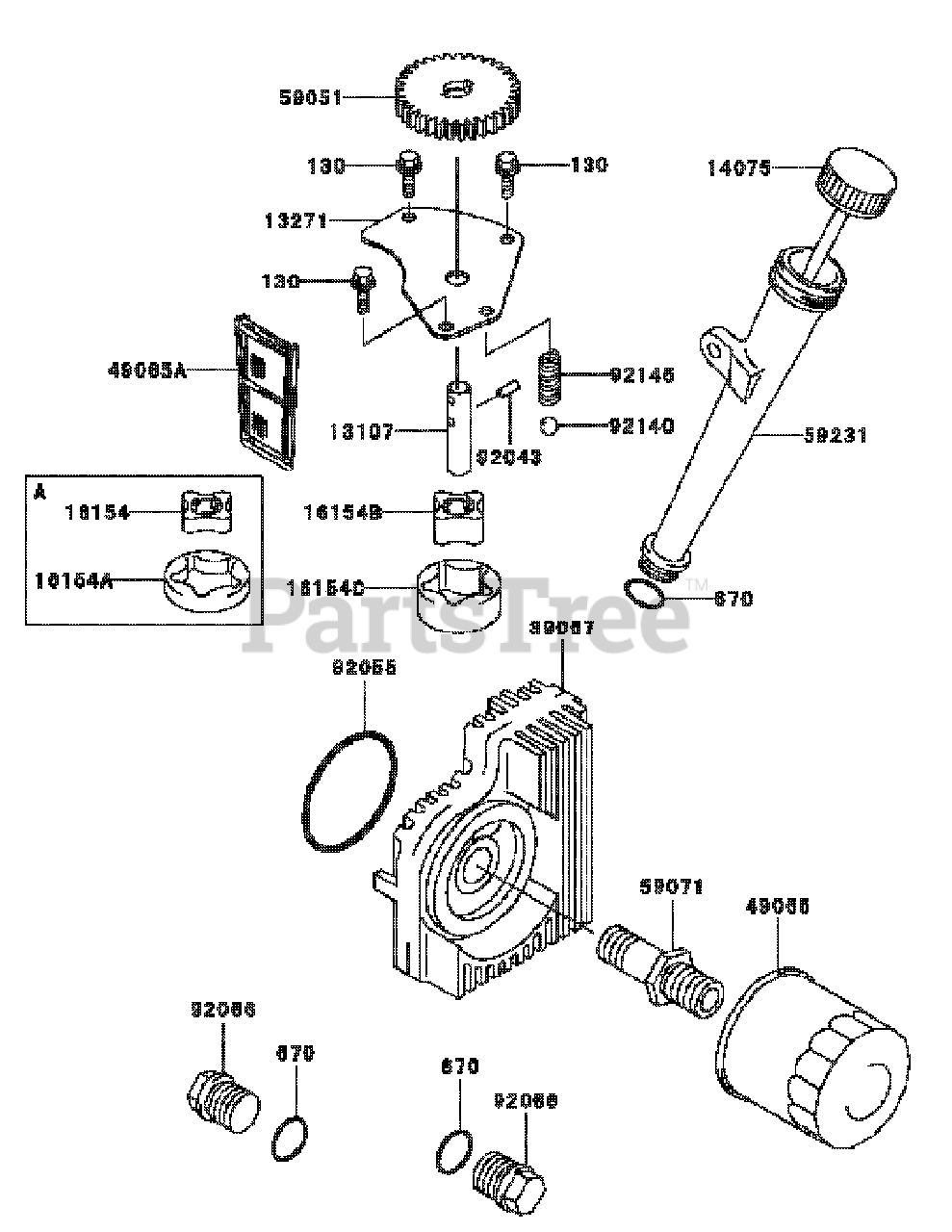

Kawasaki FH721V-BS24 Lubrication Equipment Parts Diagram

  • Title

130

Cub Cadet KM-130BA0612

BOLT-FLANGED, 6X12

$1.99

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7009

SHAFT
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 2 left!

0

13271

Cub Cadet KM-13271-7005

PLATE

$3.99

$

Usually ships in 2-5 days

0

14075

Cub Cadet KM-14075-7008

CAP-ASSY

$11.99

$

In Stock, only 1 left!

0

16154B

Cub Cadet KM-16154-7007

ROTOR-PUMP, IN

$8.49

$

In Stock, Qty 6

0

16154C

Cub Cadet KM-16154-7008

ROTOR-PUMP, OUT

$19.99

$

In Stock, only 3 left!

0

39067

Cub Cadet KM-39067-7002

COOLER-OIL
(Superseded to KM-39067-7008)

$87.99

$

Usually ships in 2-5 days

0

49065

Cub Cadet KM-49065-2078

FILTER-OIL
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

49065A

Cub Cadet KM-49065-7003

FILTER-OIL SCREEN

$3.99

$

In Stock, Qty 15

0

59051

Cub Cadet KM-59051-7011

GEAR-SPUR

$65.99

$

In Stock, only 1 left!

0

59071

Cub Cadet KM-59071-7009

JOINT
(Superseded to KM-59071-0721)

$

$

Not available

59231

Cub Cadet KM-59231-7006

FILLER

$7.49

$

In Stock, Qty 13

0

670

Cub Cadet KM-670D2016

O RING,16MM

$1.99

$

In Stock, Qty 20+

0

92043

Cub Cadet KM-92043-7003

PIN
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 12

0

92055

Cub Cadet KM-92055-7006

RING-O,ID=58

$2.49

$

In Stock, Qty 12

0

92066

Cub Cadet KM-92066-7003

PLUG
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 8

0

92140

Cub Cadet KM-92140-7003

BALL

$1.49

$

In Stock, Qty 11

0

92145

Cub Cadet KM-92145-7002

SPRING

$

$

Not available
