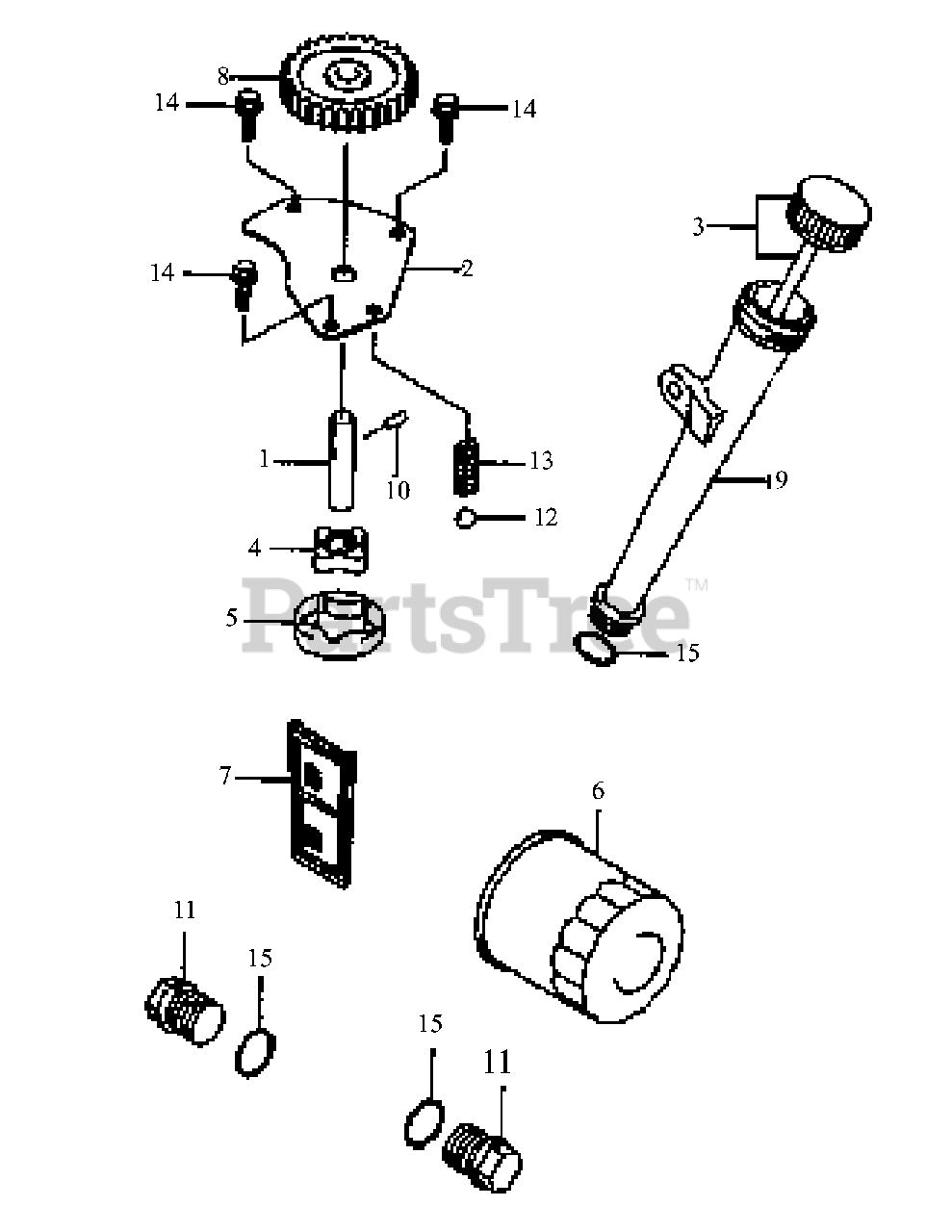

M54-KW (53AB5DBW150) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki FH680V-AS01 Lubrication Equipment Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

FH680V-AS01 Lubrication Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-2099

Shaft, Oil Pump
(Superseded to KM-13107-2296)

$12.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-13271-7005

Plate

$3.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-14075-7008

Cap-Assembly

$11.99

$

In Stock, Qty 14

0

4

Cub Cadet KM-16154-2053

Rotor-Pump In

$12.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-16154-2054

Rotor-Pump Out

$9.49

$

In Stock, only 2 left!

0

6

Cub Cadet KM-49065-7010

Filter-Oil
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-49065-7003

Filter-Oil Screen

$3.99

$

In Stock, Qty 14

0

8

Cub Cadet KM-59051-7004

Gear-Spur
(Superseded to KM-59051-6001)

$

$

Not available

9

Cub Cadet KM-59231-7006

Filler Tube

$7.49

$

In Stock, Qty 12

0

10

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 11

0

11

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

13

Cub Cadet KM-92145-7002

Spring

$

$

Not available

14

Cub Cadet KM-130BA0612

Bolt-Flange

$1.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-670D2016

O-Ring

$1.99

$

In Stock, Qty 20+

0
