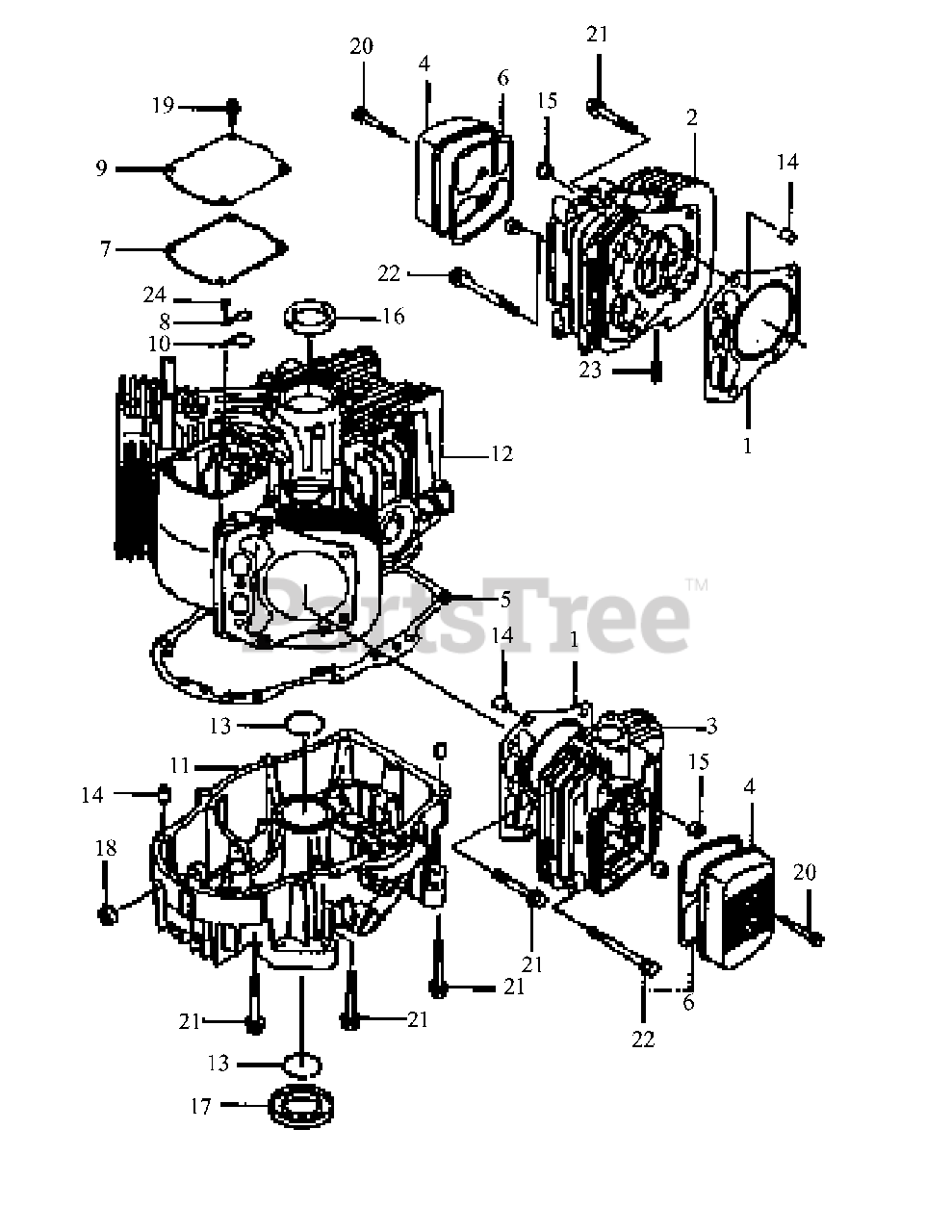

M54-KW (53AB5DBW150) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki FH680V-AS01 Cylinder & Crankcase Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

FH680V-AS01 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7006

Gasket-Head

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11008-7024

Head-Cylinder # 1

$277.99

$

In Stock, Qty 7

0

3

Cub Cadet KM-11008-7004

Head-Cylinder # 2

Note: NLA

$

$

Not available

4

Cub Cadet KM-11022-7029

Case-Rocker
(Superseded to KM-11022-0728)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11061-7098

Gasket, Crankcase

$48.99

$

In Stock, Qty 16

0

6

Cub Cadet KM-11060-7013

Gasket-Rocker Cover

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11060-7014

Gasket-Breather

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet KM-13271-7006

Plate

$1.49

$

In Stock, Qty 20+

0

9

Cub Cadet KM-14091-7004

Cover

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet KM-16126-7001

Valve

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-49015-6255

Cover-Crankcase
(Superseded to KM-99999-7059)

$218.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-49120-6122

Crankcase

Note: NLA

$

$

Not available

13

Cub Cadet KM-92033-7004

Ring, Snap

$0.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92049-7001

Seal- Oil

$8.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92049-7010

Seal-Oil

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7011

Seal-Oil

$5.99

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92049-7019

Seal-Oil

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-130BA0612

Bolt-Flange

$1.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-130BA0640

Bolt-Flange

$1.49

$

In Stock, only 1 left!

0

21

Cub Cadet KM-130CA0850

Bolt-Flange

$1.99

$

In Stock, Qty 16

0

22

Cub Cadet KM-130CA0875

Bolt-Flange

$2.49

$

In Stock, Qty 9

0

23

Cub Cadet KM-172BA0818

Bolt-Stud

$1.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-214AA0408

Screw-Pan

$3.99

$

In Stock, Qty 15

0

Cub Cadet 01008523P

Replacement Engine

Note: (NLA) (not shown)

$

$

Not available
