M54-KW (53AB5DBW150) - Cub Cadet 54" Tank Zero-Turn Mower, 23hp Kawasaki Drive Assembly Parts Diagram

54" Tank Zero-Turn Mower, 23hp Kawasaki

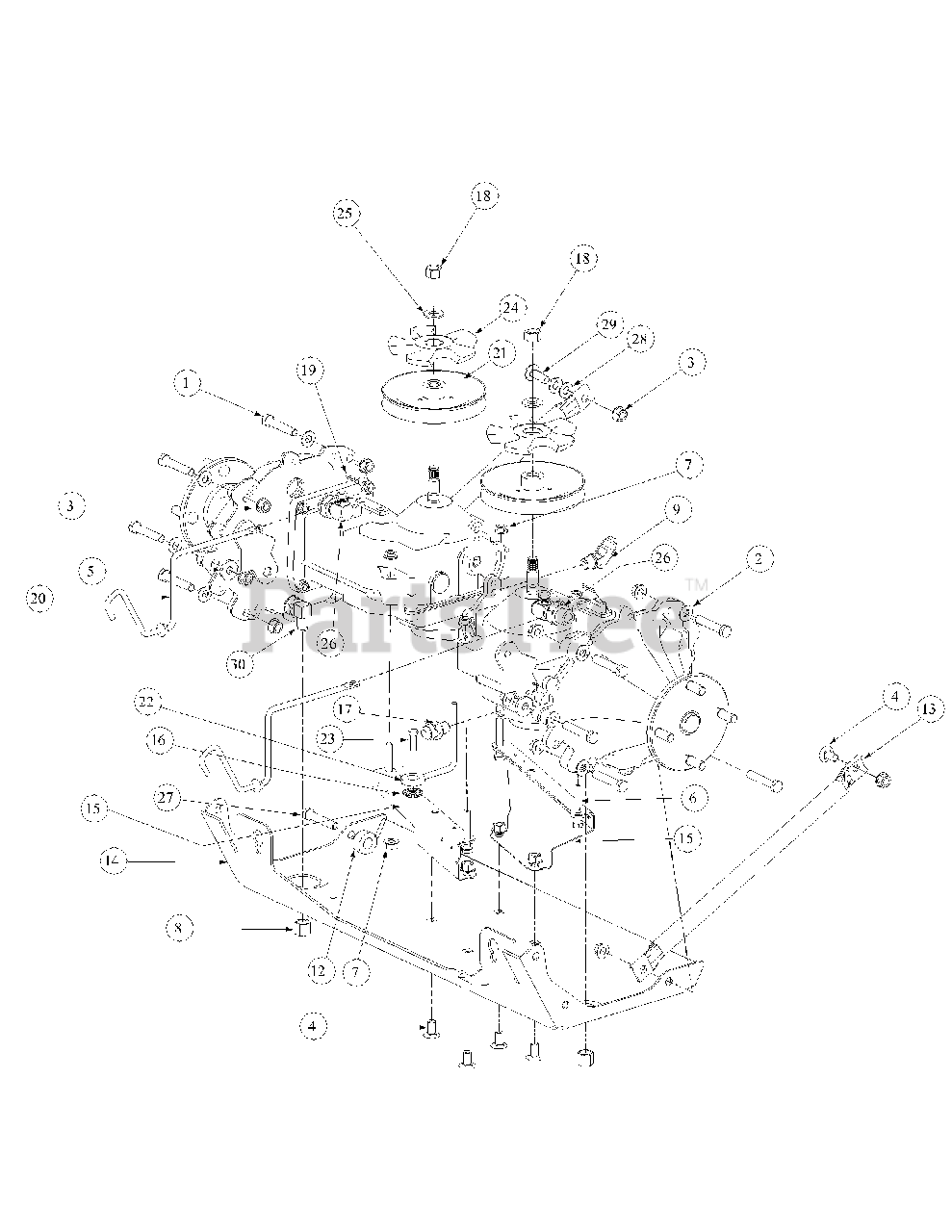

Drive Assembly Parts Diagram

  • Title
1

Cub Cadet 00002528

HHCS, 3/8-16, 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00012158

Flat Washer, 3/8, SAE

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16, Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 OD x .13

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet 00013198

HHCS, 5/16-18, 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 01001623

Nut, Cap, 3/8

$

$

Not available

9

Cub Cadet 01001975

Elbow Fitting, 3/8-1/2, 45 degree

$

$

Not available

12

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

13

$

$

Not available

14

Cub Cadet 01001620

Plate Assembly, Skid

$

$

Not available

15

Cub Cadet 01006165

Bracket Assembly, Support Pump

$

$

Not available

16

Cub Cadet 01005851

External Tooth Washer
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01002606

Fitting Connector, 1/2 x 3/8

$

$

Not available

18

Cub Cadet 01005191

Nut, 1/2-20, Hex Insert Lock Jam

$

$

Not available

19

Cub Cadet 914-0104

Hair Pin, .0721 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01003268

Rod, Release, Pump

$

$

Not available

21

Cub Cadet 01003732

Pulley, Transmission Hydro, Slotted

$

$

Not available

22

Cub Cadet 01005114

Guide, Traction Drive Belt

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01005852

Flat Head Screw, 5/16-18 x 1.00

Note: NLA

$

$

Not available

24

Cub Cadet 01005339

Hydro Pulley Fan
(Superseded to 17199-0637)

$90.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 00011459

1/2" Flat Washer

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01004542

Fitting Elbow, 1/2 x 3/8

$36.99

$

In Stock, only 1 left!

0

27

Cub Cadet 00011861

Hex Cap Screw, 3/8-16, 2.50
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

28

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

30

Cub Cadet 01002602

Fitting Elbow, 3/8 x 3/8

$

$

Not available
