M54-KH (53BH8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 27hp Kohler (2011 & After) Kohler CV740-3125 Ignition & Charging Parts Diagram

54" Tank Zero-Turn Mower, 27hp Kohler

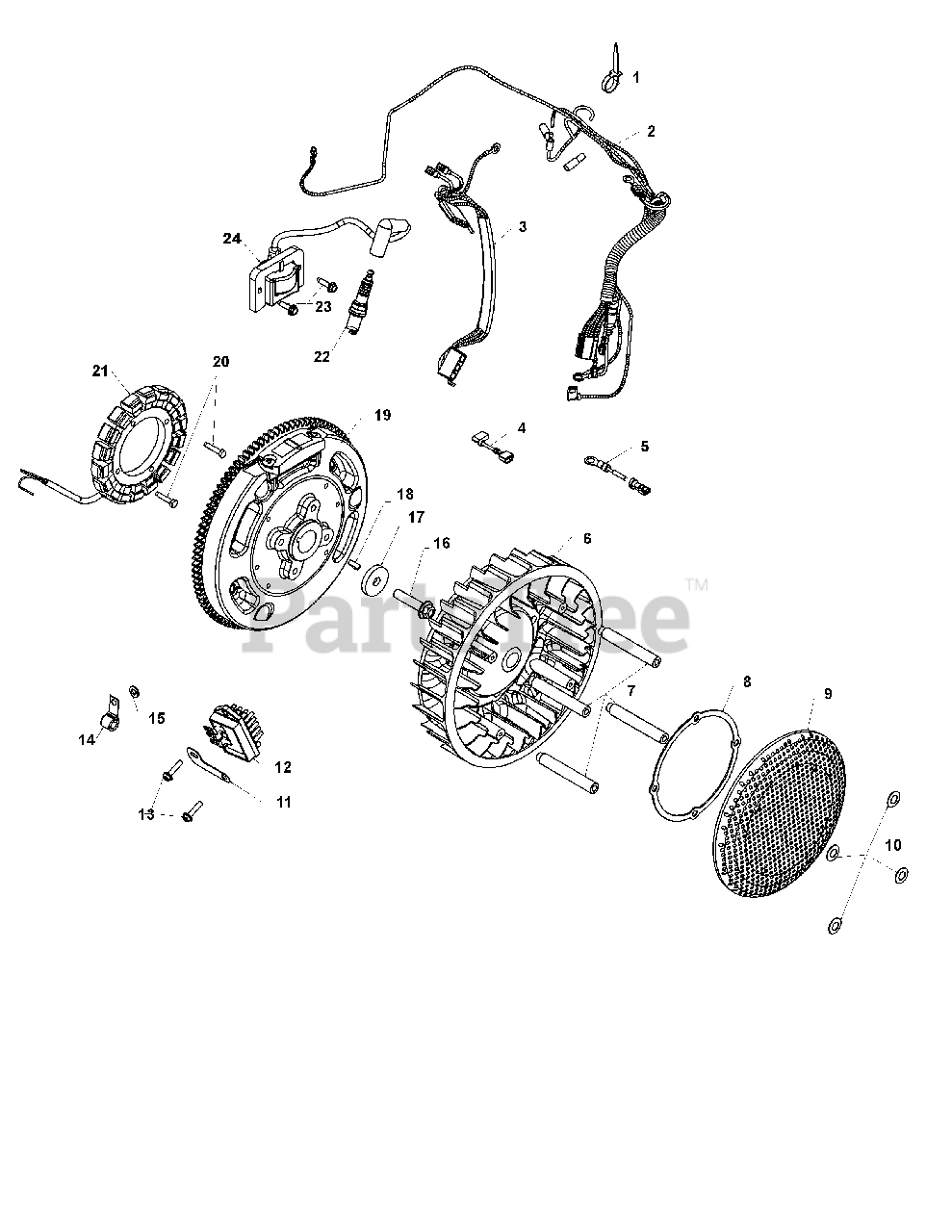

Kohler CV740-3125 Ignition & Charging Parts Diagram

  • Title

1

Cub Cadet KH-25-454-07-S

Tie

$2.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-176-150-S

Harness, Wiring Assembly

$44.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-176-130-S

Harness, Dsai Wiring

$33.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-518-09

Lead, Oil Sentry

$

$

Not available

5

Cub Cadet KH-25-518-34-S

Lead, 20/25 Amp B+

$6.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-112-14

Spacer

$

$

Not available

8

Cub Cadet KH-24-141-06

Ring, Support
(Superseded to KH-25-141-08-S)

$5.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-24-162-41-S

Screen, Grass

$24.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-468-11

Washer, Spring 10 Mm

$

$

Not available

11

Cub Cadet KH-24-126-137-S

Bracket, Ground Strap
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-403-21-S

Regulator, Rectifier
(Superseded to KH-25-403-39-S)

$85.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-086-157-S

Screw, Hex Flange Hi-Lo

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-235173

Clip, Cable

$

$

Not available

15

Cub Cadet KH-X-25-63

Washer, Flat 1/4'' (O.D. 1/2'')

$

$

Not available

16

Cub Cadet KH-12-086-14

Screw, Flg M10X1.5X45
(Superseded to KH-25-086-361-S)

$3.99

$

In Stock, Qty 12

0

17

Cub Cadet KH-12-468-03

Washer, Flat 13/32''

$

$

Not available

18

Cub Cadet KH-X-42-15

Key, 3/16'' X 5/8''

$

$

Not available

19

Cub Cadet KH-24-025-58-S

Flywheel Assembly (Lw)

$

$

Not available

20

Cub Cadet KH-M-548025-S

Screw, Thd Frm M5X0.8X25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-237878

Kit, 15 / 20 Amp Stator

$149.99

$

In Stock, Qty 8

0

22

Cub Cadet 759-3336

Plug, Spark (Std)
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet KH-M-545020-S

Screw, Flg Thd Frm M5X.8X20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

24

Cub Cadet KH-24-584-63-S

Module, Spark Adv (Dsai) Assy

$

$

Not available

Cub Cadet KH-25-086-43

Screw, Skt Set #10-24X1/4''

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-M-603100

Screw, Cap M6X1.0X99.5

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-X-25-53

Washer, Flat 1/4'' (O.D. 5/8'')

Note: Not Illustrated

$

$

Not available

Cub Cadet KH-210281-S

Clip

Note: Not Illustrated

$7.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-79

Kit, Chopper Screen

Note: (Includes 7, 8, 9, KH-41-037-10-S, KH-25-086-27-S,KH-M-603100-S, KH-M-629122-S, KH-X-25-53-S) not shown

$

$

Not available
