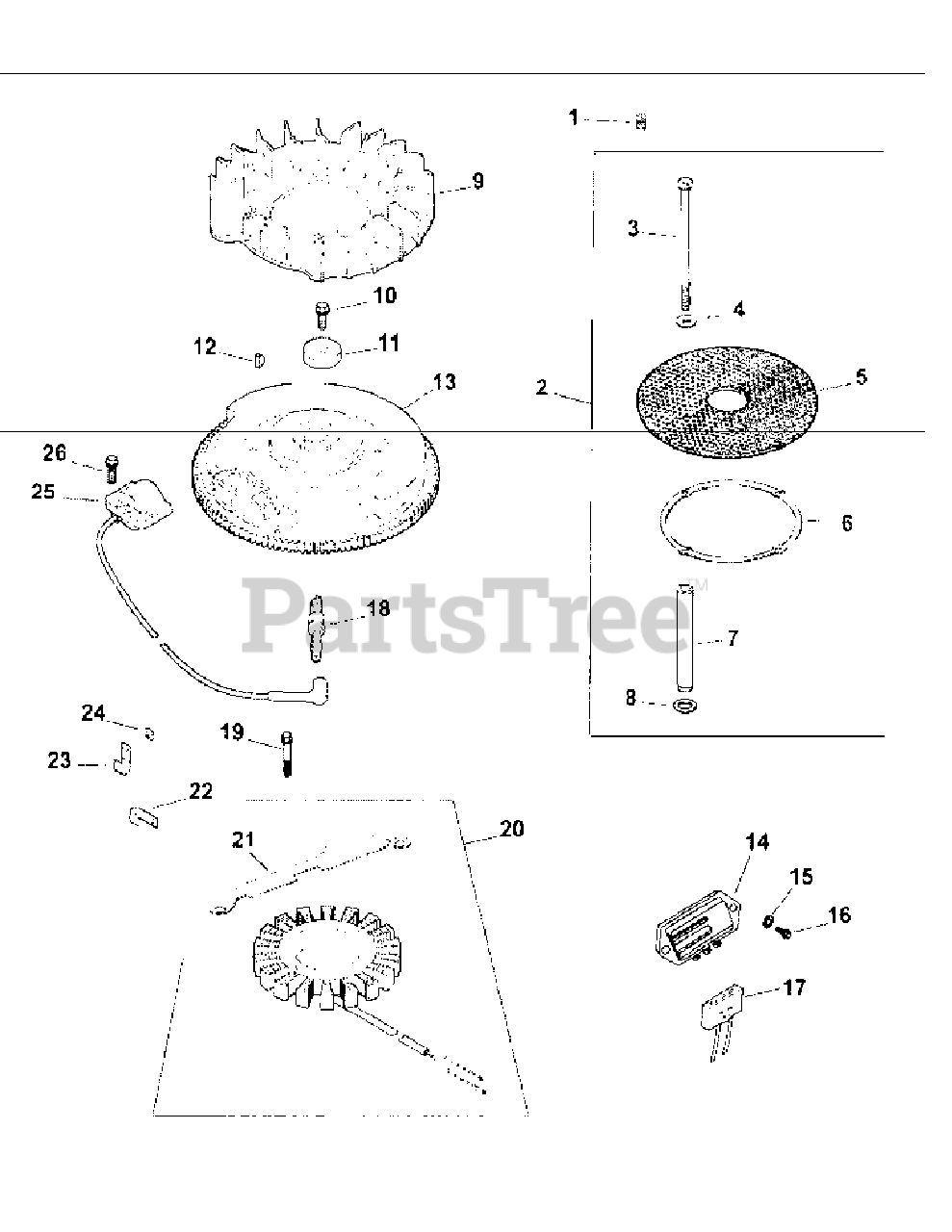

M54-KH (53BB5B8W750) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kohler CV730-0025 Ignition & Electrical Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kohler

CV730-0025 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-25-086-43

Set Screw

$

$

Not available

2

Cub Cadet KH-24-755-79

Chopper Screen Kit

$

$

Not available

3

Cub Cadet KH-M-603100

Hex Head Screw

$

$

Not available

4

Cub Cadet KH-X-25-53

Plain Washer

$

$

Not available

5

Cub Cadet KH-24-162-41-S

Grass Screen

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-141-06

Support Ring
(Superseded to KH-25-141-08-S)

$5.49

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-112-14

Grass Screen Spacer

$

$

Not available

8

Cub Cadet KH-24-468-11

Spring Washer

$

$

Not available

9

Cub Cadet KH-24-157-08-S

Fan
(Superseded to KH-24-755-253-S)

$46.99

$

In Stock, Qty 5

0

10

Cub Cadet KH-25-086-361-S

Hex Flange Screw

$3.99

$

In Stock, Qty 12

0

11

Cub Cadet KH-12-468-03

Plain Washer

$

$

Not available

12

Cub Cadet KH-X-42-15

Key

$

$

Not available

13

Cub Cadet KH-24-025-55-S

Flywheel

$

$

Not available

14

Cub Cadet KH-41-403-10-S

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$

$

Not available

15

Cub Cadet KH-X-25-92

Plain Washer

$

$

Not available

16

Cub Cadet KH-24-086-18

Phillips Screw

$

$

Not available

17

Cub Cadet KH-25-155-41-S

Connector

$24.99

$

In Stock, only 1 left!

0

18

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.49

$

In Stock, Qty 20+

0

19

Cub Cadet KH-M-548025-S

Hex Cap Screw
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

20

Cub Cadet KH-237878

Stator Kit

$149.99

$

In Stock, Qty 15

0

21

Cub Cadet KH-24-126-139-S

Stator Wire Bracket

$15.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-235173

Cable Clip

$

$

Not available

23

Cub Cadet KH-48-154-02

Cable Clip

$

$

Not available

24

Cub Cadet KH-X-25-63

Plain Washer

$

$

Not available

25

Cub Cadet KH-24-584-36-S

Ignition Coil

$102.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-M-545020-S

Hex Flange Screw
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

Note: (not shown)

$4.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-150-S

Wiring Harness

Note: (not shown)

$44.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-176-41

Wiring Harness

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-468-07-S

Flat Washer

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-518-09

Green Lead

Note: (not shown)

$

$

Not available

Cub Cadet KH-25-518-34-S

Violet Lead

Note: (not shown)

$6.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-41-037-10-S

Service Nameplate

Note: (not shown)

$8.99

$

In Stock, only 4 left!

0

Cub Cadet KH-25-454-03-S

Wire Tie

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0
