M54-KH (53BB5B8W750) - Cub Cadet 54" Tank Zero-Turn Mower, 25hp Kohler CV730-0025 Fuel System Parts Diagram

54" Tank Zero-Turn Mower, 25hp Kohler

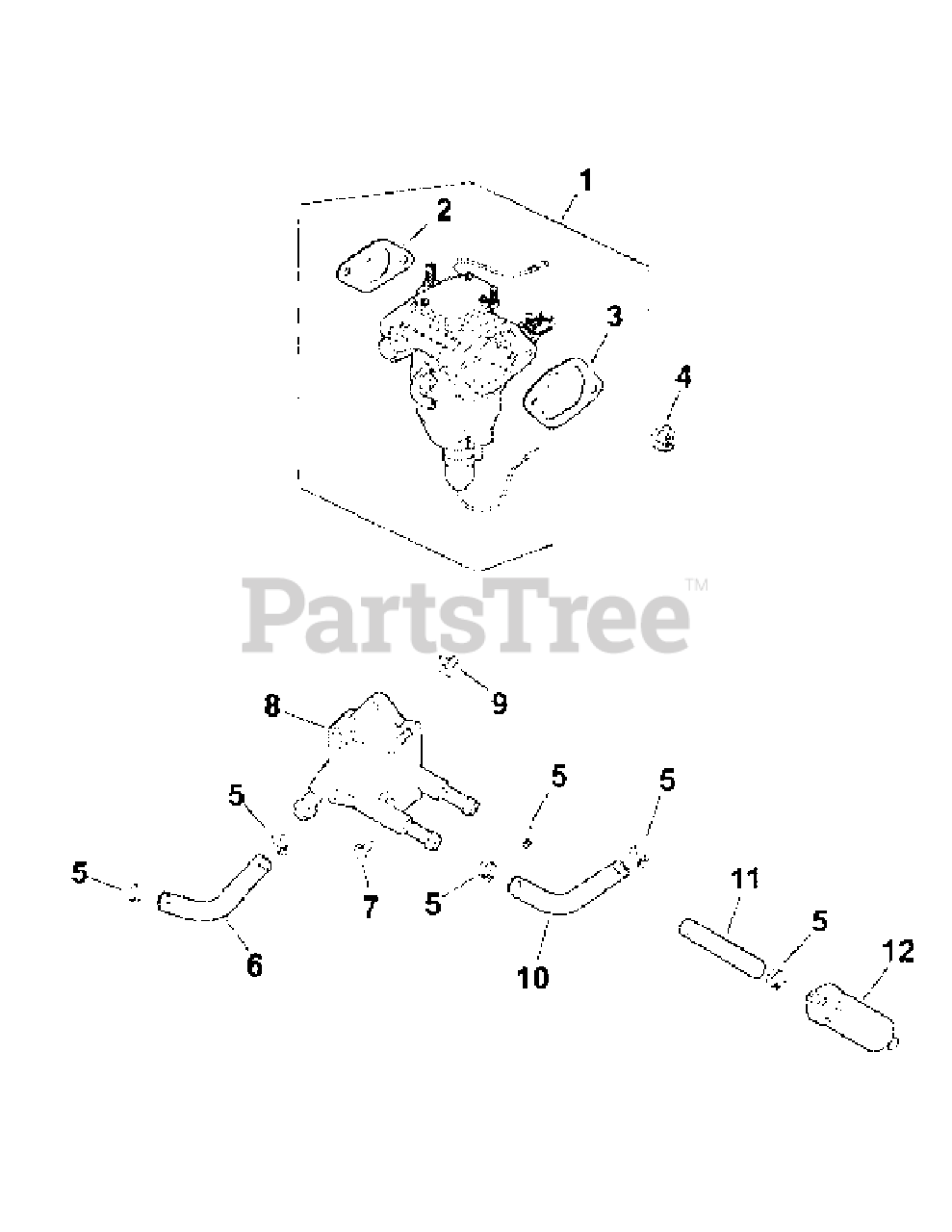

CV730-0025 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-92-S

Carburetor Kit
(Superseded to KH-24-853-317-S)

$708.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-15

Carburetor Gasket

$

$

Not available

3

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

4

Cub Cadet KH-M-641060-S

Hex Flange Nut

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-25-237-31-S

Hose Clamp

$4.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-353-12

Fuel Line 11"

$

$

Not available

7

Cub Cadet KH-24-086-12

Hex Cap Screw

$

$

Not available

8

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

9

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, Qty 7

0

10

Cub Cadet KH-25-353-01

Fuel Line 13"

Note: NLA

$

$

Not available

11

Cub Cadet KH-25-353-15

Fuel Line 3.5"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

12

Cub Cadet KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-431-01-S

Insulating Sleeve 8"
(Superseded to KH-24-431-02-S)

Note: (not shown)

$6.49

$

In Stock, only 1 left!

0

Cub Cadet KH-24-234-02-S

Float Chamber

Note: NLA (not shown)

$137.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-18-S

Overhaul Kit

Note: (not shown)

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Choke Repair Kit

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-757-20

Gasket Kit

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-757-21-S

Accelerator Pump Kit

Note: (not shown)

$120.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-22

Solenoid Replacement Kit

Note: (not shown)

$

$

Not available
