M54-KH (53AH8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 27hp Kohler (2010) Fabricated Deck Spindle Assembly 54-Inch Parts Diagram

54" Tank Zero-Turn Mower, 27hp Kohler

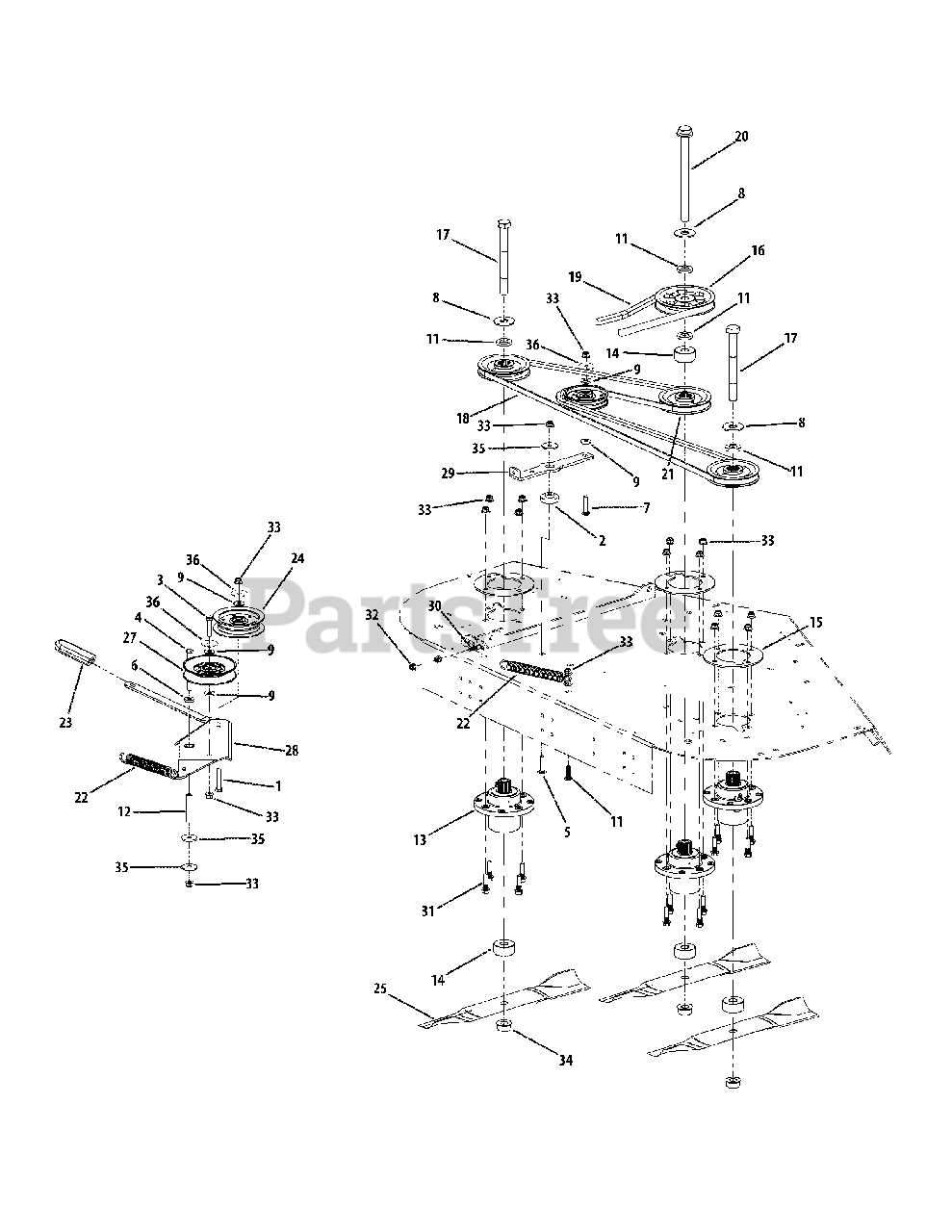

Fabricated Deck Spindle Assembly 54-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 738-04376

Shoulder Screw, .854 x .280

$9.99

$

In Stock, only 3 left!

0

3

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

4

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

5

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

7

Cub Cadet 00014270

Carriage Bolt, 3/8-16, 2.00
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-3014

Flat Washer, .781 ID, 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1-1/4

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 01003123

Spacer, .812 ID x .218 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet 01003532P

Spindle Ass’y, Aluminum Fab Deck
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 12

0

14

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 1.1

$40.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004478-0637

Plate Support, Cast Alumn. Spindle
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01005203

V Pulley, 5.774 OD

$132.99

$

In Stock, Qty 5

0

17

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 1 left!

0

18

Cub Cadet 01005375

V Belt, A Section x 114.3
(Superseded to 01005375P)

$60.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01005377

V Belt, B Section x 91.2
(Superseded to 01005377P)

$85.99

$

In Stock, Qty 8

0

20

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

21

Cub Cadet 01005616

V Pulley, 5.00 OD

$

$

Not available

22

Cub Cadet 02003712

Spring Extension, .94 OD x 7.57
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

23

Cub Cadet 02003740

Idler Tension Handle Grip

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02004447

Idler Pulley, 4.06 OD w/Deep Flange

$57.99

$

In Stock, Qty 20+

0

25

Cub Cadet 02005018

Hi-Lift Blade, 19.0, 0.756
(Superseded to 942-04416)

$28.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02005077

Idler Pulley, 4.06 Dia.

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02005079

Idler Pulley, 5.06 Dia.
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

28

Cub Cadet 02005509P

Idler Arm Assembly includes:

$100.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

29

Cub Cadet 703-07010

Idler Arm

$19.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

31

Cub Cadet 710-04829

Bolt, 3/8-16 x 1.5

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-04063

Nut, 5/16-18, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04065

Nut, 3/8-16, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0227

Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

36

Cub Cadet 736-3040

Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0
