M54-KH (53AH8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 27hp Kohler (2010) Fabricated Deck Assembly 54-Inch Parts Diagram

54" Tank Zero-Turn Mower, 27hp Kohler

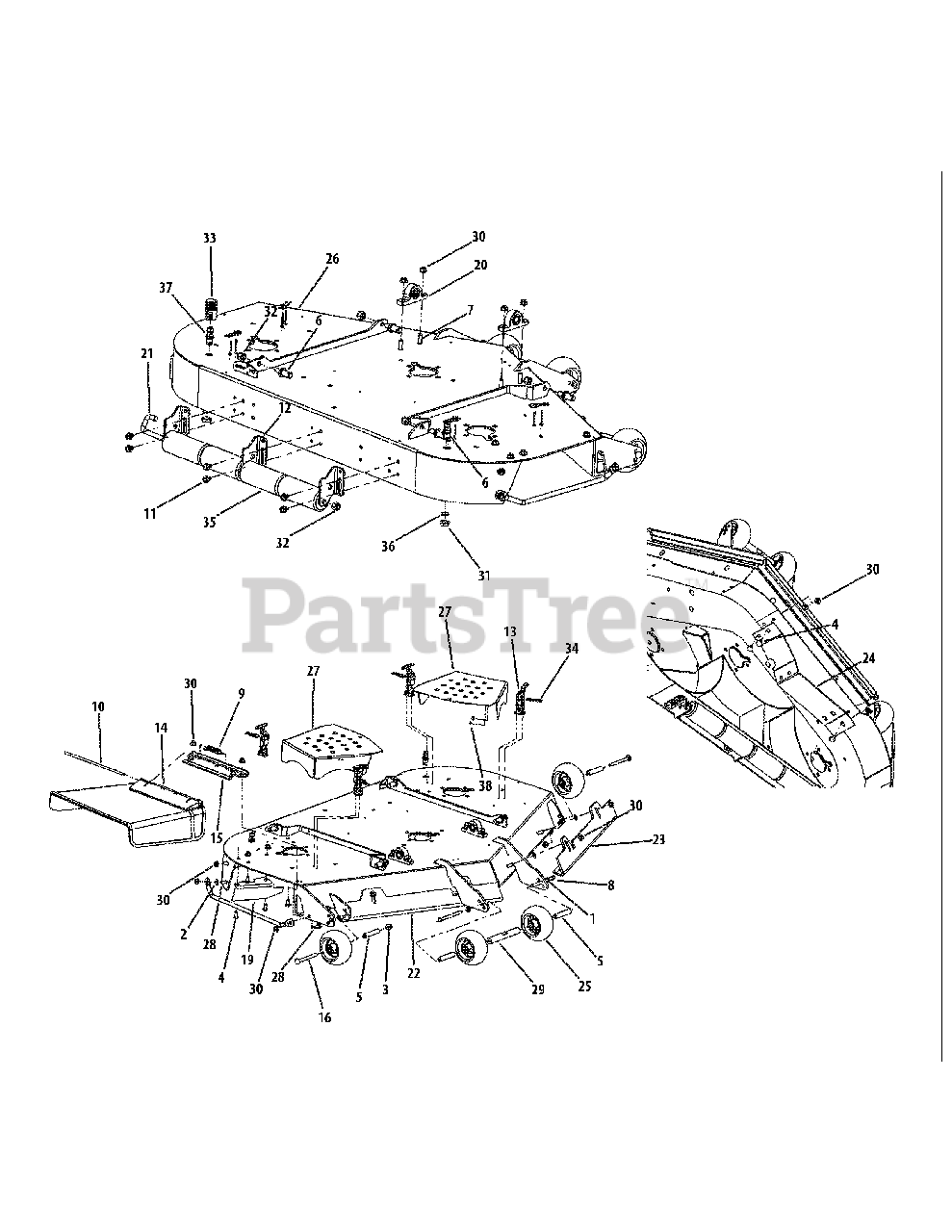

Fabricated Deck Assembly 54-Inch Parts Diagram

  • Title

1

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg.

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01001745

Pin, 5/8 Dia. x 1.2 Lg.
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

7

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet 710-0944

Hex Cap Screw, 3/8-16 x 4.50

$10.99

$

In Stock, Qty 14

0

9

Cub Cadet 732-04797

Spring Torsion, 0.4 ID x 2.16 LG

$11.99

$

In Stock, only 4 left!

0

10

Cub Cadet 747-3384

Defllector Chute Rod

$27.99

$

In Stock, only 1 left!

0

11

Cub Cadet 01004304

Hex Index Washer Screw, 3/8-16, .5
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

12

Cub Cadet 01004707-4021

Roller Mount Bracket

$23.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01005869P

T-Handle Draw Latch
(Superseded to 935-04038)

$15.99

$

In Stock, Qty 14

0

14

Cub Cadet 01006693P

Deflector Chute

$68.99

$

In Stock, Qty 8

0

15

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

17

Cub Cadet 01008225

Push Retainer
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 01008644

Finger Guard

$36.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01009296-0637

Chute Baffle

$49.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02000109

Pillow Block

$126.99

$

In Stock, only 3 left!

0

21

Cub Cadet 02002799

J-Hook w/ Threaded Roller
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02005106-4021

Right Hand Front Adjustment Skirt

$

$

Not available

23

Cub Cadet 02005107-4021

Left Hand Front Adjustment Skirt

$

$

Not available

24

Cub Cadet 02005693-0637

Baffle, 54" Adjustment
(Superseded to 703-26732-0637)

$36.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia.

$34.99

$

In Stock, Qty 20+

0

26

Cub Cadet 980-00041-0637

54" Deck Assembly

$

$

Not available

27

Cub Cadet 703-06871-4021

Deck Belt Cover

$

$

Not available

28

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 711-05159

Ball Wheel Mounting Shaft

$33.99

$

In Stock, only 3 left!

0

30

Cub Cadet 712-04065

Lock Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

32

Cub Cadet 712-3083

Lock Nut, Nylon Insert, 1/2-13

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

34

Cub Cadet 00017778

Phillips Head Screw, 10-32

$4.99

$

In Stock, only 2 left!

0

35

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

37

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

38

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0
