M54-KH (53AH8CT4050) - Cub Cadet 54" Tank Zero-Turn Mower, 27hp Kohler (2009 & Before) Hydraulic Pump RH Parts Diagram

54" Tank Zero-Turn Mower, 27hp Kohler

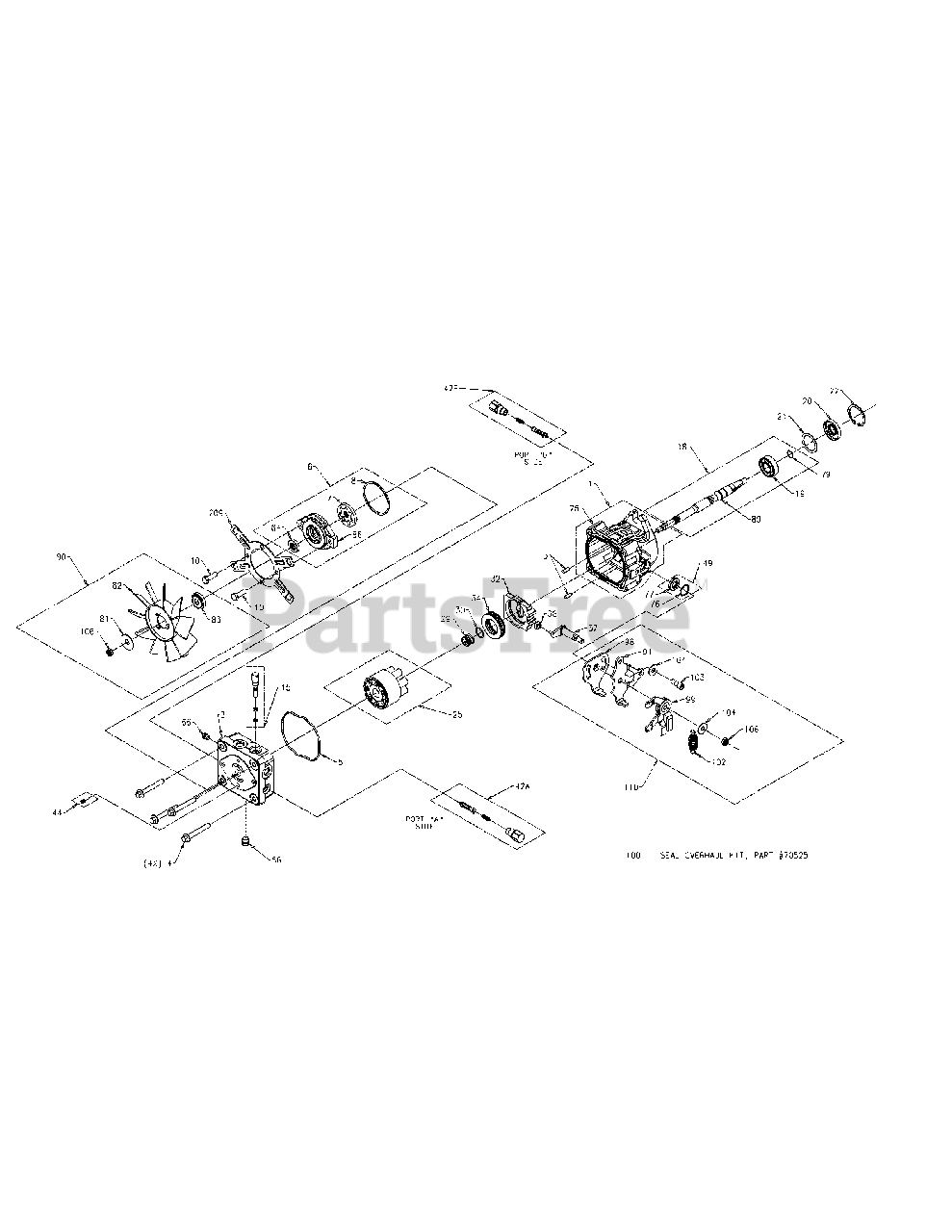

Hydraulic Pump RH Parts Diagram

  • Title

1

Cub Cadet HG-70797

Kit, Housing
(Superseded to HG-71717)

$114.99

$

Usually ships in 3-6 days

0

2

Cub Cadet HG-52038

Kit, Endcap

$

$

Not available

3

Cub Cadet HG-50641

Straight Headless Pin

$6.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-50969

Hex Flange Bolt M8-1.25 x 60mm Long

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet HG-52629

Housing, O-Ring
(Superseded to HG-54022)

$7.99

$

Usually ships in 3-6 days

0

5

Cub Cadet n/a

O-Ring, Housing

$

$

Currently unavailable

6

Cub Cadet HG-71247

Kit, Charge Pump (STD CHG .19 ci/rev, Thru)

$464.99

$

Usually ships in 3-6 days

0

7

Cub Cadet n/a

Gerotor

$

$

Currently unavailable

8

Cub Cadet n/a

O-Ring

$

$

Currently unavailable

8

Cub Cadet n/a

O-Ring

$

$

Currently unavailable

10

Cub Cadet HG-9007200-3116

Screw, 5/16-18 x 1.00 Long
(Superseded to HG-72254)

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet HG-71248

Kit, Bypass Valve

$

$

Not available

18

Cub Cadet HG-71252

Kit, Pump Shaft (15mm Tapered Keyed Thru)

$317.99

$

Usually ships in 3-6 days

0

19

Cub Cadet n/a

Bearing, Ball 17 x 40 x 12

$

$

Currently unavailable

20

Cub Cadet HG-51161

Lip Seal 17 x 40 x 7 PTC

$11.99

$

Usually ships in 3-6 days

0

20

Cub Cadet n/a

Seal, Lip 17 x 40 x 7

$

$

Currently unavailable

21

Cub Cadet HG-50951

Spacer

$4.49

$

Usually ships in 3-6 days

0

22

Cub Cadet HG-50329

Retaining Ring

$11.99

$

Usually ships in 3-6 days

0

22

Cub Cadet n/a

Ring, Retaining

$

$

Currently unavailable

25

Cub Cadet HG-71971

Cylinder Block Kit

$99.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-2003014

Block Spring

$4.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-2003017

Block Thrust Washer

$4.49

$

Usually ships in 3-6 days

0

32

Cub Cadet HG-2003087

Swashplate

$220.99

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-50551P

Ball Thrust Bearing

$29.99

$

Usually ships in 3-6 days

0

37

Cub Cadet HG-50807

Arm, Trunnion Tapered Square

$

$

Not available

38

Cub Cadet HG-2000015

Slot Guide

$21.99

$

Usually ships in 3-6 days

0

42A

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$83.99

$

Usually ships in 3-6 days

0

42B

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$83.99

$

Usually ships in 3-6 days

0

44

Cub Cadet HG-70402

Charge Relief Kit, (1/4 Plastic Ball & 2000029 Spring)

$7.99

$

Usually ships in 3-6 days

0

49

Cub Cadet HG-2513043

Trunnion Seal / Retainer Kit

$12.99

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-9005110-4400

Plug - 7/16-18 Steel (Diagnostic)

$

$

Not available

66

Cub Cadet n/a

Plug 9/16-18 (Metal)

$

$

Currently unavailable

76

Cub Cadet n/a

Ring, Ret. -Star Wash 1.0

$

$

Currently unavailable

76

Cub Cadet n/a

Ring, Retaining

$

$

Currently unavailable

77

Cub Cadet n/a

Seal, Lip 12 x 25 x 5

$

$

Currently unavailable

77

Cub Cadet n/a

Seal, Lip 12 x 25 x 5

$

$

Currently unavailable

78

Cub Cadet n/a

Housing, Pump

$

$

Currently unavailable

79

Cub Cadet n/a

Ring, Ret. Wire .561 I.D.

$

$

Currently unavailable

81

Cub Cadet n/a

Washer, O.D. Slotted .40 x 1.55 x .06

$

$

Currently unavailable

82

Cub Cadet n/a

Fan, 6", 10 Blade

$

$

Currently unavailable

83

Cub Cadet n/a

Fan Hub

$

$

Currently unavailable

84

Cub Cadet n/a

Seal

$

$

Currently unavailable

86

Cub Cadet n/a

Housing, Charge Pump

$

$

Currently unavailable

89

Cub Cadet n/a

Shaft, Input Tapered Keyed

$

$

Currently unavailable

90

Cub Cadet HG-71172

Kit, Fan

$36.99

$

Usually ships in 3-6 days

0

94

Cub Cadet n/a

Arm, Control

$

$

Currently unavailable

98

Cub Cadet n/a

Arm, RTN

$

$

Currently unavailable

99

Cub Cadet n/a

Assembly, RTN Bi-Directional

$

$

Currently unavailable

100

Cub Cadet HG-70525

Overhaul Seal Kit

$58.99

$

Usually ships in 3-6 days

0

102

Cub Cadet n/a

Spring, Extension (STD)

$

$

Currently unavailable

103

Cub Cadet n/a

Screw, 5/16-24 x .75 (Patch)

$

$

Currently unavailable

104

Cub Cadet n/a

Washer

$

$

Currently unavailable

104

Cub Cadet n/a

Washer

$

$

Currently unavailable

106

Cub Cadet n/a

Nut, Lock, Side 5/16-24UNF-2B

$

$

Currently unavailable

106

Cub Cadet n/a

Nut, Lock, Side 5/16-24UNF-2B

$

$

Currently unavailable

110

Cub Cadet HG-70794

Kit, RTN

$67.99

$

Usually ships in 3-6 days

0

209

Cub Cadet HG-52016

Bracket, Shroud
(Superseded to HG-55412)

$7.99

$

Usually ships in 3-6 days

0

209

Cub Cadet HG-52016

Bracket, Shroud
(Superseded to HG-55412)

$7.99

$

Usually ships in 3-6 days

0

42A

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$83.99

$

Usually ships in 3-6 days

0

42B

Cub Cadet HG-70743

Kit, Shock Valve (200 Bar, .031 Orifice)

$83.99

$

Usually ships in 3-6 days

0
