M54-HN (53AB5ETW150) - Cub Cadet 54" Tank Zero-Turn Mower, 24hp Honda (2003 1/2) GXV670 Carburetor Parts Diagram

54" Tank Zero-Turn Mower, 24hp Honda

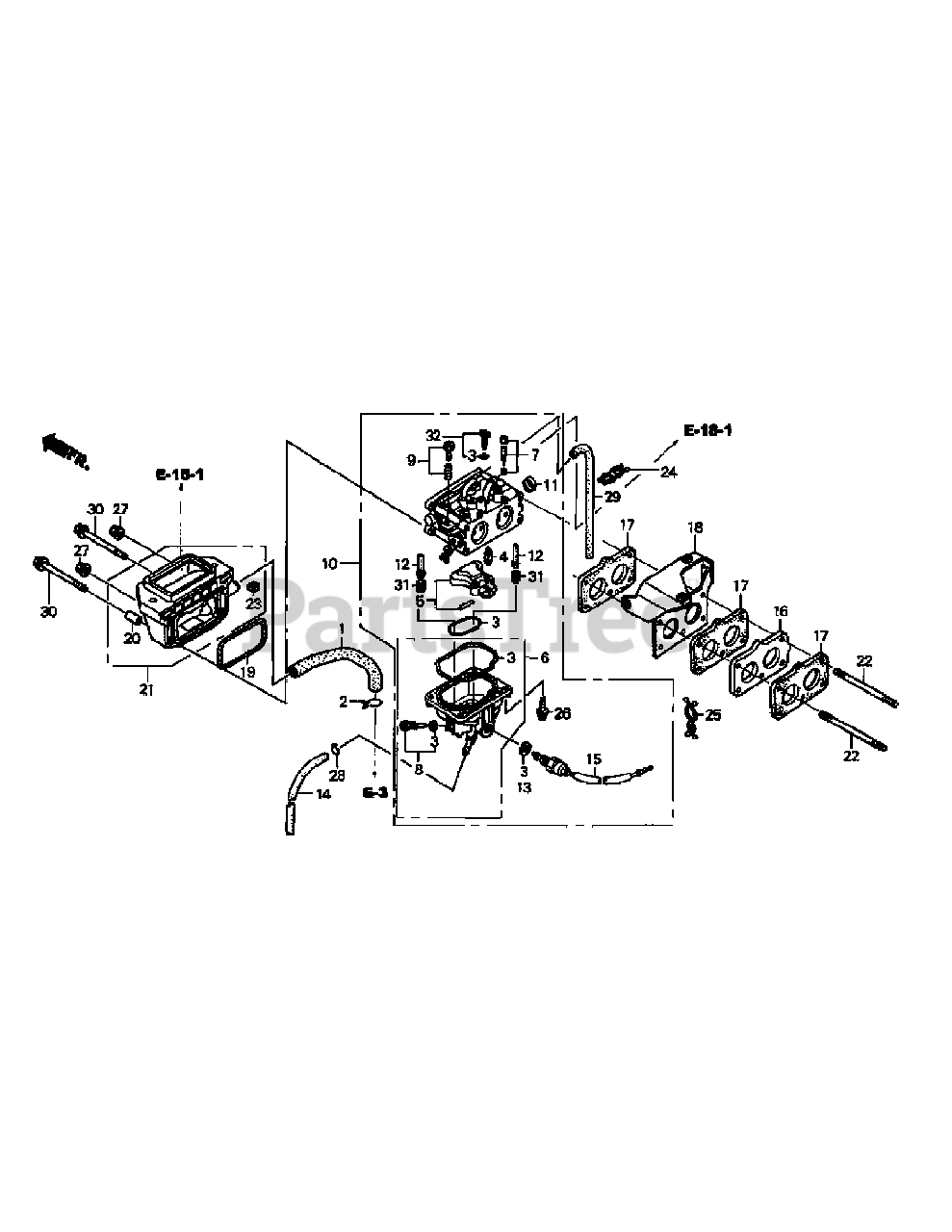

GXV670 Carburetor Parts Diagram

  • Title

1

Honda 12357-ZN2-000

Breather Tube

$9.49

$

Usually ships in 3-6 days

0

2

Honda 15772-551-000

Breather Tube Clip

$2.99

$

In Stock, Qty 5

0

3

Honda 16010-ZN1-801

Gasket Set
(Superseded to 16010-ZN1-802)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 16011-ZN1-801

Float Valve Set

$33.99

$

Usually ships in 3-6 days

0

5

Honda 16013-ZN1-801

Float Set

$27.99

$

Usually ships in 3-6 days

0

6

Honda 16015-ZN1-801

Float Chamber Set

$100.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZN1-801

Screw Set (Pilot)

$12.99

$

Usually ships in 3-6 days

0

8

Honda 16024-124-760

Drain Screw Set

$14.99

$

Usually ships in 3-6 days

0

9

Honda 16028-ZN1-801

Screw Set

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16100-ZN2-811

Carburetor Assy.

$325.99

$

Usually ships in 3-6 days

0

11

Honda 16148-141-881

Choke Lever Dust Cap

$6.49

$

In Stock, only 1 left!

0

12

Honda 16166-ZN2-801

Main Nozzle

$21.99

$

In Stock, only 2 left!

0

13

Honda 16178-ZN1-801

Plain Washer

$1.99

$

Usually ships in 3-6 days

0

14

Honda 16198-ZJ1-840

Drain Tube

$5.49

$

In Stock, only 2 left!

0

15

Honda 16200-ZN1-801

Fuel Shut-off Solenoid

$62.99

$

In Stock, only 1 left!

0

16

Honda 16211-ZN1-000

Carburetor Insulator

$13.99

$

In Stock, only 1 left!

0

17

Honda 16221-ZN1-000

Carburetor Gasket

$5.49

$

Usually ships in 3-6 days

0

18

Honda 16710-ZN2-000

Fuel Pump Bracket

$23.99

$

Usually ships in 3-6 days

0

19

Honda 17228-ZN1-000

Air Cleaner Gasket

$14.99

$

Usually ships in 3-6 days

0

20

Honda 17238-ZJ4-830

Air Cleaner Collar

$2.49

$

In Stock, only 3 left!

0

21

Honda 17410-ZN2-000

Air Cleaner Elbow

$51.99

$

Usually ships in 3-6 days

0

22

Honda 90041-ZG8-000

Stud Bolt (6x113)

$6.99

$

Usually ships in 3-6 days

0

23

Honda 90314-ZJ1-840

Insert Nut (6mm)

$3.49

$

In Stock, only 1 left!

0

24

Honda 90658-SA0-003

Wire Harness Clip

$12.99

$

Usually ships in 3-6 days

0

25

Honda 91402-ZJ1-841

Purse Lock Clip

$3.49

$

Usually ships in 3-6 days

0

26

Honda 93500-04012-0H

Pan Screw (4x14)

$1.49

$

In Stock, Qty 10

0

27

Honda 94050-06000

Flange Nut (6mm)

$0.99

$

In Stock, Qty 20+

0

28

Honda 95002-02080

Tube Clip

$2.49

$

In Stock, Qty 10

0

29

Cub Cadet N/A

Fuel Line (4.5x540)

Note: (purchase locally)

$

$

Currently unavailable

30

Honda 95701-06100-00

Flange Bolt (6x100)

$3.99

$

Usually ships in 3-6 days

0

31

Honda 99101-ZH8-0920

Main Jet Set (#92)

$7.99

$

In Stock, only 1 left!

0

32

Honda 99204-ZE2-0400

Pilot Jet Set (#40)

$22.99

$

In Stock, only 2 left!

0
