M5214KA - Exmark 52" Metro Walk-Behind Mower, 14hp Kawasaki (SN: 130000 - 149999) (1997) 32" And 36" Mower Deck Parts Diagram

52" Metro Walk-Behind Mower, 14hp Kawasaki

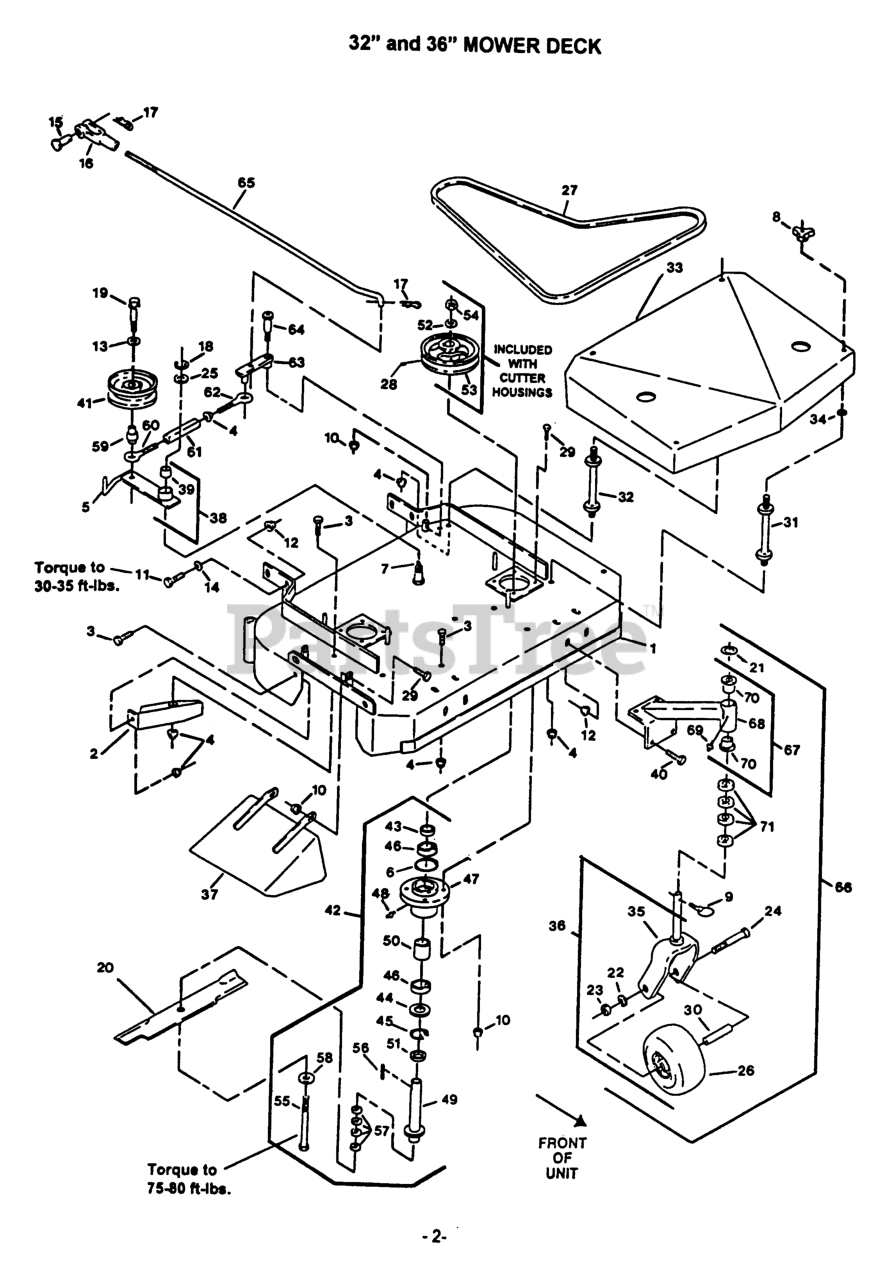

32" And 36" Mower Deck Parts Diagram

  • Title

1

Exmark 1-302227

DISCONTINUED (EXMARK)

Note: 36"

$

$

Not available

Exmark 1-302224

1-302227
(Superseded to 1-302227)

Note: 36"

$

$

Not available

Exmark 1-302211

DISCONTINUED (EXMARK)

Note: 32"

$

$

Not available

Exmark 1-322143

1-322173
(Superseded to 1-322173)

Note: 32"

$

$

Not available

2

Exmark 1-302189-01

BAFFLE-DOGLEG

$57.99

$

Usually ships in 3-6 days

0

3

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

4

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

5

Exmark 1-302128

1-402109
(Superseded to 1-402109)

$132.99

$

In Stock, only 2 left!

0

6

Exmark 1-303542

O-RING

$3.49

$

In Stock, Qty 20+

0

7

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.99

$

In Stock, Qty 20+

0

8

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

9

Exmark 1-809020

PIN

$12.99

$

In Stock, Qty 6

0

10

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

11

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

13

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

14

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

15

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 20+

0

16

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

17

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

18

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

19

Exmark 1-803003

DISCONTINUED

$

$

Not available

20

Exmark 1-633482

103-6584-S
(Superseded to 103-6584-S)

Note: 36"; Std.

$34.99

$

In Stock, Qty 20+

0

Exmark 1-633484

103-6582-S
(Superseded to 103-6582-S)

Note: 36" Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK322(32") or MK362(36")

$34.99

$

In Stock, Qty 20+

0

Exmark 1-633485

103-6580-S
(Superseded to 103-6580-S)

Note: 36"; Optional

$36.99

$

In Stock, Qty 13

0

Exmark 1-323515

103-6583-S
(Superseded to 103-6583-S)

Note: 32"; Std.

$34.99

$

In Stock, Qty 20+

0

Exmark 1-403148

103-6581-S
(Superseded to 103-6581-S)

Note: 32" Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK322(32") or MK362(36")

$36.99

$

In Stock, Qty 20+

0

Exmark 1-403149

103-6738-S
(Superseded to 103-6738-S)

Note: 32"; Optional

$34.99

$

In Stock, Qty 7

0

21

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

22

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

24

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 20+

0

25

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

0

26

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, Qty 17

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, Qty 17

0

Exmark 1-513808

TIRE

$45.99

$

In Stock, only 2 left!

0

Exmark 1-513809

BEARING

$37.99

$

In Stock, Qty 20+

0

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

27

Exmark 1-323299

BELT,BLADE DRIVE
(Superseded to 1-323299-SL)

Note: 36" Model

$86.99

$

In Stock, only 1 left!

0

Exmark 1-323345

BELT,BLADE DRIVE

Note: 32" Model

$111.99

$

Usually ships in 3-6 days

0

28

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (p/n 840022 .5 ml tube) on setscrews

$2.99

$

In Stock, only 2 left!

0

29

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

31

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

Note: Short

$6.99

$

In Stock, Qty 20+

0

32

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

Note: Long

$8.49

$

In Stock, Qty 20+

0

33

Exmark 1-324208

116-2706
(Superseded to 116-2706)

Note: 36" Metro

$524.99

$

In Stock, only 1 left!

0

Exmark 1-302213

Shield Weldmt

Note: 36" Metro

$

$

Not available

Exmark 1-324194

ASM,SHIELD BELT

Note: 32" Model

$

$

Not available

Exmark 1-322149

1-324194
(Superseded to 1-324194)

Note: 32" Model

$

$

Not available

34

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

35

Exmark 1-322145-01

116-7942-01
(Superseded to 116-7942-01)

$101.99

$

In Stock, only 1 left!

0

36

Exmark 1-322154

103-1236
(Superseded to 103-1236)

$220.99

$

Usually ships in 3-6 days

0

37

Exmark 1-302054

Chute
(Superseded to 1-302233-01)

$203.99

$

In Stock, only 1 left!

0

38

Exmark 1-302129

1-402109
(Superseded to 1-402109)

$132.99

$

In Stock, only 2 left!

0

39

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 2 left!

0

40

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 20+

0

41

Exmark 1-603843

132-4718
(Superseded to 132-4718)

Note: Heavy duty

$35.99

$

In Stock, Qty 20+

0

42

Exmark 1-322166

ASM,HOUSING CUTTER

$

$

Not available

43

Exmark 1-323402

DISCONTINUED

$

$

Not available

44

Exmark 1-323408

SEAL,DUST

$

$

Not available

45

Exmark 1-808506

RING,SNAP WLDS N5000-244

$7.49

$

In Stock, Qty 5

0

46

Exmark 1-303543

BEARING,HD SPINDLE

$45.99

$

In Stock, Qty 20+

0

47

Exmark 1-323315

HOUSING,CUTTER

$117.99

$

In Stock, only 2 left!

0

48

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

49

Exmark 1-322164

103-1871
(Superseded to 103-1871)

$129.99

$

Usually ships in 3-6 days

0

50

Exmark 1-323400

SPACER,BRG/BRG

Note: Long

$9.99

$

In Stock, only 2 left!

0

51

Exmark 1-323399

SPACER,BEARING &SPINDLE

Note: Short

$9.99

$

Usually ships in 3-6 days

0

52

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

In Stock, Qty 20+

0

53

Exmark 1-303535

1-403183
(Superseded to 1-403183)

$74.99

$

In Stock, Qty 6

0

54

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

55

Exmark 1-800861

SCREW-CAP, HH

Note: Gr 5

$20.99

$

In Stock, Qty 15

0

56

Exmark 1-807267

KEY

$2.99

$

In Stock, Qty 20+

0

57

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

58

Exmark 1-513208

WASHER-SPRING

$9.49

$

In Stock, Qty 20+

0

59

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

0

60

Exmark 1-303348

EYEBOLT-THREAD, LH

Note: Left hand thread

$6.99

$

In Stock, Qty 20+

0

61

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 15

0

62

Exmark 1-303238

EYEBOLT-THREAD, RH

Note: Right hand thread

$6.99

$

In Stock, Qty 20+

0

63

Exmark 1-302198

1-321021
(Superseded to 1-321021)

$95.99

$

Usually ships in 3-6 days

0

64

Exmark 1-809011

BOLT,SHLDR KSKH

$

$

Not available

65

Exmark 1-323303

ARM-ASSIST, LINKAGE

$26.99

$

In Stock, only 2 left!

0

66

Exmark 1-322153

CASTER/MOUNT ASM

$

$

Not available

67

Exmark 1-302203

SUPPORT ASM

$318.99

$

Usually ships in 3-6 days

0

68

Exmark 1-302194

1-302203
(Superseded to 1-302203)

$318.99

$

Usually ships in 3-6 days

0

69

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

70

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

71

Exmark 1-303314

SPACER-CASTER

$6.99

$

In Stock, Qty 20+

0

Exmark 1-850337

PAINT,SPRAY RED

$36.99

$

In Stock, Qty 12

0

Exmark MK322

MULCH KIT,32" DECK

Note: 32"

$556.99

$

Usually ships in 3-6 days

0

Exmark MK36-2

Mulch Kit

Note: 36"

$536.99

$

In Stock, only 2 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: .5 ml tube

$21.99

$

Usually ships in 3-6 days

0
