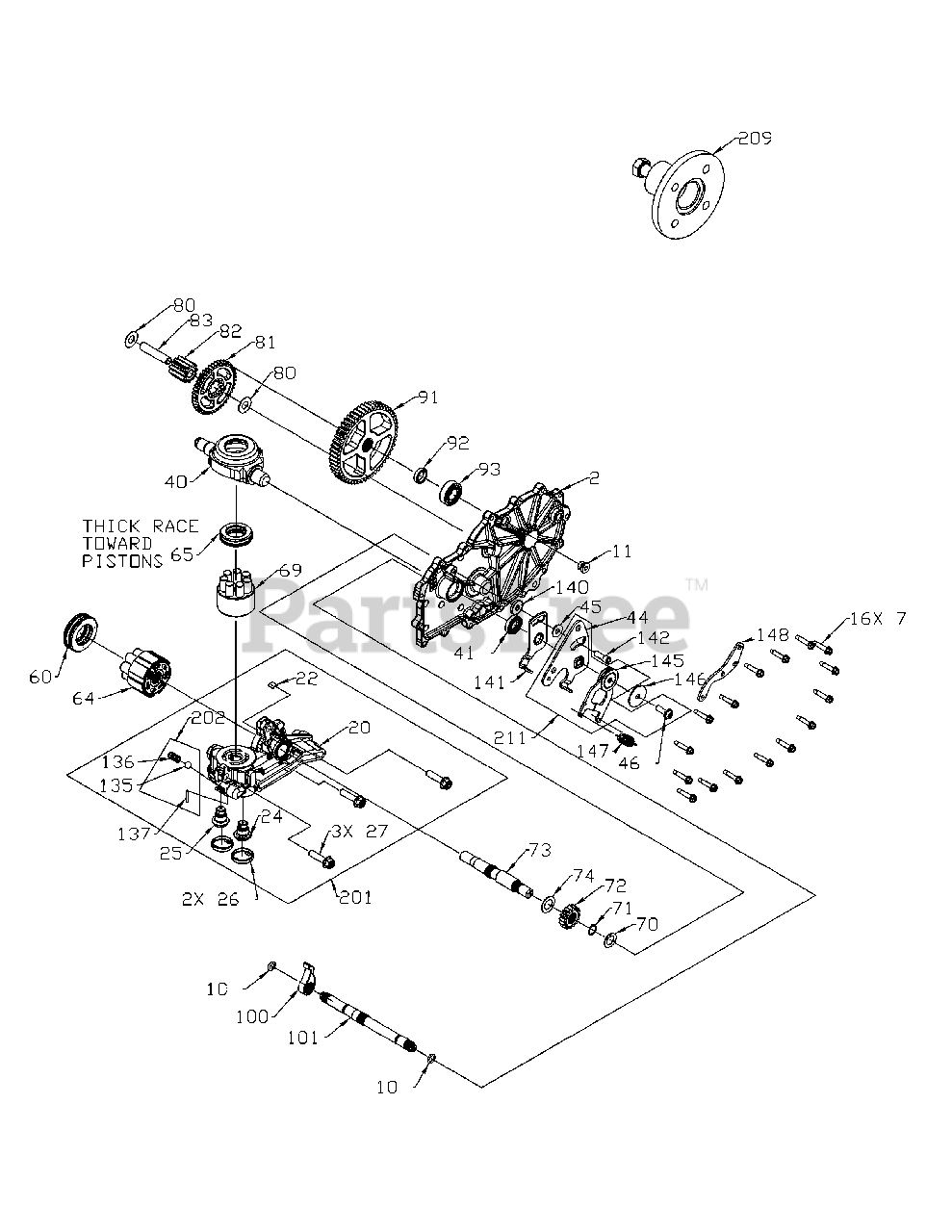

M50-KHS (53BB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler Transmission 02002161 or 02001570 - Right Hand Lower Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

Transmission 02002161 or 02001570 - Right Hand Lower Parts Diagram

  • Title

1

Cub Cadet HG-71413

Kit, Housing Main RH Chrg

$228.99

$

Usually ships in 3-6 days

0

1

Housing, Main RH Chrg

$

$

Not available

1

Bushing .624 x .719 x .562

$

$

Not available

1

Brg, Jrnl .86 x .98 x .79

$

$

Not available

1

Pin .25 x .375

$

$

Not available

2

Cub Cadet HG-71542

Kit, Cover Side RH includes

$

$

Currently unavailable

2

Cover, Side RH

$

$

Not available

2

Bushing .624 x .719 x .562

$

$

Not available

2

Brg, Jrnl .86 x .98 x .79

$

$

Not available

2

Gear

$

$

Not available

7

Cub Cadet HG-53246

HFHCS 1/4-20 x 1.25''

$3.99

$

Usually ships in 3-6 days

0

10

O-Ring 111.103 x .424

Note: furnish HG-71410

$

$

Not available

11

Cub Cadet HG-9005110-5600

Plug 9/16/18 (Metal)

$20.99

$

Usually ships in 3-6 days

0

20

Center Section, RH Chrg

$

$

Not available

22

Cub Cadet HG-51448

Plate, Bypass

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet HG-52114P

Filter, Oil

$32.99

$

Usually ships in 3-6 days

0

24

Shock Valve

$

$

Not available

25

Shock Valve

$

$

Not available

26

Cub Cadet HG-52162

Seal, Plug 1.250 x .250

$10.99

$

In Stock, only 1 left!

0

27

Cub Cadet HG-52137

HFHCS 3/8-16 x 1.5 (Patch)

$3.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-51626

Seal, Lip .375 x .75 x .25
(Superseded to HG-55232)

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet HG-51628

Ring, Ret .375 External

$4.49

$

In Stock, Qty 14

0

32

Cub Cadet HG-52136

Rod, Bypass

$9.99

$

In Stock, only 1 left!

0

33

Cub Cadet HG-51627

Ring, Ret .750 Internal

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet HG-51910

Arm, Bypass

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet HG-51630

Ring, Rtng .375 Ext

$3.99

$

In Stock, only 1 left!

0

40

Cub Cadet HG-51048

Trunnion, Swashplate

$88.99

$

Usually ships in 3-6 days

0

41

Cub Cadet HG-51140

Seal, Lip 18 x 32 x 7

$9.99

$

Usually ships in 3-6 days

0

44

Control Arm RH

Note: furnish HG-71588

$

$

Not available

45

Cub Cadet HG-44130

Washer .34 x .88 x .06
(Superseded to 736-0371)

$4.49

$

In Stock, only 3 left!

0

46

Cub Cadet HG-51812

TWHCS 5/16-24 x 1.00 (Patch)

$4.49

$

Usually ships in 3-6 days

0

52

Shaft, Input

Note: furnish HG-71442

$

$

Not available

53

Brg, Ball 17 x 40 x 12 Open 6203

Note: furnish HG-71442

$

$

Not available

54

Ring, Ret Wire .561 ID

Note: furnish HG-71442

$

$

Not available

55

Cub Cadet HG-50951

Washer 1.23 x 1.56 x .04

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet HG-51161

Seal, Lip 17 x 40 x 7

$11.99

$

Usually ships in 3-6 days

0

57

Cub Cadet HG-50329

Ring, Ret 2.06 Internal

$11.99

$

Usually ships in 3-6 days

0

60

Cub Cadet HG-51462

Bearing, Thrust
(Superseded to HG-51462P)

$33.99

$

Usually ships in 3-6 days

0

64

Cub Cadet HG-72158

Cylinder Block Assembly 16cc

$94.99

$

Usually ships in 3-6 days

0

65

Cub Cadet HG-50551

Bearing, Thrust Ball 30 x 52 x 13
(Superseded to HG-50551P)

$29.99

$

Usually ships in 3-6 days

0

69

Cub Cadet HG-70723

Block 7 Piston Assembly

$228.99

$

Usually ships in 3-6 days

0

70

Cub Cadet HG-44371

Washer .63 x 1.0 x .05

$15.99

$

Usually ships in 3-6 days

0

71

Cub Cadet HG-44145

Ring, Ret 62 External

$4.49

$

In Stock, only 2 left!

0

72

Cub Cadet HG-52109

Gear

$3.99

$

Usually ships in 3-6 days

0

73

Cub Cadet N/A

Shaft, Motor

$

$

Currently unavailable

74

Cub Cadet HG-51069

Washer .72 x 1.16 x .04

$4.49

$

Usually ships in 3-6 days

0

80

Cub Cadet HG-50132

Washer .5 x 1.0 x .03

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet HG-52110

Gear

$25.99

$

Usually ships in 3-6 days

0

82

Gear

Note: furnish HG-71542

$

$

Not available

83

Cub Cadet HG-51083

Jack Shaft (Pin)

$33.99

$

Usually ships in 3-6 days

0

90

Cub Cadet HG-50859

Ring, Ret 2.06 Internal

$6.99

$

Usually ships in 3-6 days

0

91

Cub Cadet HG-52108

Gear, 54T

$73.99

$

Usually ships in 3-6 days

0

92

Cub Cadet HG-53336

Spacer, .750 x 1.32 x .257

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet HG-44121

Bearing Ball .75 x 40 x 12
(Superseded to HG-44121P)

$56.99

$

In Stock, only 2 left!

0

94

Shaft, Axle

Note: furnish HG-71570

$

$

Not available

95

Cub Cadet HG-53656

Bearing Ball 1.0 x 52 x 15 Open 6205M

$17.99

$

In Stock, only 2 left!

0

95

Cub Cadet HG-53514

Spacer

Note: not shown

$4.99

$

Usually ships in 3-6 days

0

96

Cub Cadet HG-53699

Seal, Lip TC4

$9.49

$

In Stock, only 2 left!

0

97

Hub, 4 Stud (3.56 Taper)

Note: furnish HG-71405P

$

$

Not available

99

Cub Cadet HG-53768

Nut, Hex Lock 3/4-16

$

$

Not available

100

Cub Cadet HG-52118

Pawl, Brake

$

$

Not available

101

Cub Cadet HG-52245

Shaft, Brake

$

$

Currently unavailable

102

Handle, Brake

$

$

Not available

103

Clip, Retaining

$

$

Not available

105

Cub Cadet HG-50752

HFHCS 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

106

Cub Cadet HG-53655

Guard, Filter - RH

$18.99

$

Usually ships in 3-6 days

0

109

Spacer, .91 x 1.02 x .625

Note: furnish HG-71570

$

$

Not available

111

Cub Cadet HG-71393

Fitting, Str 9/16-18 SAE .5 Barb

$47.99

$

Usually ships in 3-6 days

0

120

Cub Cadet HG-52735

Fan, 7'', 10 Blade

$

$

Not available

121

Cub Cadet N/A

Pulley 4.5 Inch

Note: (furnish HG-72134)

$

$

Currently unavailable

122

Cub Cadet HG-51244

Nut, Hex Lock 1/2-20 Nylon
(Superseded to 912-0346)

$4.99

$

In Stock, Qty 6

0

123

Cub Cadet HG-50752

HFHCS 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

130

Cub Cadet HG-52157

Tube, Connecting
(Superseded to HG-54501)

$4.99

$

In Stock, Qty 14

0

131

Cub Cadet HG-50273

Gerotor Assembly (1.6 cc/rev)

$36.99

$

Usually ships in 3-6 days

0

131

Cub Cadet HG-72291

KIT, GEROTOR SEAL PARTS

Note: PARTS INCULDED IN HG-71410 SEAL KIT

$12.99

$

Usually ships in 3-6 days

0

132

Cub Cadet HG-52250

O-Ring, -137, 0.103 x 2.050

$3.99

$

Usually ships in 3-6 days

0

133

Cub Cadet HG-53738

Cover, Charge Pump

$70.99

$

Usually ships in 3-6 days

0

134

Cub Cadet HG-50752

HFHCS 1/4-20 x .75

$4.49

$

Usually ships in 3-6 days

0

135

Ball, Steel 7/16''

$

$

Not available

135

Ball, Steel 7/16''

Note: furnish HG-71436

$

$

Not available

136

Spring relief .42 x .250

$

$

Not available

136

Spring relief .42 x .250

Note: furnish HG-71436

$

$

Not available

137

Pin, Spring .125 x .875

$

$

Not available

137

Pin, Spring .125 x .875

Note: furnish HG-71436

$

$

Not available

140

Cub Cadet HG-52527

Spacer, .320 x 1.005 x .179
(Superseded to HG-54315)

$2.99

$

Usually ships in 3-6 days

0

141

Cub Cadet HG-51945

Arm, Neutral Right

$13.99

$

In Stock, only 1 left!

0

142

Cub Cadet HG-71341

SHCS 5/16-24 x 1 (Patch)

$9.49

$

Usually ships in 3-6 days

0

145

Assembly, RTN

Note: furnish HG-71588

$

$

Not available

146

Washer, .343 x 1.500 x .062

$

$

Not available

147

Cub Cadet HG-51605

Spring, Extension

$22.99

$

Usually ships in 3-6 days

0

148

Bracket Damper

$

$

Not available

200

Cub Cadet HG-71410

Kit, Seal
(Superseded to HG-73107)

Note: includes 26, 30, 31, 33, 35, 41, 46, 54, 56, 57, 71, 90, 96, 103, 130, 132

$72.99

$

Usually ships in 3-6 days

0

201

Kit, Center Section, RH Chrg

Note: Contact Hydro-Gear

$

$

Not available

202

Cub Cadet HG-71436

Kit, Chrg Relief

Note: includes 135, 136, 137

$10.99

$

Usually ships in 3-6 days

0

203

Kit, Charge

Note: includes 131, 132, 133, 134

$

$

Not available

206

Cub Cadet HG-71405P

Kit, Hub 4 Bolt
(Superseded to HG-71405)

Note: includes 99, 97

$121.99

$

Usually ships in 3-6 days

0

207

Cub Cadet HG-72134

Kit, Fan/ Pulley

Note: includes 120, 121, 123

$63.99

$

In Stock, Qty 6

0

209

Cub Cadet HG-71241

Hub Puller, 4 Bolt
(Superseded to HG-72320)

$231.99

$

Usually ships in 3-6 days

0

210

Cub Cadet HG-71442

Kit, Input Shaft
(Superseded to HG-73047)

Note: includes 52, 53, 54

$88.99

$

Usually ships in 3-6 days

0

211

Cub Cadet HG-71588

Kit, RTN Bidirectional

Note: includes 44, 46, 145

$48.99

$

In Stock, only 1 left!

0

212

Cub Cadet HG-71570

Kit, Axle Shaft

Note: includes 94, 109

$178.99

$

Usually ships in 3-6 days

0

Cub Cadet 737-3120

Lubricant, FLUID-DRIVE SYSTEM Quart
(Superseded to 490-000-C051)

Note: 70.3 oz, not shown

$21.99

$

In Stock, Qty 20+

0

Cub Cadet HG-50928

Sealant

Note: not shown

$103.99

$

In Stock, Qty 8

0
