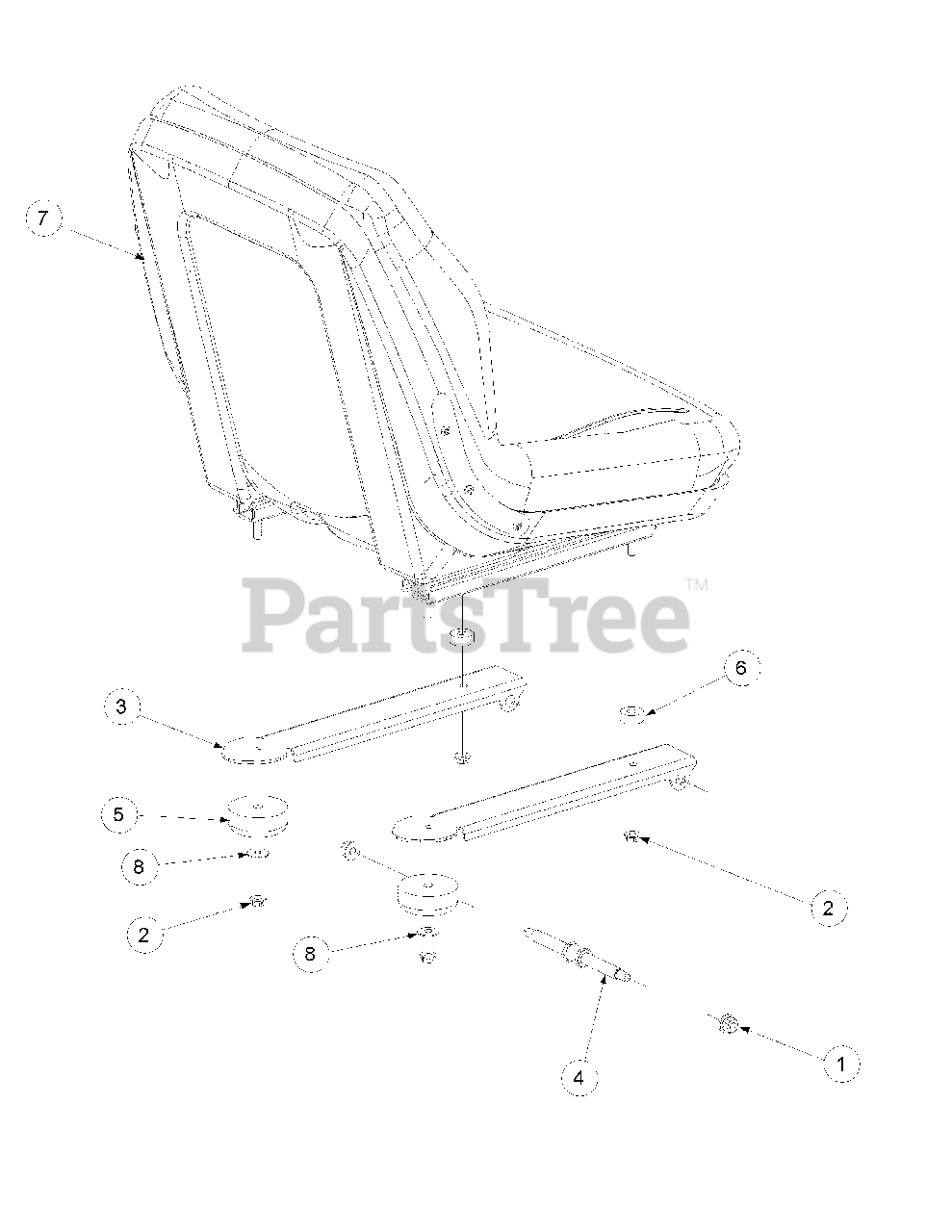

M50-KHS (53BB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler Seat Assembly Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

Seat Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 01002633-0637

Mounting Bracket, Seat

$48.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01002634

Shoulder Screw, .50x2.345, 3/8-16

$25.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 14

0

6

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, Qty 5

0

7

Cub Cadet 02001944

Adjustable Seat, Black

$

$

Not available

7

Cub Cadet 02002255

Armrest Kit

$281.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3256

Screw, Button Head 1/4-20 x .50

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0425

Flat Washer, .406 ID, 1.00 OD, .105
(Superseded to 736-0425)

$

$

Not available
