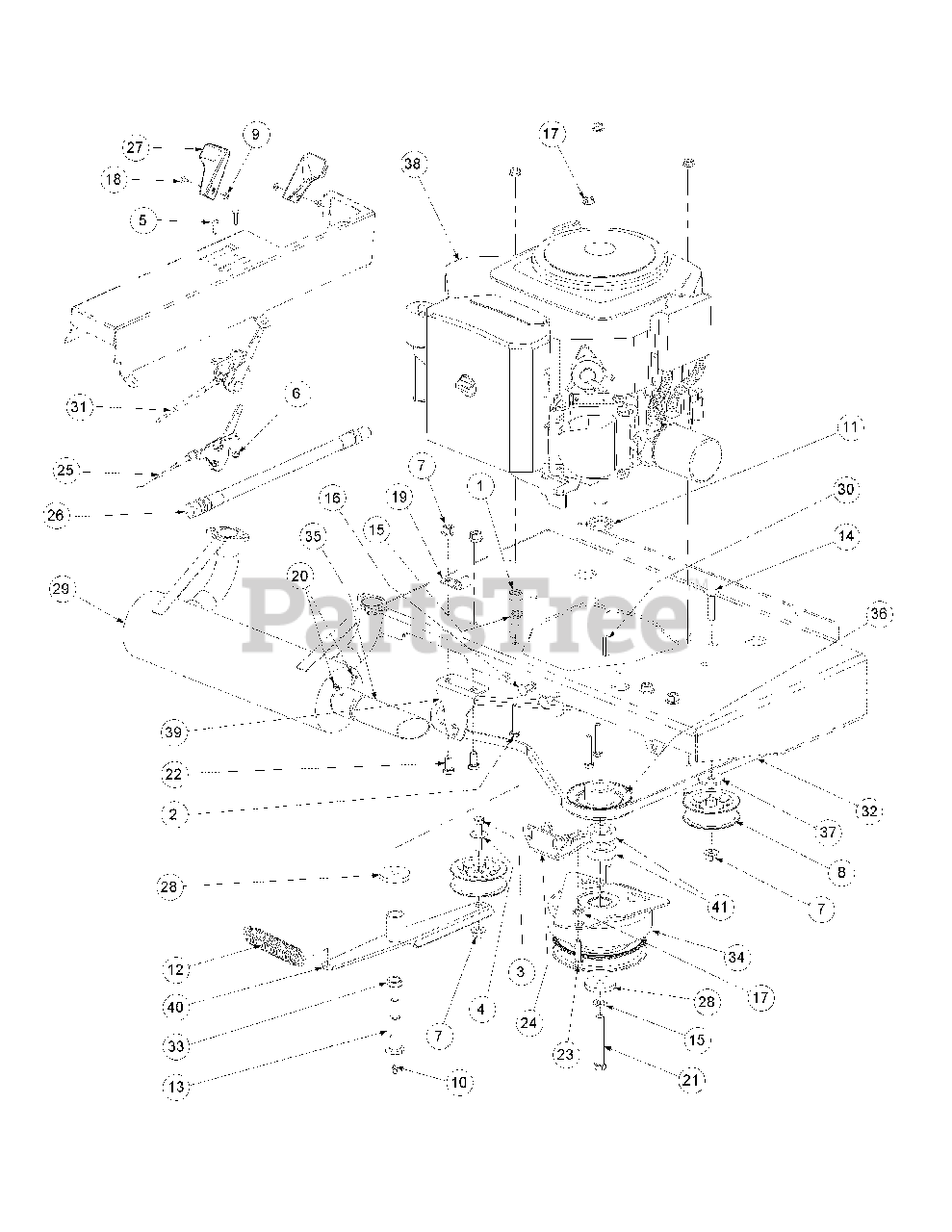

M50-KHS (53BB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler Kohler Engine Assembly (2006 & After) Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

Kohler Engine Assembly (2006 & After) Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

4

Cub Cadet 00012158

Washer

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

6

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

7

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 02004558

Idler Pulley w/ Adaptor

$22.99

$

In Stock, only 2 left!

0

9

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 00073094

Engine Spacer

$14.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$17.99

$

In Stock, only 4 left!

0

13

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

14

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

15

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 00020508

Carriage Bolt:5/16-18 x 3/4

$6.99

$

In Stock, only 3 left!

0

17

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-0148

Tube Clamp, 1.375

$4.49

$

In Stock, Qty 16

0

21

Cub Cadet 710-0510

Capscrew, 7/16-20 x 3.00

$11.99

$

In Stock, only 1 left!

0

22

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 15

0

23

Cub Cadet 00013116

Hex Cap Screw:5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02001992-0637

Retainer Clutch Assembly, Ogura

$30.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01003273P

Throttle, Control Cable, 45.0

$

$

Not available

26

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-04131

Flat Washer, 7/16 IDx 1.750 OD x .250T

$15.99

$

In Stock, only 1 left!

0

29

Cub Cadet 01006566

23HP Kohler Exhaust
(Superseded to 01006566P)

$

$

Not available

30

Cub Cadet 00025344

Key, 1/4 x 1/4 x .875

$

$

Not available

31

Cub Cadet 01008256

Choke, Control Cable, 38.0

$

$

Not available

32

Cub Cadet 01008349

V-Belt, 56.00
(Superseded to 01008349P)

$31.99

$

In Stock, Qty 13

0

33

Cub Cadet 01008404P

Spacer, .635 ID x .28

$15.99

$

In Stock, only 1 left!

0

34

Cub Cadet 01008434P

Electric Clutch
(Superseded to 759-05064)

$514.99

$

In Stock, only 1 left!

0

35

Cub Cadet 01008623

Muffler Accessory Exhaust Tube

$

$

Not available

36

Cub Cadet 01007339

Transmission Drive Pulley (use with 00023821 spacers)

$95.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 01009253

Washer, 5/16-18
(Superseded to 936-0227)

$

$

Not available

38

Cub Cadet KH-CV680-3034

23HP Kohler Engine

$

$

Not available

39

Cub Cadet 02001545

Neutral Lock Mounting Bracket

$

$

Not available

40

Cub Cadet 02001596

Engine Idler Arm Assembly Includes:

$173.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

41

Cub Cadet 00023821

Spacer, 1.015 ID x 1.62 OD x .50 (use with 01007339 pulley)

$24.99

$

Usually ships in 3-6 days

0

Cub Cadet KH-24-883-03-S1

Pre & Air Filter

Note: (not shown)

$27.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

Note: (not shown)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-12-050-01-S

Oil Filter

Note: (not shown)

$13.99

$

In Stock, Qty 20+

0

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

Note: (not shown)

$3.49

$

In Stock, Qty 20+

0
