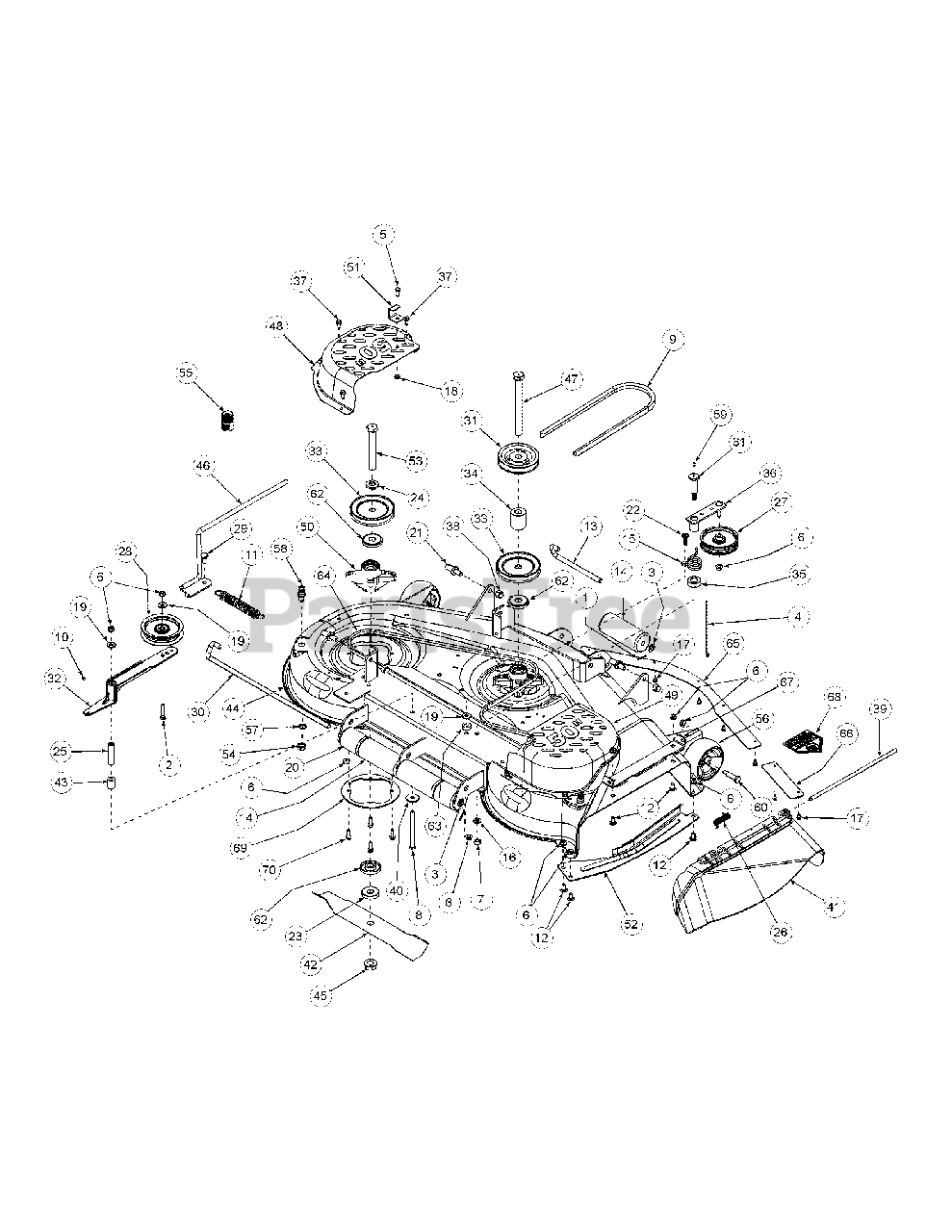

M50-KHS (53BB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler Formed Cutter Deck (618-04426 Spindle) Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

Formed Cutter Deck (618-04426 Spindle) Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 02000864

Push Nut,.480 ID X 1.00 OD

$13.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00022560

Hex Nut Flange lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0290

Nut 7/16-14, Nylock

$4.99

$

In Stock, Qty 11

0

8

Cub Cadet 00034167

Hex Cap Screw, 3/8-16 x 5.00

$

$

Not available

9

Cub Cadet 01005011

V-Belt, B-Section
(Superseded to 01005011P)

$96.99

$

In Stock, only 1 left!

0

10

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

11

Cub Cadet 01009635

Extension Spring, 1.0 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

12

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 911-3314

Roller Pin, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

14

Cub Cadet 731-3005

Front and Rear Roller

$28.99

$

In Stock, Qty 20+

0

15

Cub Cadet 932-3009

Torsion Idler Spring

$24.99

$

In Stock, only 4 left!

0

16

Cub Cadet 936-3015

Flat Washer, .469 ID x .875 OD x .105

$4.49

$

In Stock, Qty 19

0

17

Cub Cadet 710-0599

Screw, TT, 1/4-20 x .5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-3052

Flat Washer, .406 ID x 1.0 OD x .105

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01001169

Short Roller

$24.99

$

In Stock, only 3 left!

0

21

Cub Cadet 01001745

Pin, 5/8 Dia x 1.2 Lg
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

22

Cub Cadet 710-3034

Carraige Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet 01002564

Spacer, .76 ID x 2.00 OD x .477

$20.99

$

In Stock, only 2 left!

0

24

Cub Cadet 01003123

Spacer, .812 ID x .218 Lg.
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, Qty 11

0

26

Cub Cadet 732-04797

Torsion Spring

$11.99

$

In Stock, only 4 left!

0

27

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

28

Cub Cadet 02004447

Idler Pulley, 4.06 OD with Deep Flange

$57.99

$

In Stock, Qty 20+

0

29

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg; 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

30

Cub Cadet 02002798

Roller Pin Rod

$79.99

$

In Stock, only 4 left!

0

31

Cub Cadet 01005201

V-Pulley, 4.75 OD

$130.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 02001855

Idler Arm Assembly, Flat Top Bearing

$118.99

$

In Stock, only 3 left!

0

33

Cub Cadet 956-1209

Pulley, A Sect x 4.90

$60.99

$

In Stock, only 3 left!

0

34

Cub Cadet 01006680

Spacer, .760 ID x 1.75 OD x 1.969

$

$

Not available

35

Cub Cadet 01008456

Spacer .760 ID x 1.5 OD

$34.99

$

In Stock, only 1 left!

0

36

Cub Cadet 01008593

Idler Arm Assembly

$144.99

$

In Stock, only 2 left!

0

37

Cub Cadet 01008620

Self Tapping Screw 5/16-18 x .750
(Superseded to 710-04484)

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 00012428

Hex Nut, 1/2-13, Insert Lock

$6.99

$

In Stock, only 2 left!

0

39

Cub Cadet 01009102

Hinge Pin, .375 x 14.06
(Superseded to 711-1762)

$18.99

$

In Stock, Qty 6

0

40

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

41

Cub Cadet 01009705P

Chute Deflector

$42.99

$

In Stock, only 3 left!

0

42

Cub Cadet 01010168-0637

Hi-Lift Blade, 17.9

$29.99

$

In Stock, Qty 20+

0

43

Cub Cadet 01010173

Spacer, .39 ID x .875 OD x 1.00

$

$

Not available

44

Cub Cadet 02000407

Deck Assembly 50"

$

$

Not available

45

Cub Cadet 02000402

Flange Hex Nut, 3/4-16

$12.99

$

In Stock, only 3 left!

0

46

Cub Cadet 02000416

Spring Tension Rod Assembly

$

$

Not available

47

Cub Cadet 02001296

Hex Cap Screw, 3/4-16 x 8.00

$37.99

$

In Stock, only 1 left!

0

48

Cub Cadet 02000626

Left Hand Belt Cover

$

$

Not available

49

Cub Cadet 02000667

Right Hand Belt Cover

$

$

Not available

50

Cub Cadet 918-04426

Blade Spindle Assembly (Greaseable)

$112.99

$

In Stock, Qty 20+

0

50

Cub Cadet 937-3000

Grease Fitting 3/16

$4.99

$

In Stock, Qty 20+

0

50

Cub Cadet 941-04091

Cup, Bearing
(Superseded to 941-04299)

$6.99

$

In Stock, Qty 20+

0

50

Cub Cadet 941-04089

Bearing, Cone
(Superseded to 941-04298)

$16.99

$

In Stock, Qty 18

0

50

Cub Cadet 750-04409

Spacer, Bearing

$20.99

$

In Stock, only 1 left!

0

50

Cub Cadet 921-3018A

Seal, Oil, 1.25 x 1.874 x .25

$8.49

$

In Stock, Qty 20+

0

51

Cub Cadet 01004109

Tension Rod Stop Bracket

$11.99

$

In Stock, only 1 left!

0

52

Cub Cadet 703-3511A-0637

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

53

Cub Cadet 01006590

Spindle Bolt 3/4-16 x 5.50

$

$

Not available

54

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

55

Cub Cadet 921-04041

Adaptor, Water Nozzle

$23.99

$

In Stock, Qty 20+

0

56

Cub Cadet 703-1890A

Deck Wheel, 5.00 Dia.

$39.99

$

In Stock, Qty 20+

0

57

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.9

$4.49

$

In Stock, Qty 13

0

58

Cub Cadet 737-04003D

Nozzle, Deck Water

$23.99

$

In Stock, Qty 6

0

59

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

60

Cub Cadet 938-3056

Shoulder Screw .498 x 1.53

$9.49

$

In Stock, Qty 20+

0

61

Cub Cadet 738-3172

Shoulder Screw .68 x 2.11

$20.99

$

In Stock, only 2 left!

0

62

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

63

Cub Cadet 750-3119

Spacer .406 ID x 1.00 OD x 0.38

$11.99

$

In Stock, only 4 left!

0

64

Cub Cadet 02000653

V-Belt, 1/2 x 91 LG

$65.99

$

In Stock, only 1 left!

0

65

Cub Cadet 783-04414A-0637

Skirt, Center, 50"
(Superseded to 783-04414A)

$35.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 783-04415-0637

Skirt, Right Hand, 50"

$30.99

$

In Stock, only 3 left!

0

67

Cub Cadet 783-04470

Chute Mounting Bracket

$33.99

$

In Stock, only 4 left!

0

68

Cub Cadet 977S30145

Decal, Danger Hands & Feet

$10.99

$

In Stock, only 1 left!

0

69

Cub Cadet 02000813

Spindle Plate

$33.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0
