M50-KHS (53AB5BBP750) - Cub Cadet 50" Tank Zero-Turn Mower, 23hp Kohler CV23S-75592 Fuel System Parts Diagram

50" Tank Zero-Turn Mower, 23hp Kohler

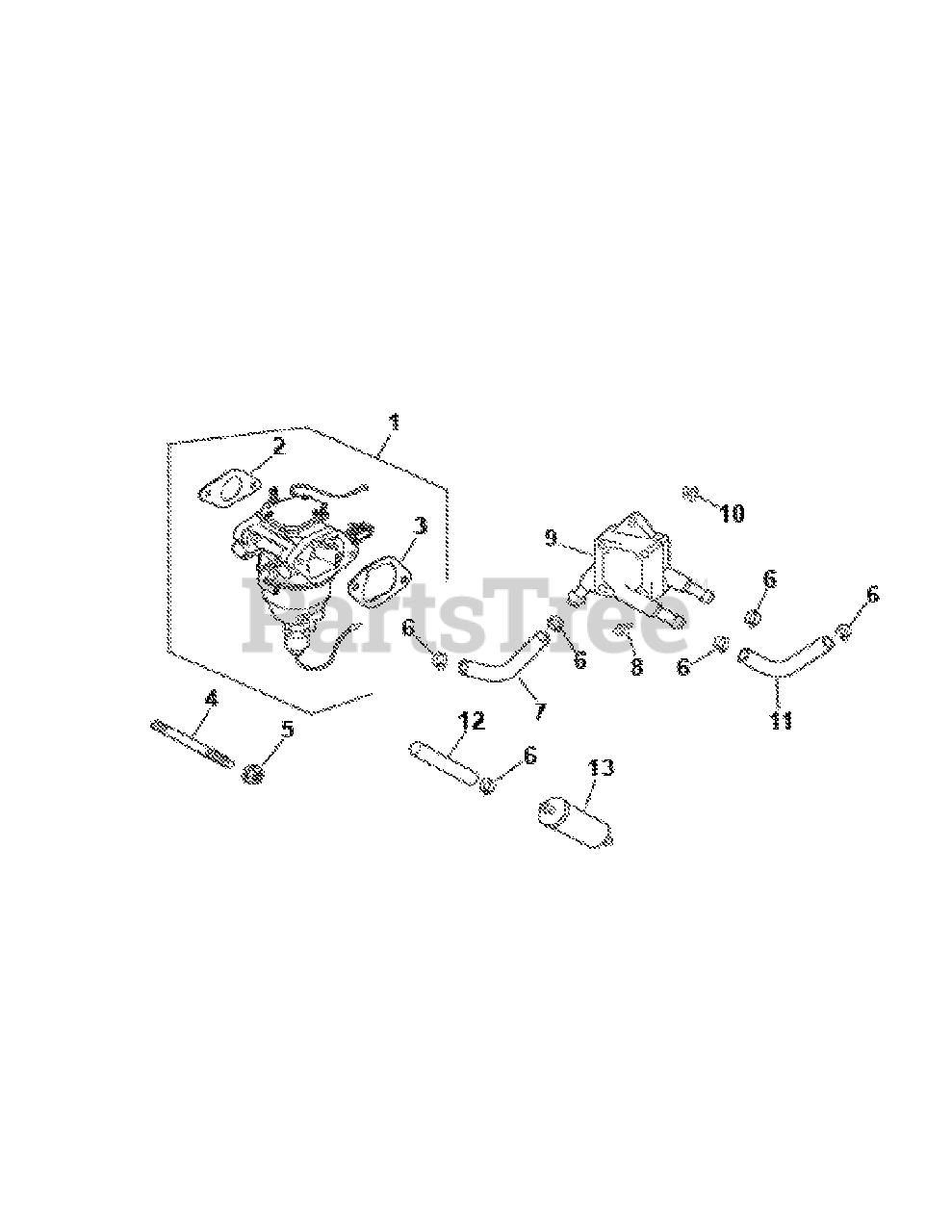

CV23S-75592 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-169-S

Carburetor w/Gaskets
(Superseded to KH-24-853-303-S)

$361.99

$

Usually ships in 3-6 days

0

2

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

4

Cub Cadet KH-M-629095-S

Intake Manifold Stud

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-M-641060-S

Nut

$4.49

$

In Stock, Qty 11

0

6

Cub Cadet KH-25-237-31-S

Hose Clamp

$4.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-52-353-22-S

Fuel line 12.5"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 7

0

8

Cub Cadet KH-24-086-12

Screw

$

$

Not available

9

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

10

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, Qty 13

0

11

Cub Cadet KH-24-353-12

Fuel Line 11"

$

$

Not available

12

Cub Cadet KH-25-353-15

Fuel Line 3.5"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 7

0

13

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-757-38-S

Gasket Kit

Note: (not shown)

$32.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-36-S

Choke Repair Kit w/Gaskets

Note: (not shown)

$116.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-44-S

Float Kit

Note: (not shown)

$94.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-45-S

Solenoid Replacement Kit

Note: (not shown)

$246.99

$

In Stock, only 1 left!

0

Cub Cadet KH-24-757-46-S

Overhaul Kit w/Gaskets

Note: (not shown)

$137.99

$

In Stock, only 1 left!

0
