M4815KA - Exmark 48" Metro Walk-Behind Mower, 15hp Kawasaki (SN: 510000 - 599999) (2005) 48" Mower Deck Parts Diagram

48" Metro Walk-Behind Mower, 15hp Kawasaki

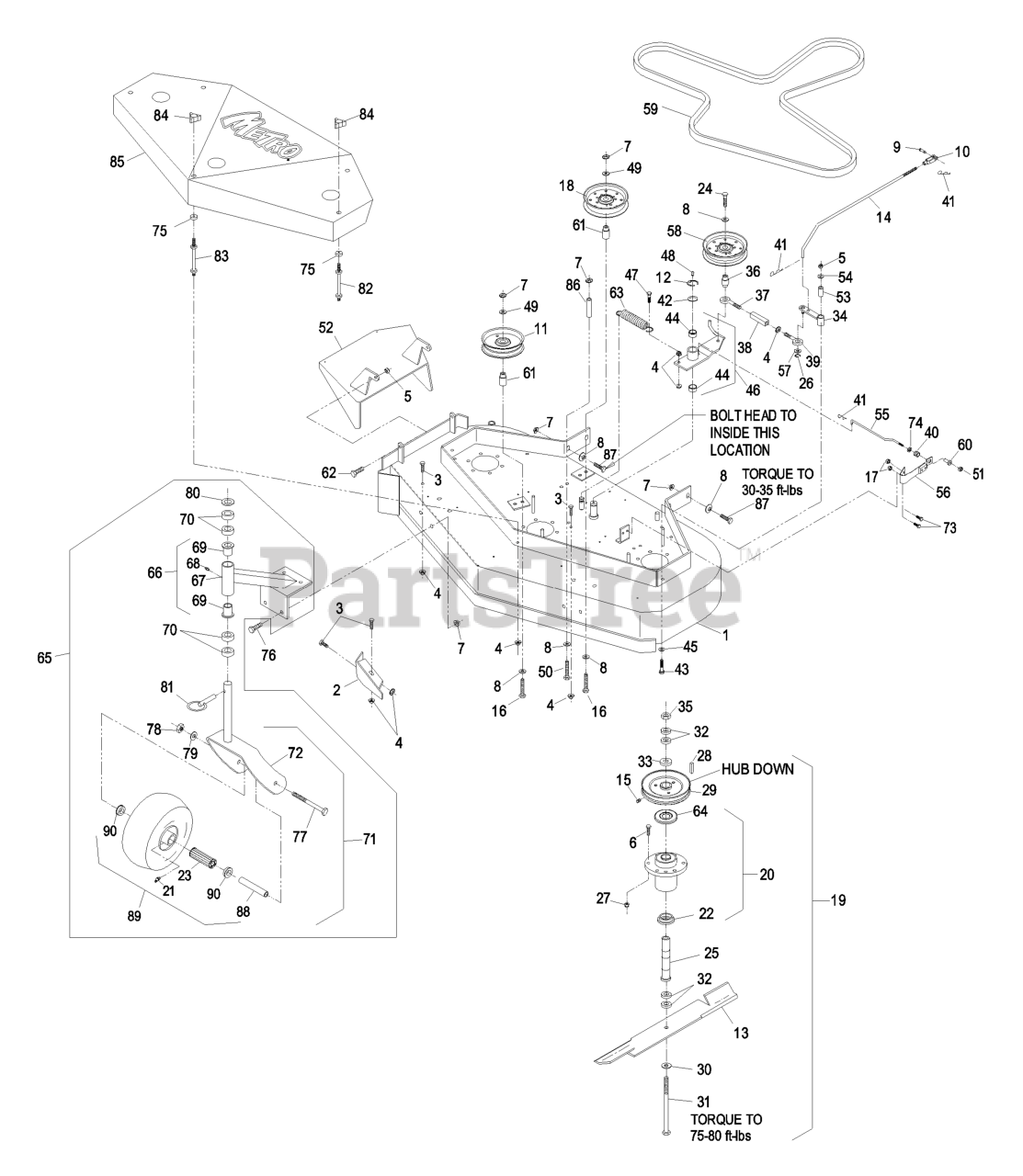

48" Mower Deck Parts Diagram

  • Title

1

Exmark 1-404257

DECK-SERVICE, 48

$2630.99

$

Usually ships in 3-6 days

0

2

Exmark 1-402107-01

BAFFLE-DOGLEG

$

$

Not available

3

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

4

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

7

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 2 left!

0

10

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

11

Exmark 1-613098

PULLEY-IDLER

$47.99

$

In Stock, Qty 6

0

12

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 7

0

13

Exmark 103-6583

103-6583-S
(Superseded to 103-6583-S)

$31.99

$

In Stock, Qty 20+

0

Exmark 103-6581

103-6581-S
(Superseded to 103-6581-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N's MK483.

$34.99

$

In Stock, only 4 left!

0

Exmark 103-2507

103-6738-S
(Superseded to 103-6738-S)

$31.99

$

In Stock, Qty 7

0

Exmark 103-1577

103-1577-S
(Superseded to 103-1577-S)

$37.99

$

In Stock, Qty 6

0

Exmark 103-6336

116-5178-S
(Superseded to 116-5178-S)

$36.99

$

In Stock, Qty 9

0

14

Exmark 1-323303

ARM-ASSIST, LINKAGE

$25.99

$

In Stock, only 2 left!

0

15

Exmark 1-803310

SCREW-SET

Note: Use Pro-lock Nut Type (p/n 1-840022 .5 ml tube) on the setscrews.

$2.99

$

In Stock, only 1 left!

0

16

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

17

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 16

0

18

Exmark 1-403186

126-9187
(Superseded to 126-9187)

$60.99

$

In Stock, Qty 19

0

19

Exmark 103-8387

ASM, CUTTER HOUSING OUTER

$550.99

$

Usually ships in 3-6 days

0

20

Exmark 103-8280

KIT, CUTTER HOUSING

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$254.99

$

In Stock, only 3 left!

0

21

Exmark 302-61

FITTING-GREASE

$11.99

$

In Stock, only 2 left!

0

22

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

23

Exmark 1-513809

BEARING

$35.99

$

In Stock, Qty 8

0

24

Exmark 702809

SCREW-HH

$5.49

$

In Stock, only 4 left!

0

25

Exmark 1-323529

TUBE-SPINDLE, SHORT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$88.99

$

In Stock, only 2 left!

0

26

Exmark 32120-35

RING-RETAINING, EXT

$4.49

$

In Stock, Qty 6

0

27

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

28

Exmark 1-807267

KEY

$2.99

$

In Stock, only 2 left!

0

29

Exmark 1-403183

SHEAVE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$69.99

$

In Stock, only 1 left!

0

30

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

31

Exmark 1-800861

SCREW-CAP, HH

$19.99

$

In Stock, only 2 left!

0

32

Exmark 1-323539

SPACER

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-323339

WASHER-RETAINER, SHEAVE

$5.49

$

Usually ships in 3-6 days

0

34

Exmark 1-322235

ARM-ASSIST, 32/36

$54.99

$

Usually ships in 3-6 days

0

35

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

36

Exmark 1-303434

BUSHING-ENGAGEMENT

$14.99

$

In Stock, only 1 left!

0

37

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.49

$

In Stock, Qty 9

0

38

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, only 3 left!

0

39

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.49

$

In Stock, Qty 7

0

40

Exmark 1-323747

SPRING-COMPRESSION

$3.49

$

In Stock, Qty 10

0

41

Exmark 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

42

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, only 3 left!

0

43

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

44

Exmark 1-323729

SLEEVE-BEARING

$5.49

$

In Stock, only 2 left!

0

45

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

46

Exmark 103-3600

IDLER ARM ASM

$133.99

$

Usually ships in 3-6 days

0

47

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

48

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

49

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

50

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

51

Exmark 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

52

Exmark 1-402106-01

WLD,CHUTE 48

$159.99

$

In Stock, only 2 left!

0

53

Exmark 1-403179

TUBE-PIVOT

$18.99

$

In Stock, only 1 left!

0

54

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

55

Exmark 1-323714

ROD-BRAKE

$28.99

$

Usually ships in 3-6 days

0

56

Exmark 1-324372

PAD AND SPRING ASM

$68.99

$

In Stock, only 1 left!

0

57

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

58

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 14

0

59

Exmark 1-403174

BELT,BLADE 48
(Superseded to 1-403174-SL)

$80.99

$

In Stock, Qty 9

0

60

Exmark 1-323746

SPACER-FLANGED

$1.49

$

In Stock, only 3 left!

0

61

Exmark 1-403184

1-413113
(Superseded to 1-413113)

$5.99

$

In Stock, only 1 left!

0

62

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

63

Exmark 1-323071

SPRING-EXTENSION

$15.99

$

In Stock, Qty 20+

0

64

Exmark 103-1330

GUARD-BEARING, TOP

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-sieze) between the spindles & bearings and spindles & sheaves and under top bearing guard. DO NOT use a copper or nickel based anti-sieze.

$5.49

$

In Stock, only 2 left!

0

65

Exmark 103-1238

ASM,CASTER/MOUNT

Note: Models with Standard pistol grip handles only.

$316.99

$

Usually ships in 3-6 days

0

Exmark 103-2281

116-8245
(Superseded to 116-8245)

Note: Models with ECS handles only.

$732.99

$

Usually ships in 3-6 days

0

66

Exmark 1-302203

SUPPORT ASM

Note: Models with Standard pistol grip handles only.

$299.99

$

Usually ships in 3-6 days

0

Exmark 103-2296

ASM,CSTR SUPPORT W/WEIGHT

Note: Models with ECS handles only.

$294.99

$

In Stock, only 1 left!

0

67

Exmark 1-302194-01

1-302203
(Superseded to 1-302203)

Note: Models with Standard pistol grip handles only.

$299.99

$

Usually ships in 3-6 days

0

Exmark 103-2297-01

103-2296
(Superseded to 103-2296)

Note: Models with ECS handles only.

$294.99

$

In Stock, only 1 left!

0

68

Exmark 302-52

FITTING-GREASE

$6.49

$

In Stock, Qty 20+

0

69

Exmark 1-303514

BEARING-FLANGED

$12.99

$

In Stock, only 1 left!

0

70

Exmark 1-303314

SPACER-CASTER

$6.49

$

In Stock, Qty 5

0

71

Exmark 103-1236

ASM,CASTER/WHEEL

$207.99

$

Usually ships in 3-6 days

0

72

Exmark 1-322145-01

116-7942-01
(Superseded to 116-7942-01)

$95.99

$

In Stock, only 1 left!

0

73

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

74

Exmark 1-323748

RING-PUSH ON

$1.99

$

In Stock, Qty 7

0

75

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

76

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

77

Exmark 325-20

SCREW-HH

$7.99

$

In Stock, Qty 20+

0

78

Exmark 3217-9

NUT-HH

$0.99

$

In Stock, Qty 19

0

79

Exmark 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

80

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

81

Exmark 1-809020

PIN

$11.99

$

In Stock, only 2 left!

0

82

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

83

Exmark 1-303536

STUD-SHIELD, BELT (LONG)

$7.99

$

In Stock, Qty 20+

0

84

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

85

Exmark 1-404238

116-2707
(Superseded to 116-2707)

$498.99

$

In Stock, only 1 left!

0

86

Exmark 1-403188

SPACER

$14.99

$

Usually ships in 3-6 days

0

87

Exmark 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

88

Exmark 1-513547

SPACER

$12.99

$

In Stock, Qty 6

0

89

Exmark 103-2171

KIT, SP CASTER WHEEL REPL

$126.99

$

In Stock, only 4 left!

0

90

Exmark 1-513810

BUSHING

$5.99

$

In Stock, Qty 17

0
