M48-KWS (53AB5D4M150) - Cub Cadet 48" Tank Zero-Turn Mower, 17hp Kawasaki Hydro Pump Assembly Parts Diagram

48" Tank Zero-Turn Mower, 17hp Kawasaki

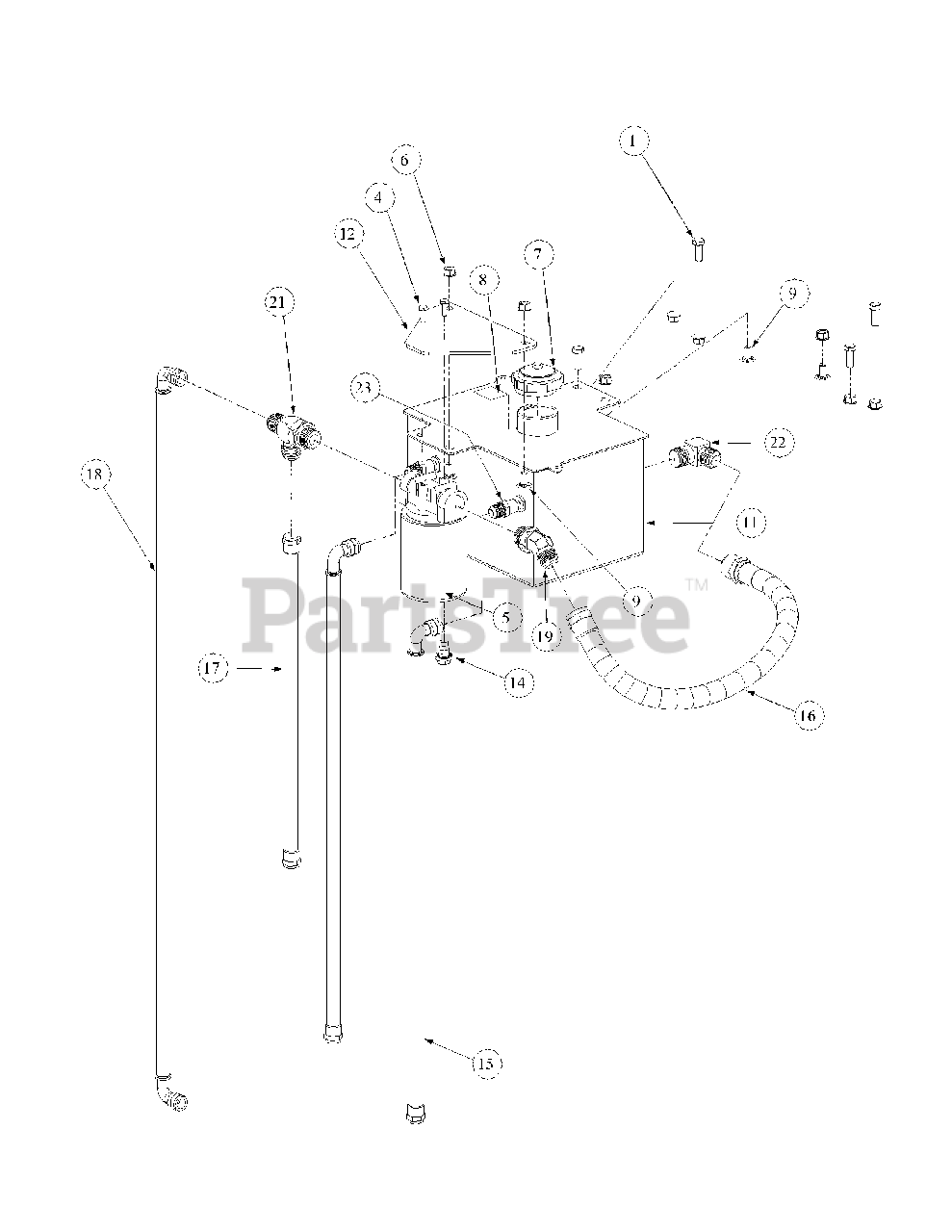

Hydro Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, 1

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012529

Protective Hose Cover

$

$

Not available

4

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

5

Cub Cadet 00017665P

Filter Head 3/4

$

$

Not available

5

Cub Cadet 01004166

33 Micron Filter

$50.99

$

In Stock, only 4 left!

0

6

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 00031994

Decal Oil Only 20W50

$

$

Not available

9

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 01004516

Hydraulic Tank Assembly

$

$

Not available

12

Cub Cadet 01001650

Mounting Plate Oil Filter

$

$

Not available

14

Cub Cadet 738-0940

Oil Pan Drain w/ Seal and Plug

$8.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 01004267

Gearbox to Tank Hose Assembly

$

$

Not available

16

Cub Cadet 01004268

Tank to Filter Hose Assembly

$

$

Not available

17

Cub Cadet 01004269

Filter to Left Hand Pump Hose Assembly

$80.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01004270

Filter to Right Hand Pump Hose Assembly

$

$

Not available

19

Cub Cadet 01004272

Fitting, 45°.

$

$

Not available

21

Cub Cadet 01006959

Fitting Tee, 3/4 x 1/2 x 1/2

$

$

Not available

22

Cub Cadet 01004702

Fitting Elbow, 1/2 x 1/2

$

$

Not available

23

Cub Cadet 01006353

Fitting, 3/8 NPT, 1/2 Flare

$

$

Not available
