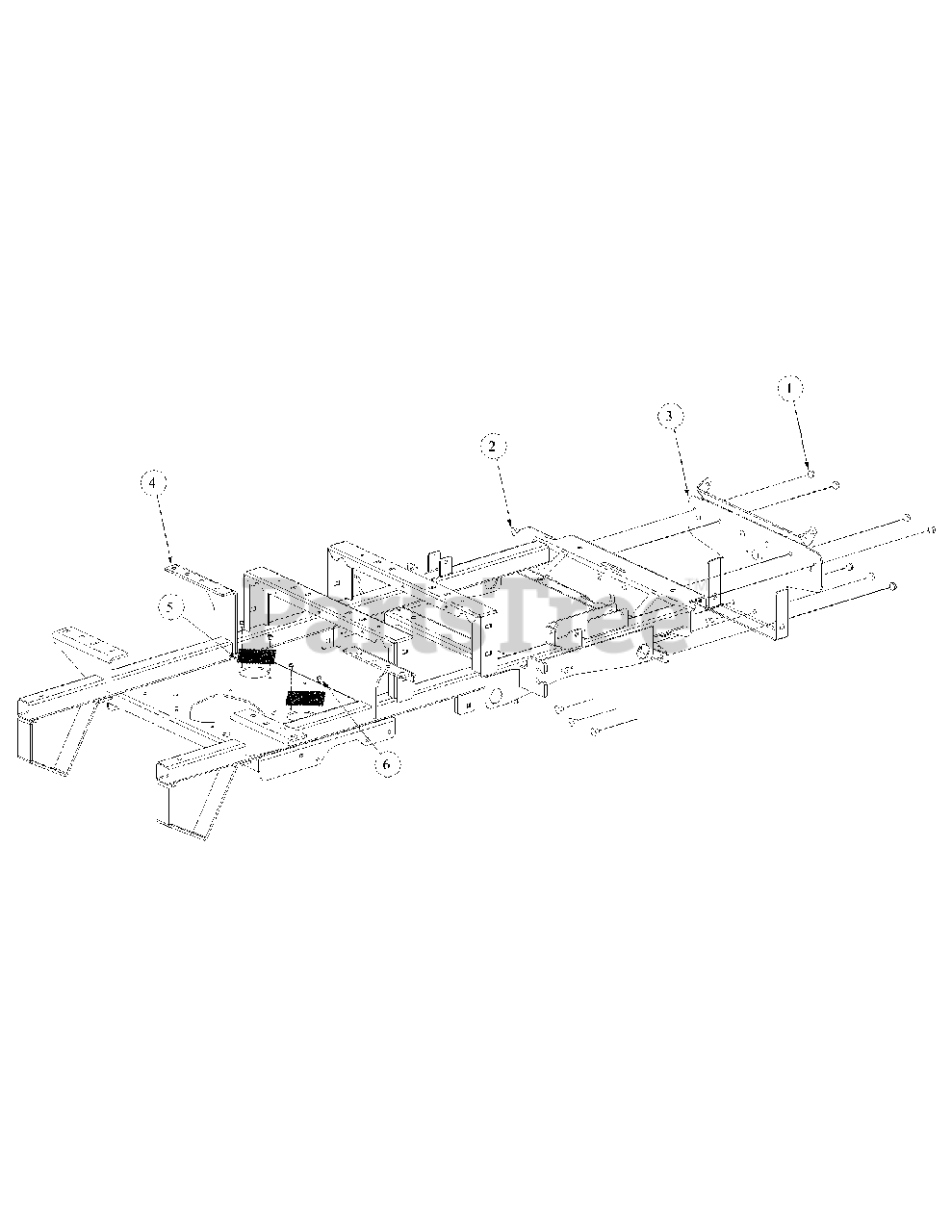

M48-KWS (53AB5D4M150) - Cub Cadet 48" Tank Zero-Turn Mower, 17hp Kawasaki Frame Assembly Parts Diagram

48" Tank Zero-Turn Mower, 17hp Kawasaki

Frame Assembly Parts Diagram

  • Title
1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01001713

Bracket Assembly, Frame, Front

$198.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01001617

Frame Assembly

$

$

Not available

5

Cub Cadet 01005680

Cover, Hydro Fan

$

$

Not available

6

Cub Cadet 710-0599

Screw, TT, 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0
