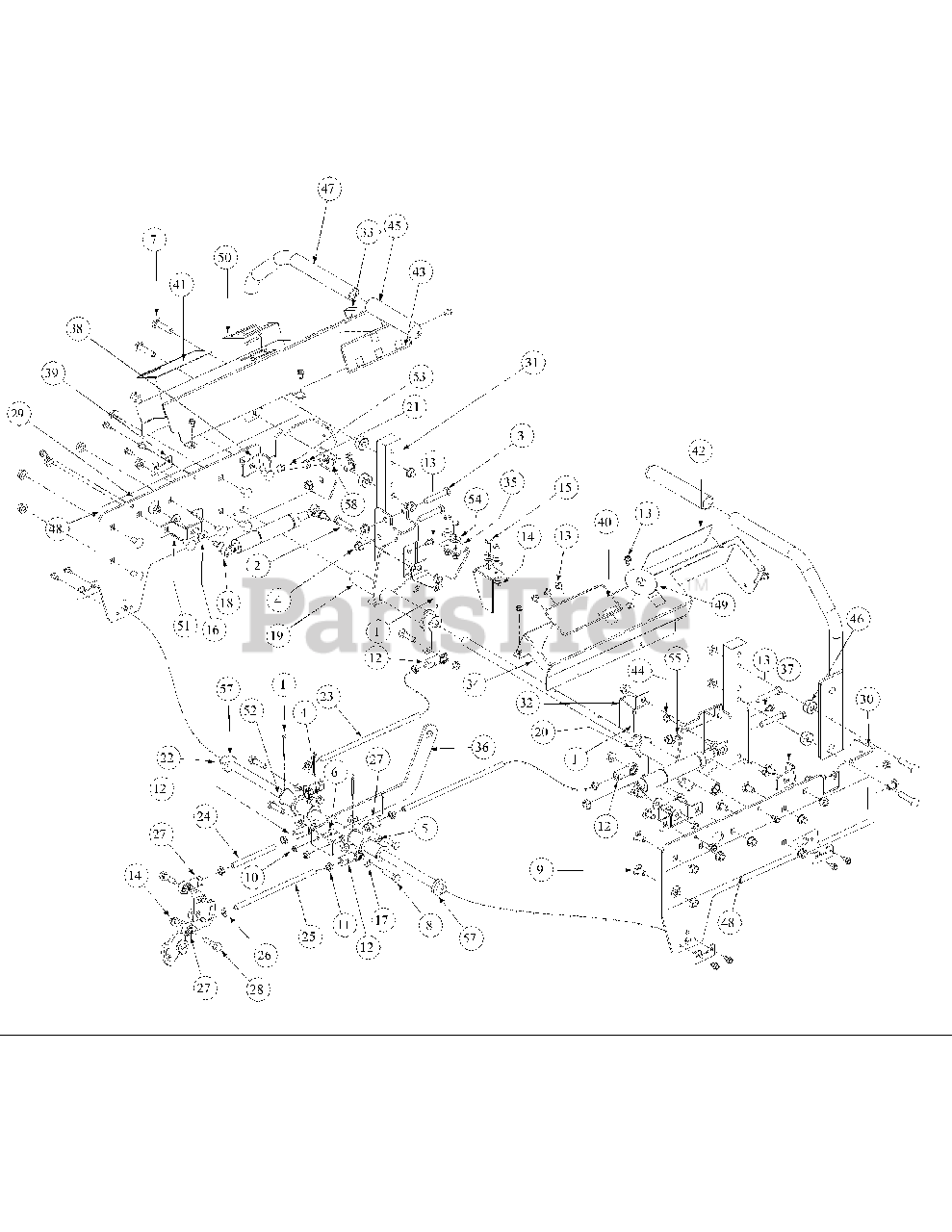

M48-KWS (53AB5D4M150) - Cub Cadet 48" Tank Zero-Turn Mower, 17hp Kawasaki Control Assembly Parts Diagram

48" Tank Zero-Turn Mower, 17hp Kawasaki

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00010980

Hex Cap Screw, 3/8-16, 1.50

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 00011861

Hex Cap Screw, 3/8-16, 2.5
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 00013131

Hex Cap Screw, 1/4-20,.75

$6.49

$

In Stock, only 1 left!

0

7

Cub Cadet 00012172

Hex Carriage Screw, 3/8-16 x 2
(Superseded to 710-3096)

$7.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16, 1.25

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-0324

Lock Hex Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

11

Cub Cadet 912-3001

Hex Jam Nut, 3/8-24

$6.99

$

In Stock, Qty 17

0

12

Cub Cadet 723-04080

B/Joint, 3/8-24, Right Hand Female

$41.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3004A

Nut, Lock, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 00013406

Hex, Cap Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

17

Cub Cadet 01002990

Belle Crank Assembly,

$

$

Not available

17

Cub Cadet 01000308

Bushing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

18

Cub Cadet 01001727

Cylinder Return to Neutral

$265.99

$

In Stock, Qty 7

0

19

Cub Cadet 01003044

Hub Assy, Control LH Bearing
(Superseded to 01003044P)

$

$

Not available

19

Cub Cadet 01004265

Bearings

$20.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01003045

Hub Assy, Control RH Bearing
(Superseded to 01003045P)

$

$

Not available

20

Cub Cadet 01004265

Bearings

$20.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01002980

Shaft Mounting Belle Crank

$

$

Not available

23

Cub Cadet 01002982

Rod Connector 3/8 OD x 10.125

$

$

Not available

24

Cub Cadet 01002983

Rod Connector, 3/8 OD x 4.28 LG LH

$

$

Not available

25

Cub Cadet 01002984

Rod Connector, 3/8 OD x 8.06 LG RH

$

$

Not available

26

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01002987

B/Joint, 3/8-24, LH Female

$

$

Not available

28

Cub Cadet 01002988

Screw, Shoulder Control Rod
(Superseded to 738-05006)

$9.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01005769

Side Panel, Control, Left

$

$

Not available

30

Cub Cadet 01003005-0637

Side Panel, Control, Right

$

$

Not available

31

Cub Cadet 01003009

Mounting Handle

$

$

Not available

32

Cub Cadet 01003011

Lever, Safety Switch

$37.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 01004889

Control Panel, LH
(Superseded to 01003099-4021)

$

$

Not available

34

Cub Cadet 01004890

Control Panel, RH
(Superseded to 01006343-4021)

$111.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01003114-0637

Switch Mounting Bracket, Lapbar

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01001968

Link Mounting Control Shaft, Bracket

$

$

Not available

37

Cub Cadet 01005771

Stop, RH

$

$

Not available

38

Cub Cadet 01005772

Stop, LH

$

$

Not available

39

Cub Cadet 01003591

Holder Shaft, Park Brake

$34.99

$

In Stock, only 1 left!

0

40

Cub Cadet 01003449

Decal , Right Hand Console

$32.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01003450

Decal, Left Hand Console

$22.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 01003451

Decal Right Hand Control

$

$

Not available

43

Cub Cadet 01003452

Decal, Left Hand Control

$28.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 01003561

Nut, Hex, Center Lock, M8 x 1.2

$

$

Not available

45

Cub Cadet 00022223

Grip, 1

$

$

Not available

46

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

47

Cub Cadet 01007359

Lapbar Handle, One Position

$

$

Not available

48

Cub Cadet 01005870

Side Label, CCC

$

$

Not available

49

Cub Cadet 01003857

Label, Ignition, 2.5 Diameter

$

$

Not available

49

Cub Cadet 01003857

Label, Ignition, 2.5 Diameter

$

$

Not available

50

Cub Cadet 01003858

Label, Control, Throttle and Choke

$

$

Not available

51

Cub Cadet 01004000-0637

Bracket Assembly, Mount Dampener

$

$

Not available

52

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

54

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

55

Cub Cadet 737-3004

Grease Fitting, 90°, 1/4-28

$11.99

$

In Stock, Qty 6

0

57

Cub Cadet 01006350

Shaft Collar, .625 ID, 1.00 OD, .438 Lg

$24.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 01003947

U-Nut, 3/8-16 x .75

$7.49

$

Usually ships in 3-6 days
