M48-KW (53CB5DAV750) - Cub Cadet 48" Tank Zero-Turn Mower, 19hp Kawasaki Fabricated Deck Spindle Assembly Parts Diagram

48" Tank Zero-Turn Mower, 19hp Kawasaki

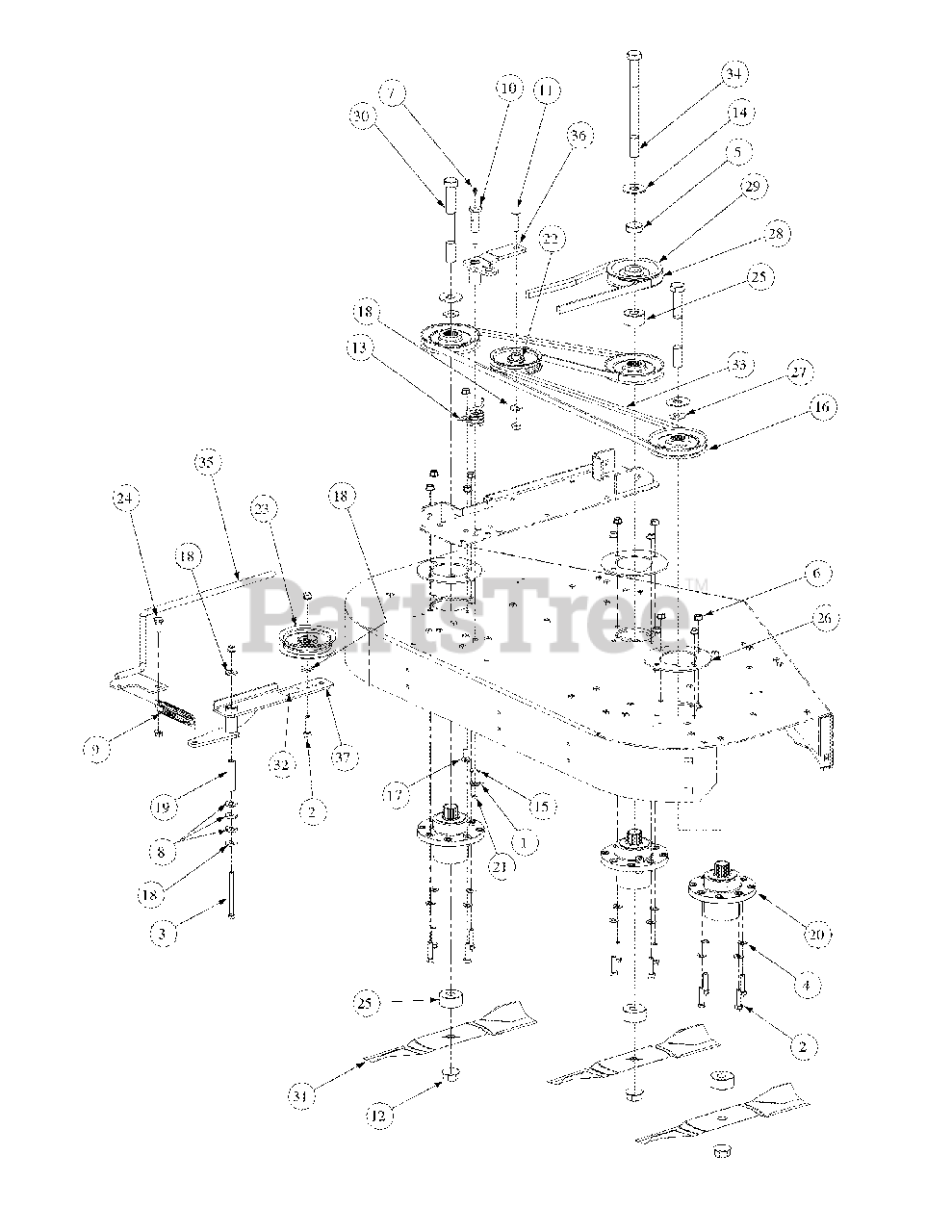

Fabricated Deck Spindle Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-1/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

Cub Cadet 00012158

Flat Washer, 3/8

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00021925

Spacer

$16.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 01000199

Spring Extension, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

10

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

12

Cub Cadet 712-3078

Hex Flange Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 932-3009

Torsion Idler Spring

$24.99

$

In Stock, only 4 left!

0

14

Cub Cadet 736-3014

Flat Washer, .781 ID, 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 936-3015

Flat Washer, .469 ID, .875 OD, .105

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 01005616

V-Pulley, 5.00 OD

$

$

Not available

17

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

18

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 12

0

21

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02005077

Flat Pulley

$35.99

$

In Stock, Qty 20+

0

23

Cub Cadet 02004447

Idler Pulley, 4.06 OD w/Deep Flange

$57.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01004118

Shoulder Screw, .50 x .27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x 1.1

$40.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01004478-0637

Spindle, Aluminum Cast Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01003123

Spacer, .812 ID x .218 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

28

Cub Cadet 01005011

V-Belt, B Section x 83.2
(Superseded to 01005011P)

$96.99

$

In Stock, only 1 left!

0

29

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 1 left!

0

31

Cub Cadet 02005017

Blade, 17.0, Hi-Lift, 0.756 ID
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

32

Cub Cadet 01006382

Decal, Idler Location

$

$

Not available

33

Cub Cadet 01005374

V-Belt, A Section x 105.3
(Superseded to 01005374P)

$68.99

$

In Stock, Qty 13

0

34

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

35

Cub Cadet 01005690

Spring Tension Rod Assembly

$111.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle

$108.99

$

In Stock, only 2 left!

0

37

Cub Cadet 02000943

Idler Arm Assembly, Flat Top Bearing
(Superseded to 02001855)

$118.99

$

In Stock, only 3 left!

0
