M48-KW (53BB5DAV750) - Cub Cadet 48" Tank Zero-Turn Mower, 19hp Kawasaki FH601V-BS27 Lubrication Equipment Parts Diagram

48" Tank Zero-Turn Mower, 19hp Kawasaki

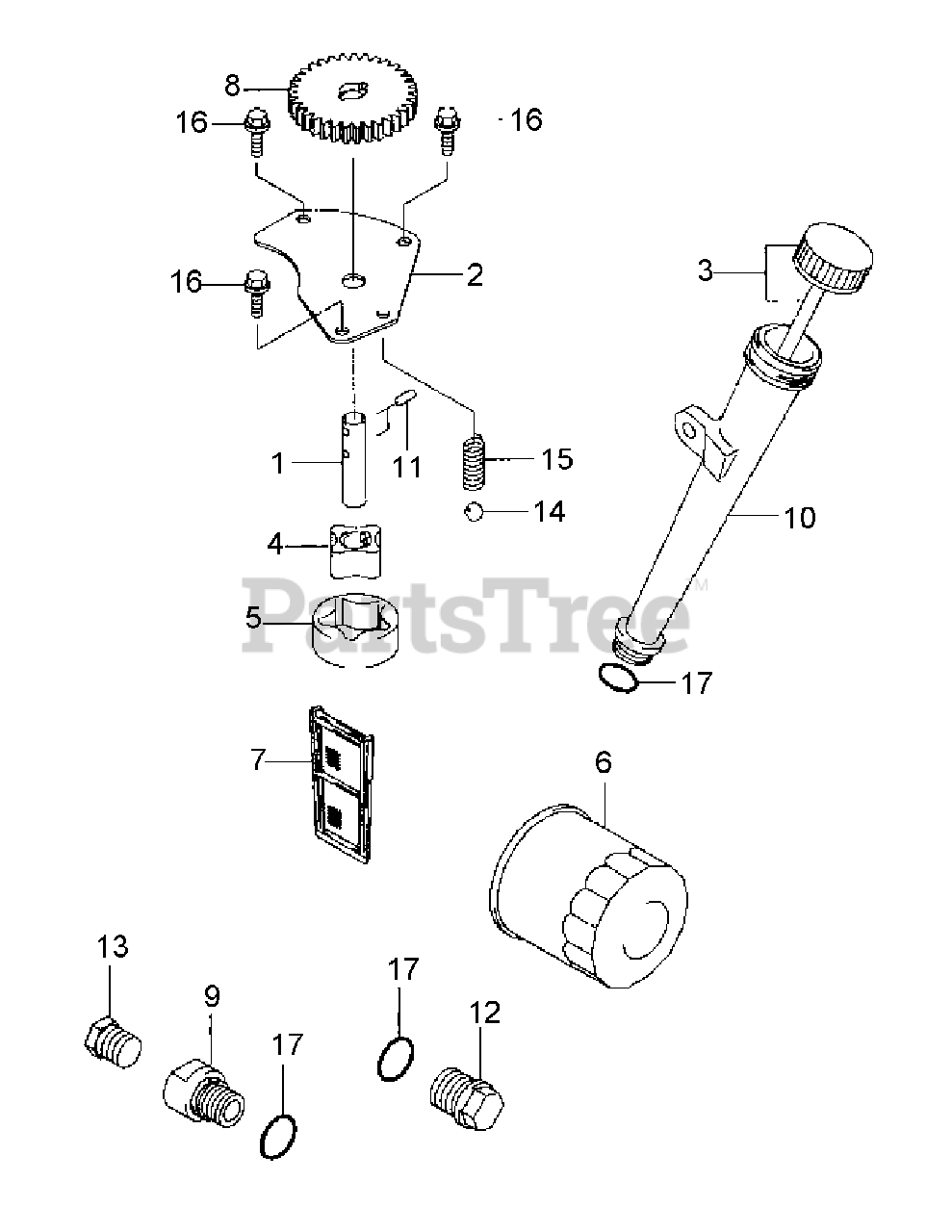

FH601V-BS27 Lubrication Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7009

SHAFT
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 2 left!

0

2

Cub Cadet KM-13271-7005

PLATE

$3.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-14075-7008

CAP-ASSY

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-16154-7007

ROTOR-PUMP, IN

$8.49

$

In Stock, Qty 6

0

5

Cub Cadet KM-16154-7008

ROTOR-PUMP, OUT

$19.99

$

In Stock, only 3 left!

0

6

Cub Cadet KM-49065-7010

FILTER-OIL
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-49065-7003

FILTER-OIL SCREEN

$3.99

$

In Stock, Qty 15

0

8

Cub Cadet KM-59051-7011

GEAR-SPUR

$65.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-59071-7004

JOINT
(Superseded to KM-59071-7023)

$8.99

$

In Stock, Qty 12

0

10

Cub Cadet KM-59231-7006

FILLER

$7.49

$

In Stock, Qty 13

0

11

Cub Cadet KM-92043-7003

PIN
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 12

0

12

Cub Cadet KM-92066-7003

PLUG
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 8

0

13

Cub Cadet KM-92066-7006

PLUG
(Superseded to KM-92066-0827)

$1.49

$

In Stock, only 3 left!

0

14

Cub Cadet KM-92140-7003

BALL

$1.49

$

In Stock, Qty 11

0

15

Cub Cadet KM-92145-7002

SPRING

$

$

Not available

16

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-670D2016

O RING, 16MM

$1.99

$

In Stock, Qty 20+

0
