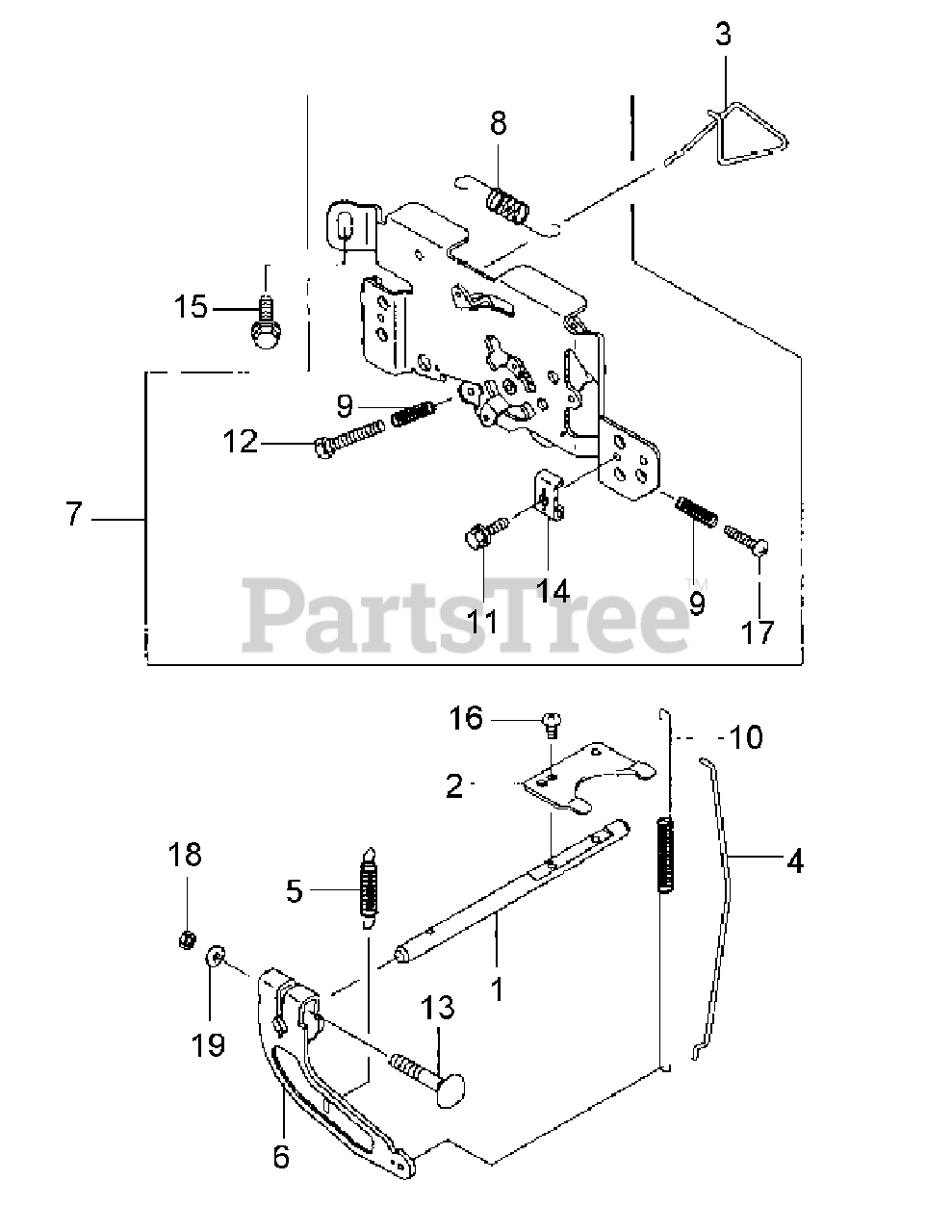

M48-KW (53BB5DAV750) - Cub Cadet 48" Tank Zero-Turn Mower, 19hp Kawasaki FH601V-BS27 Control Equipment Parts Diagram

48" Tank Zero-Turn Mower, 19hp Kawasaki

FH601V-BS27 Control Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7013

SHAFT
(Superseded to KM-13107-0751)

$12.99

$

In Stock, only 3 left!

0

2

Cub Cadet KM-13271-7032

PLATE

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet KM-16169-7006

CHOKE LINK
(Superseded to KM-16169-0009)

$3.49

$

In Stock, only 4 left!

0

4

Cub Cadet KM-16171-7004

LINK
(Superseded to KM-16171-0040)

$2.49

$

In Stock, Qty 20+

0

5

Cub Cadet KM-39129-7004

GOVERNOR SPRING

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet KM-49103-7004

GOVERNOR ARM

$7.99

$

In Stock, only 2 left!

0

7

Cub Cadet KM-49113-7016

CONTROL PANEL

$60.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-92145-7032

SPRING
(Superseded to KM-92145-2180)

$0.99

$

In Stock, only 2 left!

0

9

Cub Cadet KM-92145-7005

SPRING

$0.99

$

In Stock, only 2 left!

0

10

Cub Cadet KM-92145-7034

SPRING

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-92150-2182

BOLT, 5x18

$0.99

$

In Stock, Qty 10

0

12

Cub Cadet KM-92151-7014

BOLT, 5x30

$1.49

$

In Stock, Qty 5

0

13

Cub Cadet KM-92153-7033

BOLT, 6x35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

14

Cub Cadet KM-92170-7001

CLAMP

$2.99

$

In Stock, only 3 left!

0

15

Cub Cadet KM-130BA0612

FLANGED BOLT

$1.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-214AA0408

PAN SCREW

$3.99

$

In Stock, Qty 5

0

17

Cub Cadet KM-220B0425

PAN SCREW

$

$

Not available

18

Cub Cadet KM-311AA0600

NUT-HEX

$0.99

$

In Stock, Qty 16

0

19

Cub Cadet KM-411B0600

PLAIN WASHER
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0
