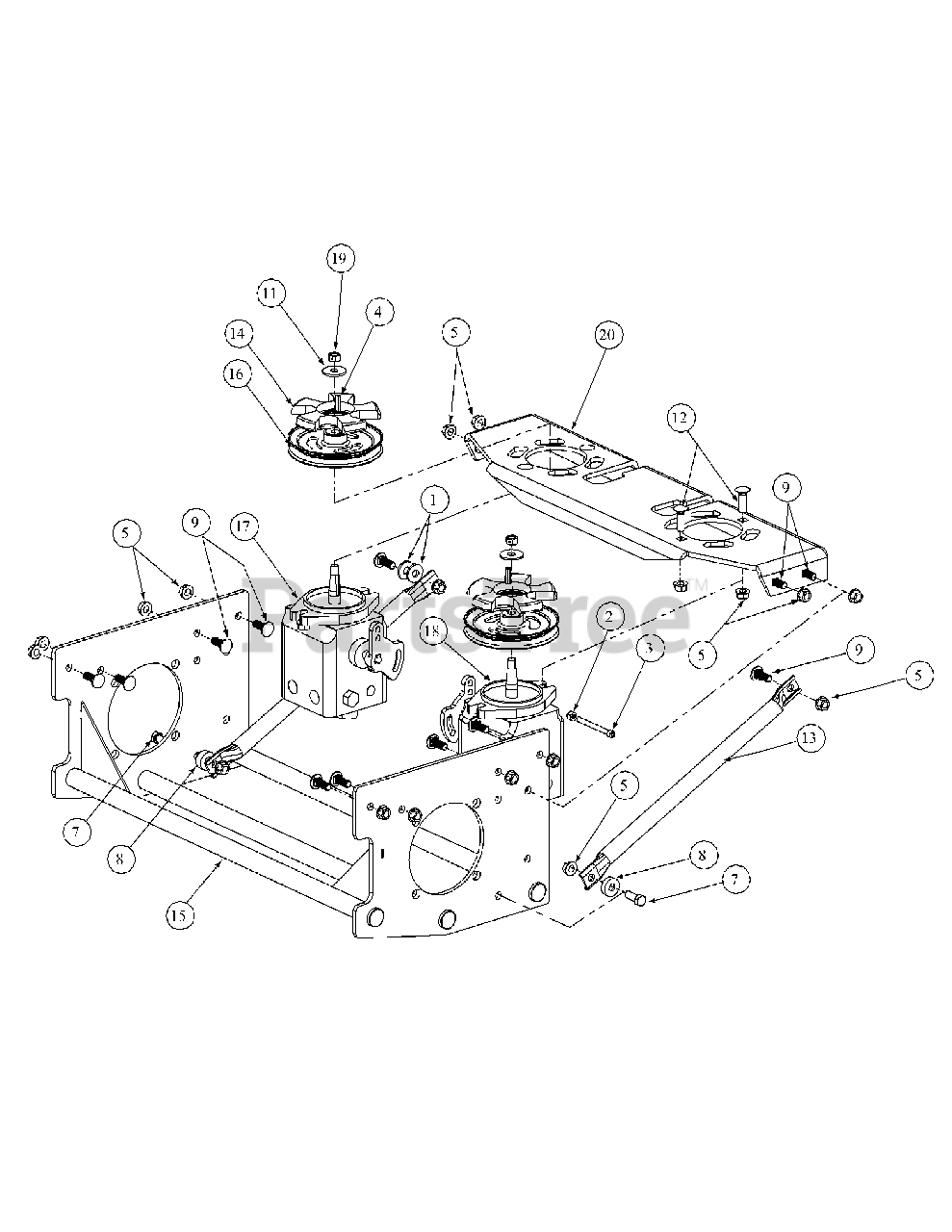

M48-KW (53BB5DAV750) - Cub Cadet 48" Tank Zero-Turn Mower, 19hp Kawasaki Drive Assembly Parts Diagram

48" Tank Zero-Turn Mower, 19hp Kawasaki

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0169

Washer lock 3/8 zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00019962

Socket Head Cap Screw, 1/4-20 x 2-1/2

$

$

Not available

4

Cub Cadet 00020628

Key, 3/16" x 7/8"

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3005

Hex Cap Screw, 2/8 -16 x 1.25

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

11

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

12

Cub Cadet 710-3034

Carriage Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 01002593-0637

Strut Frame

$

$

Not available

14

Cub Cadet 01005339

Hydro Pulley Fan
(Superseded to 17199-0637)

$90.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01006728

Hydro Motor Frame Assembly

$

$

Not available

16

Cub Cadet 01006799

Hydro Pulley Pump

$181.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01006936P

Hydro Pump, LH

$1745.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01006937P

Hydro Pump, RH

$1490.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01007309

Hex Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01006735

Hydro Pump Mounting Weldment

$

$

Not available
