M48-KW (53BB5DAV150) - Cub Cadet 48" Tank Zero-Turn Mower, 19hp Kawasaki (2003 1/2) Hydro Pump Assembly Parts Diagram

48" Tank Zero-Turn Mower, 19hp Kawasaki

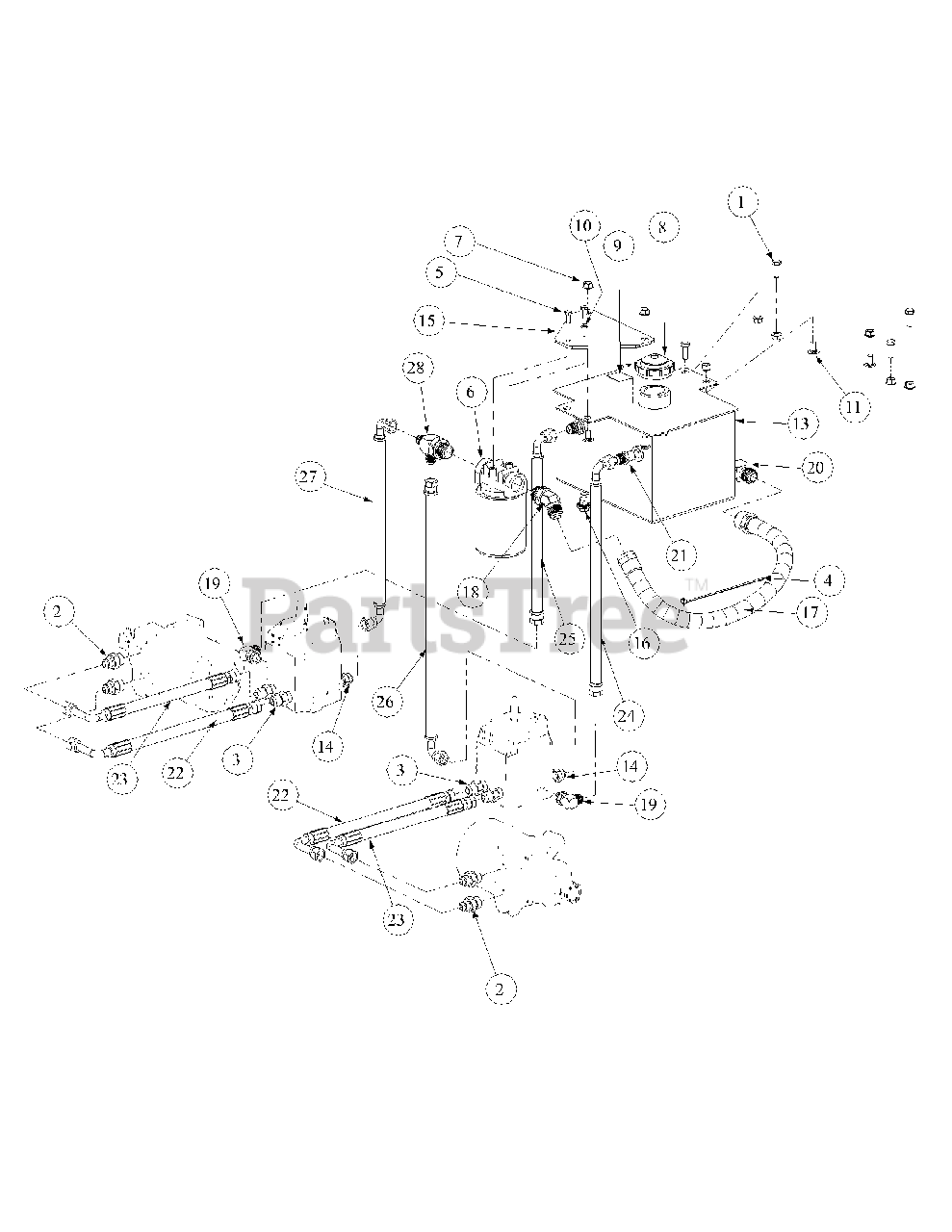

Hydro Pump Assembly Parts Diagram

  • Title
1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, 1

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00012288

Fitting 1/2 x 3/4 - O Ring

$

$

Not available

3

Cub Cadet 00012426

Fitting 1/2 x 3/4 - O Ring to Flare

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00017665P

Filter Head 3/4

$

$

Not available

$50.99

$

In Stock, only 4 left!

0

7

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030261

Cap, Hydro Oil Tank

$36.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00031994

Decal Oil Only 20W50

$

$

Not available

10

Cub Cadet 936-0329

Lock Washer, 1/4

$4.49

$

In Stock, Qty 11

0

11

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 LG.

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01004516

Hydraulic Tank Assembly

$

$

Not available

14

Cub Cadet 01002606

Fitting Connector, 1/2 x 3/8

$

$

Not available

15

Cub Cadet 01001650

Oil Filter Mounting Plate

$

$

Not available

16

Cub Cadet 738-0940

Oil Pan Drain w/ Seal and Plug

$8.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 01004268

Tank to Filter Hose Assembly

$

$

Not available

18

Cub Cadet 01004272

Connector, 3/4 x3/4

$

$

Not available

19

Cub Cadet 01004542

Elbow Fitting, 3/8 O-ring, 1/2 Flare

$36.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01004702

Fitting Elbow, 1/2 x 1/2

$

$

Not available

21

Cub Cadet 01006353

Fitting, 3/8 NPT, 1/2 Flare

$

$

Not available

22

Cub Cadet 01006874

Long Pressure Hose Assembly

$134.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01006893

Short Pressure Hose Assembly

$134.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01006901

17.75" Return Hose Assembly, RH

$

$

Not available

25

Cub Cadet 01006902

14" Return Hose Assembly, LH

$114.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01006914

21.25" Supply Hose Assembly, RH

$

$

Not available

27

Cub Cadet 01006916

15.50" Supply Hose Assembly, LH

$186.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01006959

Tee Fitting, 3/4 x 1/2 x 1/2

$

$

Not available
