M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2010) Kawasaki FH680V-DS29 Control Equipment Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

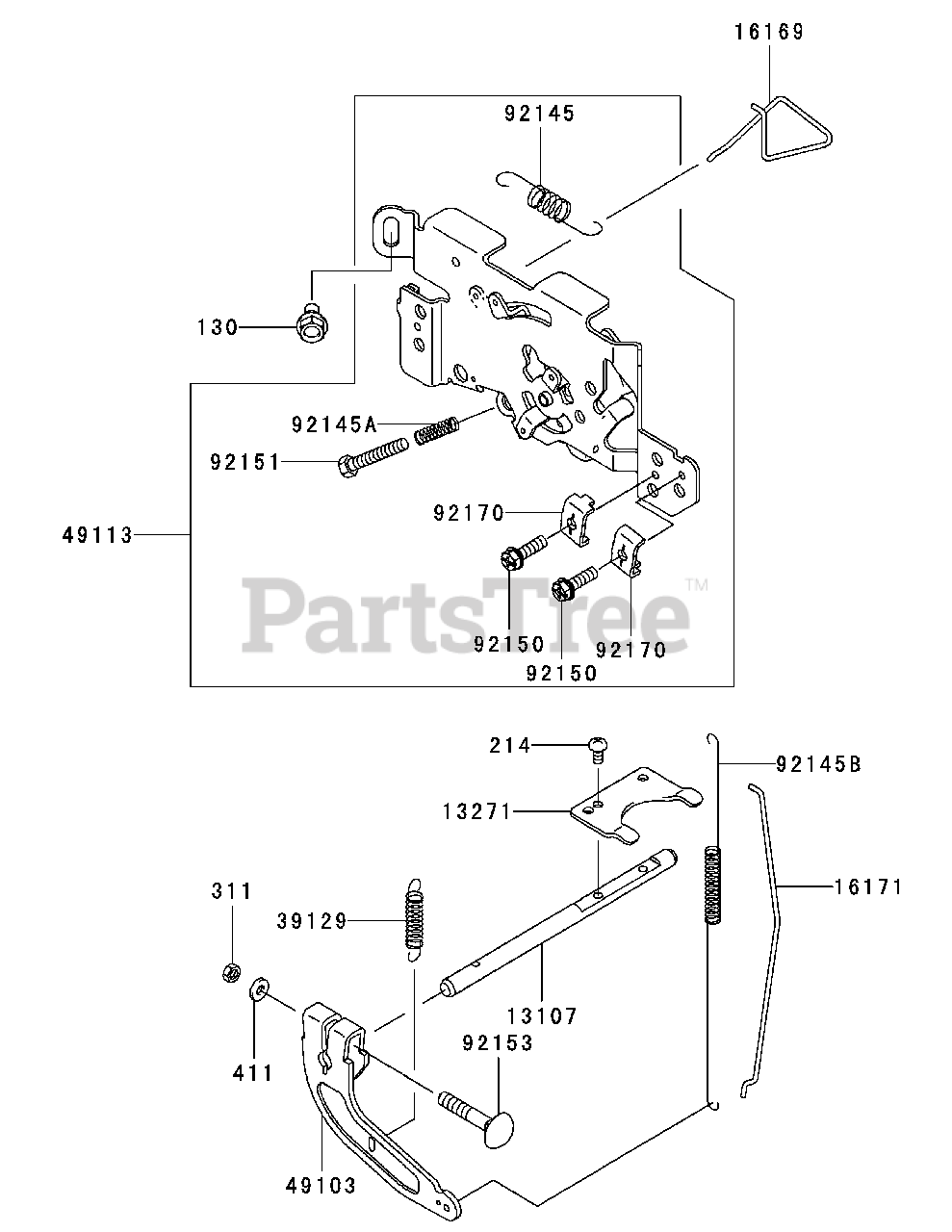

Kawasaki FH680V-DS29 Control Equipment Parts Diagram

  • Title

13107

Cub Cadet KM-13107-7013

Shaft, Governor
(Superseded to KM-13107-0751)

$12.99

$

In Stock, only 3 left!

0

13271

Cub Cadet KM-13271-7032

Plate

$3.99

$

In Stock, Qty 6

0

16169

Cub Cadet KM-16169-7006

Link-Choke
(Superseded to KM-16169-0009)

$3.49

$

In Stock, only 4 left!

0

16171

Cub Cadet KM-16171-7004

Link
(Superseded to KM-16171-0040)

$2.49

$

In Stock, Qty 20+

0

39129

Cub Cadet KM-39129-7012

Spring-Governor

$5.49

$

In Stock, only 1 left!

0

49103

Cub Cadet KM-49103-7004

Arm-Governor

$7.99

$

In Stock, only 2 left!

0

49113

Cub Cadet KM-49113-7017

Panel-Comp-Control

$27.99

$

In Stock, only 1 left!

0

92145

Cub Cadet KM-92145-7004

Spring
(Superseded to KM-92145-2180)

$0.99

$

In Stock, only 2 left!

0

92145A

Cub Cadet KM-92145-7005

Spring

$0.99

$

In Stock, only 2 left!

0

92145B

Cub Cadet KM-92145-7034

Spring

$3.49

$

In Stock, Qty 20+

0

92150

Cub Cadet KM-92150-2182

Bolt,5x18

$0.99

$

In Stock, Qty 10

0

92151

Cub Cadet KM-92151-7014

Bolt,6x12

$1.49

$

In Stock, Qty 5

0

92153

Cub Cadet KM-92153-7033

Bolt,6x35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

92170

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, only 3 left!

0

130

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214B0408

Screw-pan
(Superseded to KM-214AA0408)

$3.99

$

In Stock, Qty 5

0

311

Cub Cadet KM-311B0600

Nut-Hex, 6MM
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 16

0

411

Cub Cadet KM-411B0600

Washer-Plain
(Superseded to KM-411AA0600)

$4.49

$

In Stock, only 2 left!

0
