M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2010) Fabricated Deck Spindle Assembly 48-Inch Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

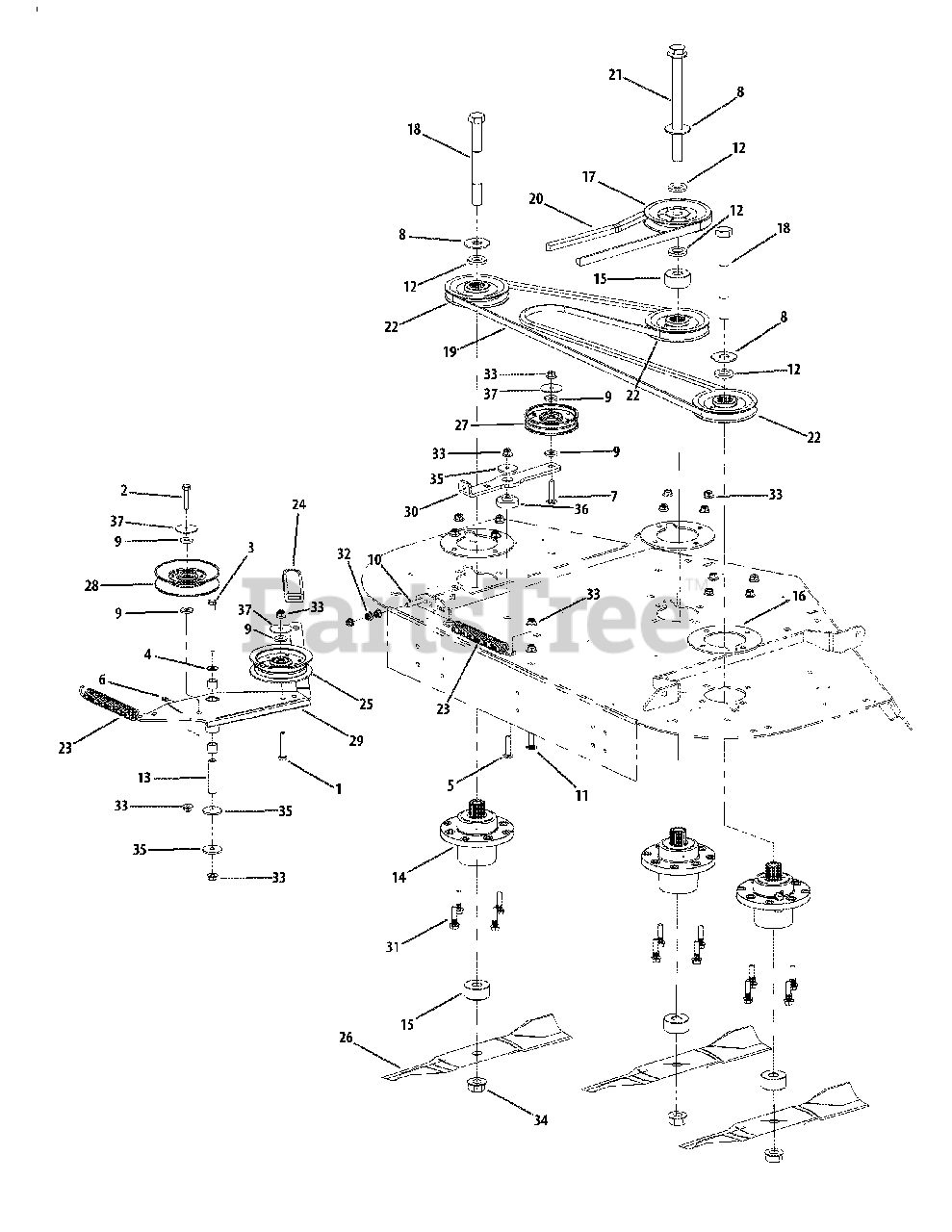

Fabricated Deck Spindle Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

Cub Cadet 00012158

Washer, 3/8

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

7

Cub Cadet 00014270

Hex Carriage Screw, 3/8-16, 2.00
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

8

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01003532P

Aluminum Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 12

0

15

Cub Cadet 01004415

Spacer, .760 ID x 2.000 OD x .900

$40.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01004478-0637

Spindle, Aluminum Cast Support Plt
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01005201

V-Pulley 5.25 OD

$130.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01005213

Hex Cap Screw, 3/4-16, 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01005374

V-Belt, A Section x 105.3
(Superseded to 01005374P)

$68.99

$

In Stock, Qty 13

0

20

Cub Cadet 01005378

V-Belt, B Section x 87.2
(Superseded to 01005378P)

$71.99

$

In Stock, only 1 left!

0

21

Cub Cadet 01005388

Hex Cap Screw, 3/4-16, 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

22

Cub Cadet 01005616

V-Pulley, 5.00 OD

$

$

Not available

23

Cub Cadet 02003712

Extension Spring, .94 OD x 7.57 LG
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

24

Cub Cadet 02003740

Idler Tension Handle Grip

$10.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02004447

Idler Pulley, 4.06 OD w/Deep Flange

$57.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02005017

Blade, 17.0, Hi-Lift, 0.756 ID
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02005077

Idler Pulley, 4.06 Dia.

$35.99

$

In Stock, Qty 20+

0

28

Cub Cadet 02005079

Idler Pulley, 5.06 Dia.
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

29

Cub Cadet 02005509P

Idler Arm Assembly includes:

$100.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

30

Cub Cadet 703-07010

Idler Arm

$19.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-04829

Bolt, 3/8-16 x 1.50

$6.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 712-04063

Nut, Nylon Insert, 5/16-18

$3.99

$

In Stock, Qty 5

0

33

Cub Cadet 712-04065

Nut, Nylon Insert, 3/8-16

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-3078

Nut, 3/4-16, Flangelock

$9.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0227

Washer, .390 x 1.50 x .134
(Superseded to 736-0227)

$

$

Not available

36

Cub Cadet 738-04376

Shoulder Spacer, .854 x .280

$9.99

$

In Stock, only 3 left!

0

37

Cub Cadet 736-3040

Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0
