M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Lift Assembly (2008 & Before) Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

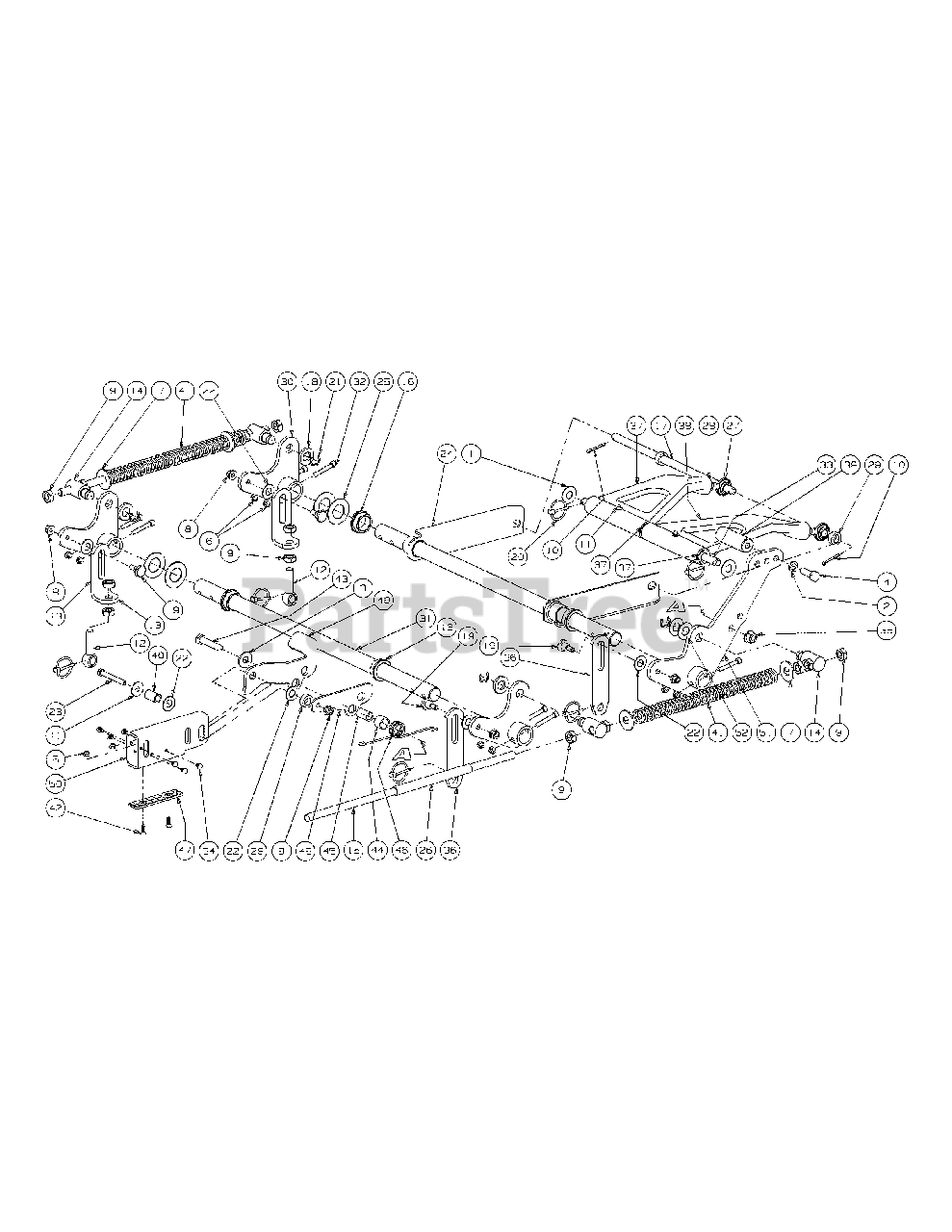

Lift Assembly (2008 & Before) Parts Diagram

  • Title

1

Cub Cadet 00002766

Washer, 1.5 x .655 x .055

$3.49

$

In Stock, only 4 left!

0

2

Cub Cadet 936-0921

Lock Washer, 1/2
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

3

Cub Cadet 936-0160

Flat Washer, .536 ID x .930 OD x .05

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 00011951

Hex Cap Screw, 1/2-13 x 1.50

$

$

Not available

5

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$4.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00012165

Nut, 5/16-18, Nylock

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00013432

Flat Washer, 5/8

$8.49

$

In Stock, Qty 7

0

8

Cub Cadet 00022560

Hex Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, only 2 left!

0

10

Cub Cadet 00060018

Cotter Pin, 3/16 x 1-1

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 936-0133

Flat Washer, 1.25 x .411 x .100
(Superseded to 736-0133)

$

$

Not available

12

Cub Cadet 01001744

Eye Bolt, 5/8ID
(Superseded to 710-05355)

$17.99

$

In Stock, only 2 left!

0

13

Cub Cadet 01001746-0637

Eye Bolt Mount Link, 5/8 ID

$34.99

$

In Stock, only 1 left!

0

14

Cub Cadet 01001855

Ferule Lift

$62.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01001857

Lift Connector Rod

$46.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01001930

Hex Flange Bearing, 1.25 ID

$19.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01002586

Front Lift Link, Rod Mount

$46.99

$

In Stock, only 3 left!

0

18

Cub Cadet 01003123

Spacer, .812 ID x .268 Lg.
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 01003535

Shoulder Screw, 0.625 OD x .437 Lg.

$28.99

$

In Stock, only 2 left!

0

20

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

21

Cub Cadet 01003994

E Clip, 3/4 Dia.

$6.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01004003

Nylon Flat Washer, 5/8
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 8

0

23

Cub Cadet 01004127

HHCS, 3/8-16, 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 10

0

24

Cub Cadet 02005223-0637

Front Frame Strut Assembly

$51.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01006408

Flat Washer, 1.25 ID

$12.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01006823

Hose, 5/8 ID 13/16 OD, 8" LG

$

$

Not available

27

Cub Cadet 01007487

Rod End, Male

$89.99

$

In Stock, only 3 left!

0

28

Cub Cadet 01007526

Jam Nut, 5/8-18

$

$

Not available

29

Cub Cadet 01007527

Spacer, .630 ID x 1.06 OD x .440

$12.99

$

In Stock, only 2 left!

0

30

Cub Cadet 01007680-0637

Bellecrank Weldment Assembly

$

$

Not available

31

Cub Cadet 01007681

Deck Lift Shaft

$178.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 01007962

Socket Head CapScrew, 5/16-18 x 2

$3.99

$

In Stock, only 2 left!

0

33

Cub Cadet 01008453

Lift Link Rod

$38.99

$

In Stock, only 1 left!

0

34

Cub Cadet 01008801

Rivet, 1/4 x 5/8

$

$

Not available

35

Cub Cadet 01010119

Nut, 1/2-13, FlangeLock

$7.49

$

In Stock, only 2 left!

0

36

Cub Cadet 02000561-0637

Deck Link

$

$

Not available

37

Cub Cadet 02002708P

Bearing Lift Brace Assembly, Left Hand includes:

$203.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 737-04345

Grease Fitting

$4.99

$

In Stock, Qty 6

0

37

Cub Cadet 02002384

Bearing

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet 02002709P

Bearing Lift Brace Assembly, Right Hand includes:

$

$

Not available

38

Cub Cadet 737-04345

Grease Fitting

$4.99

$

In Stock, Qty 6

0

38

Cub Cadet 02002384

Bearing

$4.49

$

In Stock, only 4 left!

0

39

Cub Cadet 02002596

Deck Lift Foot Pedal

$29.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 02003043

Spacer, .375 ID x .625 OD x 2.20

$5.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02002959

Lift Compression Spring

$13.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 02003505

Flat Head Cap Screw, 1/4-20 x .75

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 02003585

HHCS, 1/2-13 x 2.50
(Superseded to 710-04824)

$8.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 02003586

Spacer, .76 ID x 1.0 OD x .75

$

$

Not available

45

Cub Cadet 02002655

Spacer, .51 ID x .75 OD x 1.240

$2.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 02003588

Torsion Spring, .120 Wire x 1.32 OD

$

$

Not available

47

Cub Cadet 02003749

Lift Wear Plate

$33.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 02005048-0637

Yoke Plate

$13.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 02005050-0637

Lift Link Bracket

$

$

Not available

50

Cub Cadet 02005103-0637

Lift Tube, 3.0 x 1.5

$

$

Not available

51

Cub Cadet 02005137-0637

Deck Lift Foot Pedal Weldment

$101.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 736-0188

Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0
