M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Kawasaki FH680V-DS29 Lubrication Equipment Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

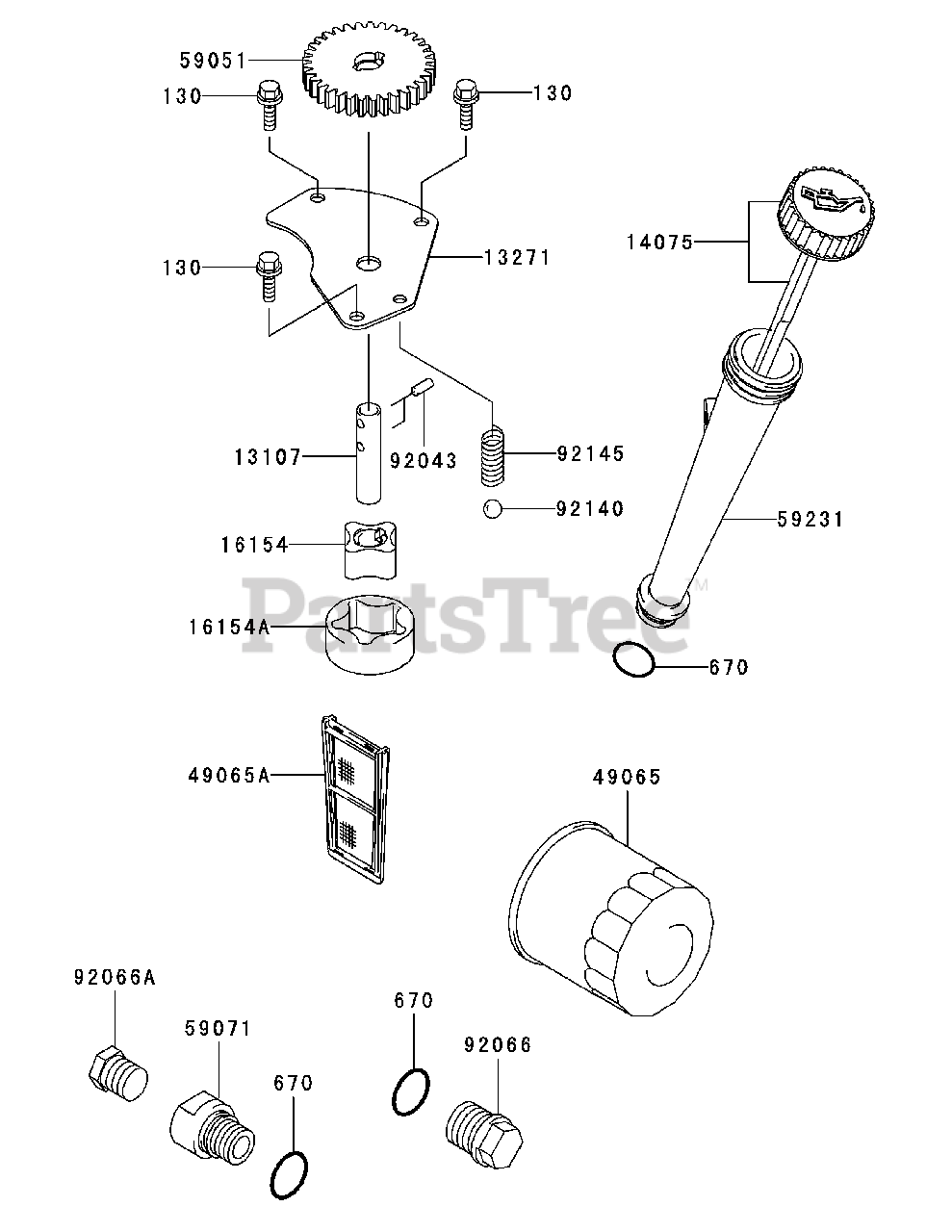

Kawasaki FH680V-DS29 Lubrication Equipment Parts Diagram

  • Title

13107

Cub Cadet KM-13107-7009

Shaft
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 2 left!

0

13271

Cub Cadet KM-13271-7005

Plate

$3.99

$

Usually ships in 2-5 days

0

14075

Cub Cadet KM-14075-7008

Cap-Assy

$11.99

$

In Stock, only 1 left!

0

16154

Cub Cadet KM-16154-7007

Rotor-Pump,In

$8.49

$

In Stock, Qty 6

0

16154A

Cub Cadet KM-16154-7008

Rotor-Pump,Out

$19.99

$

In Stock, only 3 left!

0

49065

Cub Cadet KM-49065-2078

Filter, Oil
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

49065A

Cub Cadet KM-49065-7003

Filter, Oil Screen

$3.99

$

In Stock, Qty 15

0

59051

Cub Cadet KM-59051-7011

Gear-Spur

$65.99

$

In Stock, only 1 left!

0

59071

Cub Cadet KM-59071-7004

Joint
(Superseded to KM-59071-7023)

$8.99

$

In Stock, Qty 12

0

59231

Cub Cadet KM-59231-7006

Filler

$7.49

$

In Stock, Qty 13

0

92043

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 12

0

92066

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 8

0

92066A

Cub Cadet KM-92066-7006

Plug
(Superseded to KM-92066-0827)

$1.49

$

In Stock, only 3 left!

0

92140

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 11

0

92145

Cub Cadet KM-92145-7002

Spring

$

$

Not available

130

Cub Cadet KM-130B0612

Bolt-Flanged, 6x12
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670D2016

O-Ring, 16MM

$1.99

$

In Stock, Qty 20+

0
