M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Kawasaki FH680V-DS29 Fuel Tank & Fuel Valve Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

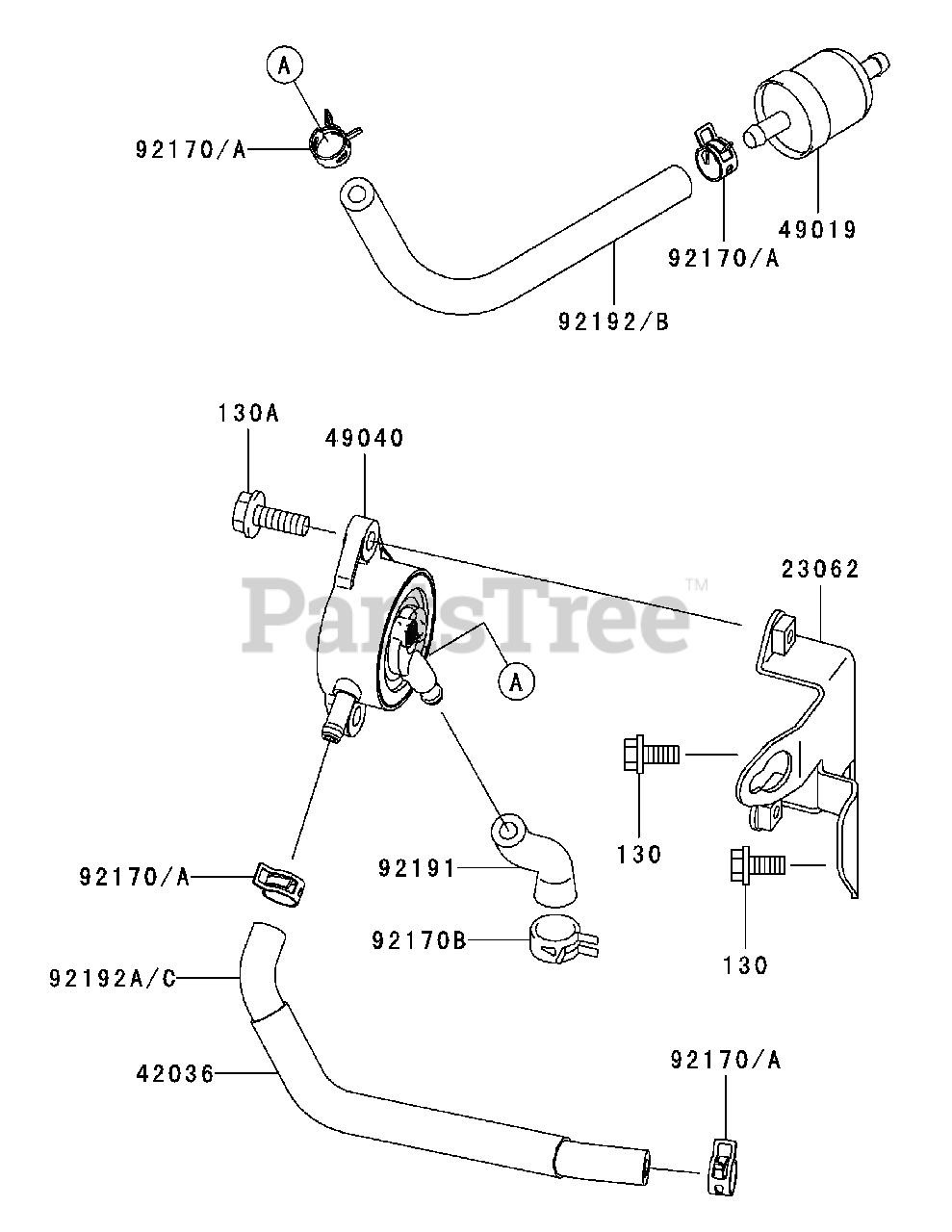

Kawasaki FH680V-DS29 Fuel Tank & Fuel Valve Parts Diagram

  • Title

23062

KM-23062-7004-9H

Bracket-Comp

$

$

Not available

42036

Cub Cadet KM-42036-7012

Sleeve

$1.99

$

Usually ships in 2-5 days

0

49019

Cub Cadet KM-49019-0014

Filter-Fuel
(Superseded to KM-49019-0027)

$9.99

$

In Stock, Qty 20+

0

49040

Cub Cadet KM-49040-7001

Pump-Fuel
(Superseded to KM-49040-0769)

$37.99

$

Usually ships in 2-5 days

0

92170

Cub Cadet KM-92170-2009

Clamp
(Superseded to KM-92173-1582)

$2.99

$

In Stock, Qty 20+

0

92170A

Cub Cadet KM-92170-2088

Clamp
(Superseded to KM-92173-1582)

$2.99

$

In Stock, Qty 20+

0

92170B

Cub Cadet KM-92170-7003

Clamp

$1.49

$

In Stock, only 2 left!

0

92191

Cub Cadet KM-92191-7027

Tube

$3.99

$

In Stock, only 1 left!

0

92192

Cub Cadet KM-92192-7037

Tube, 6.35 x 12.7x160

$

$

Not available

92192A

Cub Cadet KM-92192-7039

Tube, 6.35x12.7x200

$5.49

$

In Stock, only 1 left!

0

92192B

Cub Cadet KM-92192-7055

Tube, 6.2x13.2x160

$43.99

$

Usually ships in 2-5 days

0

92192C

Cub Cadet KM-92192-7057

Tube, 6.2x13.2x200

$

$

Not available

130

Cub Cadet KM-130B0616

Bolt-Flanged, 6x16
(Superseded to KM-130BA0616)

$1.49

$

In Stock, only 2 left!

0

130A

Cub Cadet KM-130B0620

Bolt-Flanged, 6x20

$

$

Not available
