M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Kawasaki Engine Accessories 23HP Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

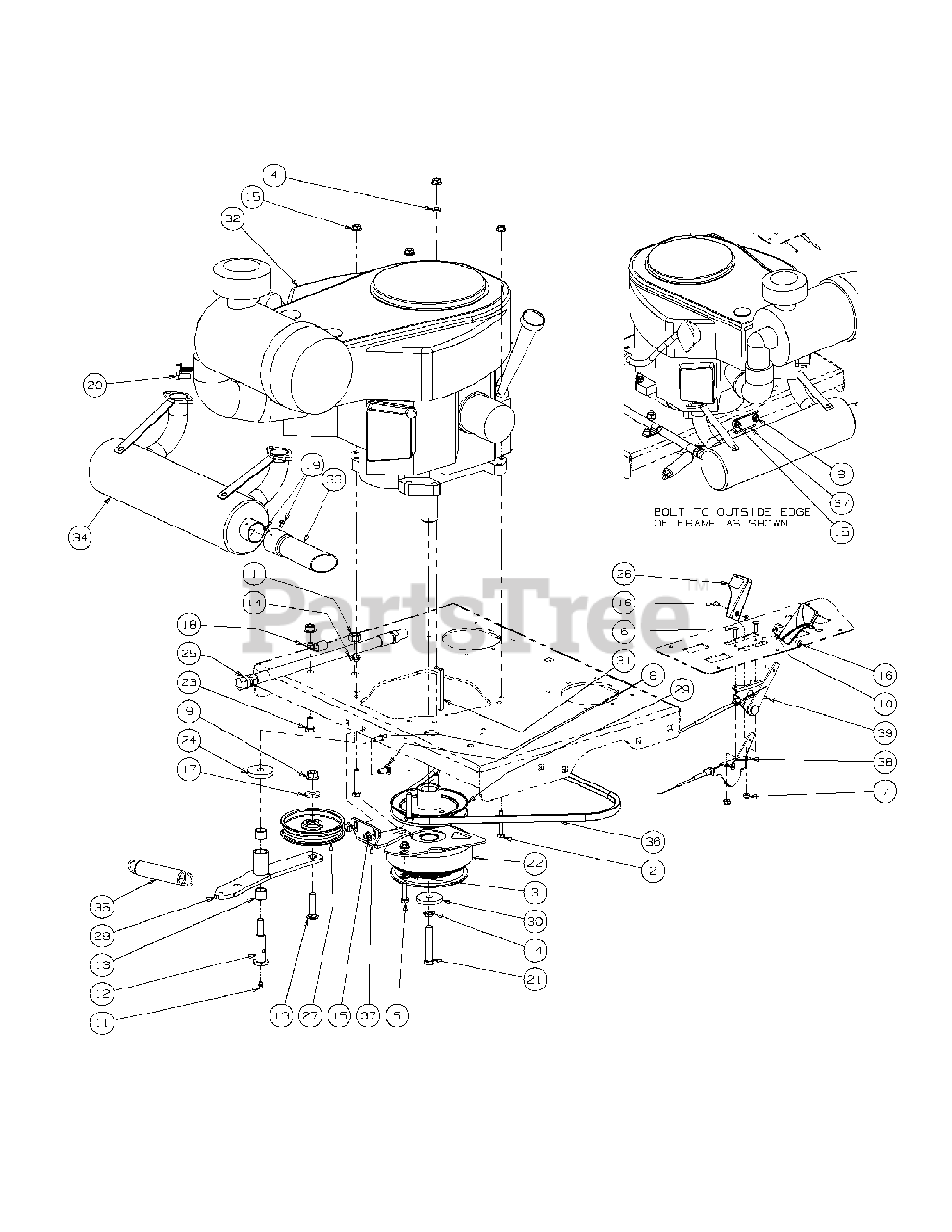

Kawasaki Engine Accessories 23HP Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

4

Cub Cadet 00012169

Flat Washer, .320 ID x .591 OD x .078

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

6

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

7

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

Cub Cadet 00020508

Carriage Bolt, 5/16-18 x .75

$6.99

$

In Stock, only 3 left!

0

9

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, Qty 5

0

15

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-0148

Screw, #8-32 x 0.375

$4.49

$

In Stock, Qty 16

0

20

Cub Cadet 01000981

Hex Head Cap Screw, M10 x 1.25, 20mm

$

$

Not available

21

Cub Cadet 01001395

Capscrew, 7/16-20 x 2.50

$4.99

$

In Stock, only 2 left!

0

22

Cub Cadet 02004878P

Clutch Brake, 1.125 ID

$862.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 14

0

24

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

25

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

28

Cub Cadet 02004075

Engine Idler Arm Assembly Includes:

$

$

Not available

28

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

29

Cub Cadet 01005104

Pump Drive Pulley
(Superseded to 756-06263)

$92.99

$

In Stock, only 1 left!

0

30

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, only 1 left!

0

31

Cub Cadet 01005856

Key, 1/4 x 1/4 x 3

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 01008523P

23HP Engine, Kawasaki

$

$

Not available

33

Cub Cadet 02005082

Muffler Accessory Exhaust Tube

$38.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 01009299

Muffler Accessory, Kawasaki
(Superseded to 01009299P)

$

$

Not available

35

Cub Cadet 01009635

Extension Spring, .98 OD x 5.00

$19.99

$

In Stock, only 1 left!

0

36

Cub Cadet 01007015

V Belt, A Section x 51.2
(Superseded to 01007015P)

$36.99

$

In Stock, Qty 10

0

37

Cub Cadet 02001992-0637

Retainer Clutch Assembly, Ogura

$30.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 02003421

Throttle, Control Cable
(Superseded to 02003421P)

$38.99

$

In Stock, only 1 left!

0

39

Cub Cadet 02003422P

Choke, Control Cable, 43.0

$131.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-11013-7019

Air Filter

Note: Not shown

$31.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7020

Pre Filter

Note: Not shown

$28.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49019-0707

Fuel Filter
(Superseded to KM-49019-0027)

Note: Not shown

$9.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

Note: Not shown

$18.99

$

In Stock, Qty 20+

0

Cub Cadet KM-BPR4ES

Spark Plug

Note: Not shown

$3.99

$

In Stock, Qty 20+

0
