M48-KW (53AI8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki (2009 & Before) Control Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

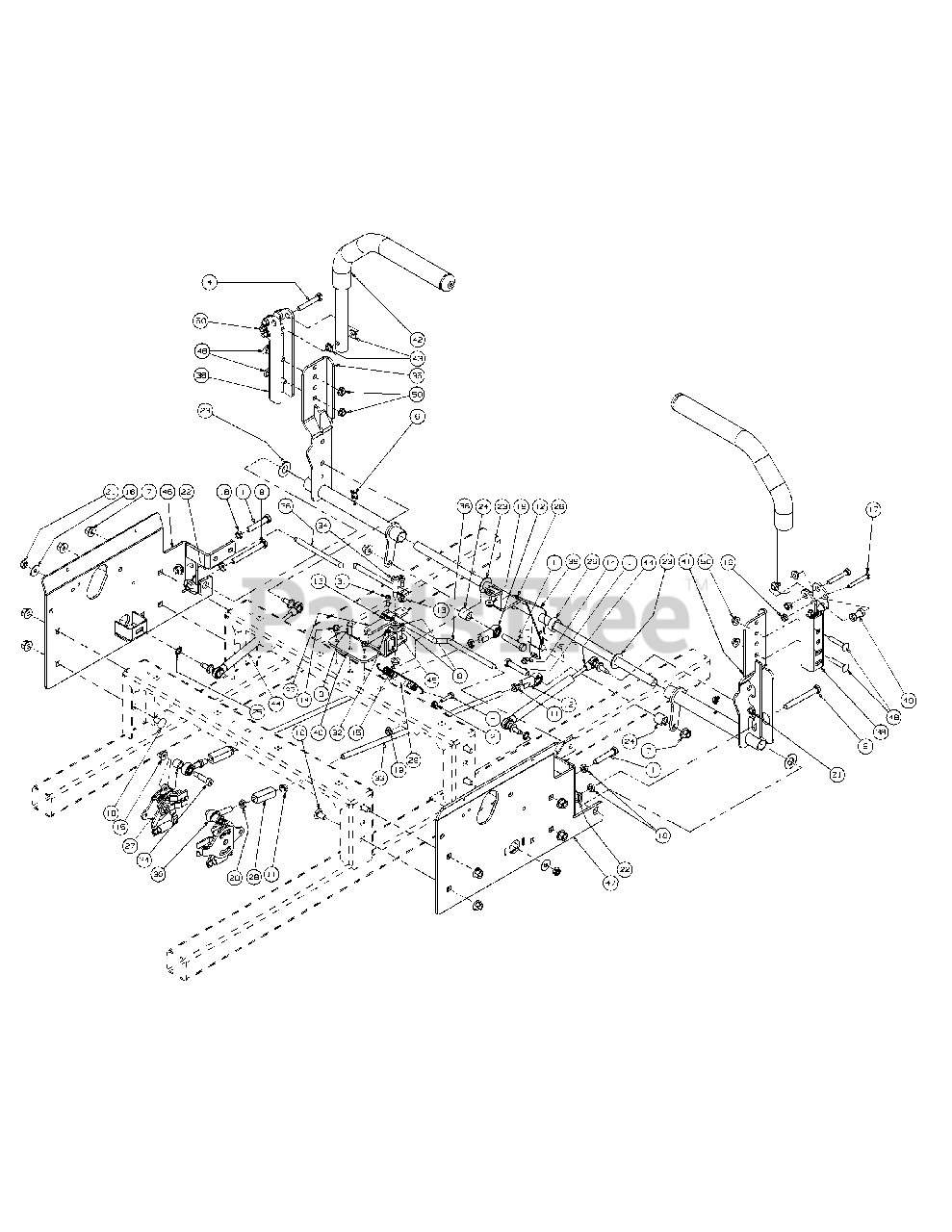

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00012186

Hex Nut, 1/4-20

$

$

Not available

3

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20, .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2.00
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00013416

HHCS, 1/4-20 x 1.00
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 13

0

6

Cub Cadet 00021958

Grease Fitting, 1/4-28, 45 degree

$5.49

$

In Stock, only 4 left!

0

7

Cub Cadet 00022560

Hex Nut, 3/8-16, Lock Flange
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00061053

Washer, 3/8, SS

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 02003666

Hex Cap Screw, 3/8-16 x 3.50

$

$

Not available

10

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0711

Hex Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01000451

B/Joint, 3/8-24, Right Hand Female
(Superseded to 723-04080)

$41.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 936-0463

Flat Washer, 1.4 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3004A

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 936-0425

Belle Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

17

Cub Cadet 01006898

Hex Cap Screw, 1/4-20 x 2.00

$6.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 712-04064

Hex Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 01002986

Nut, 3/8-24, Jam, LH Third

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

22

Cub Cadet 01003947

U-Nut, 3/8-16, .75

$7.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 01004003

Flat Washer, 5/8 Nylon
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 01004129

Spacer, .385 ID x .75 OD x .875

$28.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01005851

External Washer, 3/8
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 01006350

Shaft Collar

$24.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01007312

Spacer, .625 OD x .385 ID x 1/2

$22.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01007734

Turnbuckle

$31.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 932-0470A

Extension Spring, .53 OD x 4.75

$9.99

$

In Stock, only 4 left!

0

30

Cub Cadet 01008367

B/Joint, 3/8-24, Left Hand Female

$46.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 01009322

Shoulder Bolt, 1/4 x 1/4

$

$

Not available

32

Cub Cadet 01009377

Nut w/ Star Washer, 10-24

$5.99

$

In Stock, only 1 left!

0

33

Cub Cadet 01009560

Control Rod, 3/8 x 17.312

$

$

Not available

34

Cub Cadet 02000069

Screw, Shoulder Control Rod

$

$

Not available

35

Cub Cadet 02002931

Lapbar Control Assembly, LH

Variations

Cub Cadet 02002931-0637

LAPBAR CONTROL ASM - POWDER BLACK (0637)

$129.99

$

Usually ships in 3-6 days

0

$120.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 01004265

Bearing

$20.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 02002542

Brake/Control Rod

$9.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 02002543

Lapbar Control Arm

$

$

Not available

38

Cub Cadet 02004044-0637

Lapbar Pivot Bracket

$32.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 02002555

Lapbar Control Shaft Assembly

$

$

Not available

40

Cub Cadet 02004382

Lapbar/Brake Control Mounting Bracket

$

$

Not available

41

Cub Cadet 02002932

Lapbar Control Assembly, RH

Variations

Cub Cadet 02002932-0637

LAPBAR CONTROL ASM - POWDER BLACK (0637)

$151.99

$

Usually ships in 3-6 days

0

$151.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 01004265

Bearing

$20.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 02004049

Lapbar Assembly includes:

$57.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 02002662

Grip, 1.0
(Superseded to 720-04188)

$25.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 02003419

Bushing, .310 x .172 x .688 x .06

$4.49

$

In Stock, only 4 left!

0

44

Cub Cadet 02003653

Cylinder Return to Neutral

$119.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 02003664

Spacer, .405 ID x 1.0 OD x .72

$

$

Not available

46

Cub Cadet 02003883-0637

Side Panel, Control, Left

$

$

Not available

47

Cub Cadet 02003884-0637

Side Panel, Control, Right

$

$

Not available

48

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

49

Cub Cadet 02003644

Spacer, .251 ID x .38 OD x 1.13 LG

$6.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 712-04063

Nut, Lock, HexFlange, 5/16-18

$3.99

$

In Stock, Qty 20+

0
