M48-KW (53AB5DBV750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki Seat Assembly Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

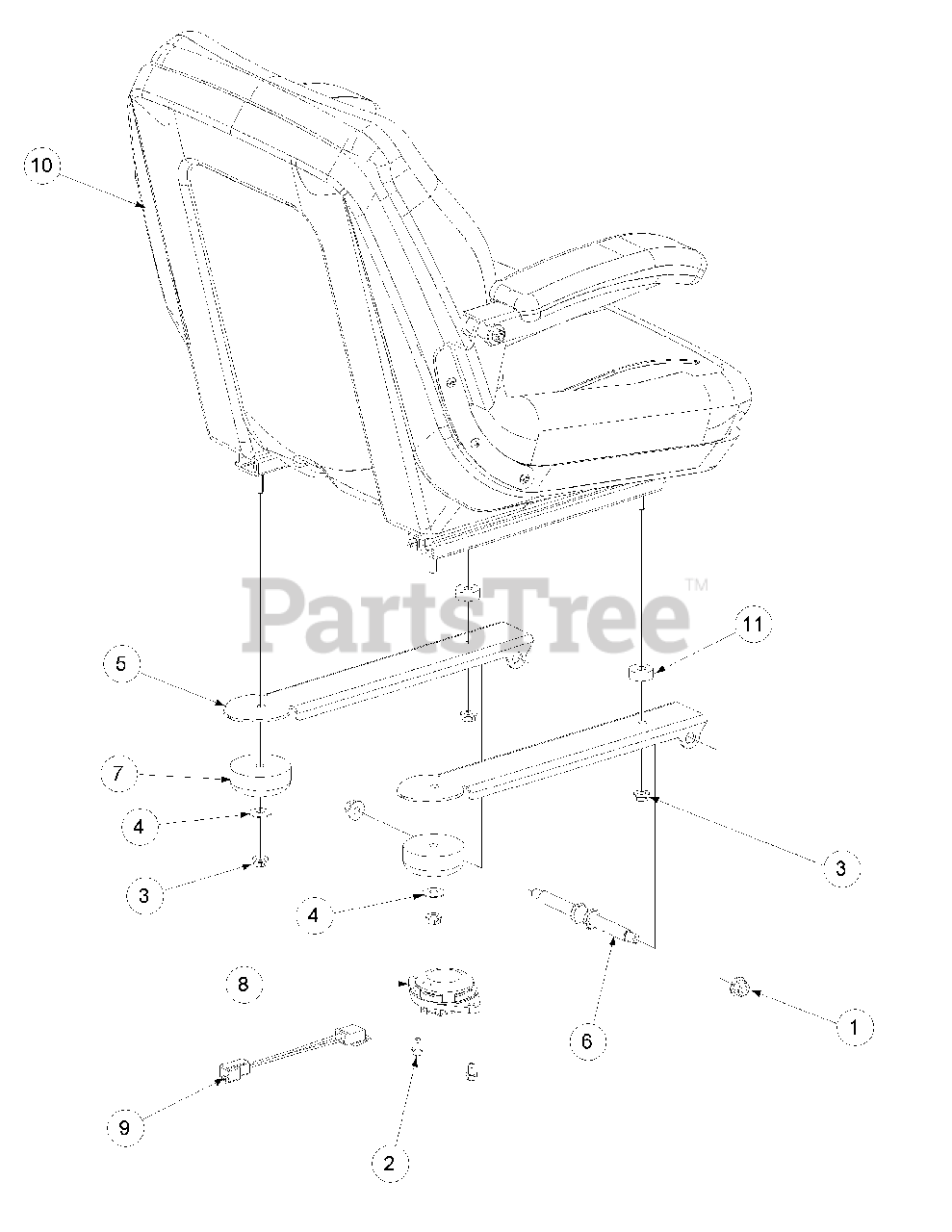

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Screw, TT, 1/4-20, 0.5, Hex Index Washer

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 936-0425

Washer
(Superseded to 736-0425)

$

$

Not available

5

Cub Cadet 01002633-0637

Mounting Bracket, Seat

$48.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 01002634

Shoulder Screw, .50x2.345, 3/8-16

$25.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 14

0

8

Cub Cadet 01003278

Seat Switch, NC

$27.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 01008387

Wiring Adaptor

$

$

Not available

10

Cub Cadet 02001962

Adjustable Seat, Black w/Armrest

$723.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02002255

Armrest Kit

$281.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3256

Screw, Button Head 1/4-20 x .50

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 750-3119

Spacer, 0.406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0
