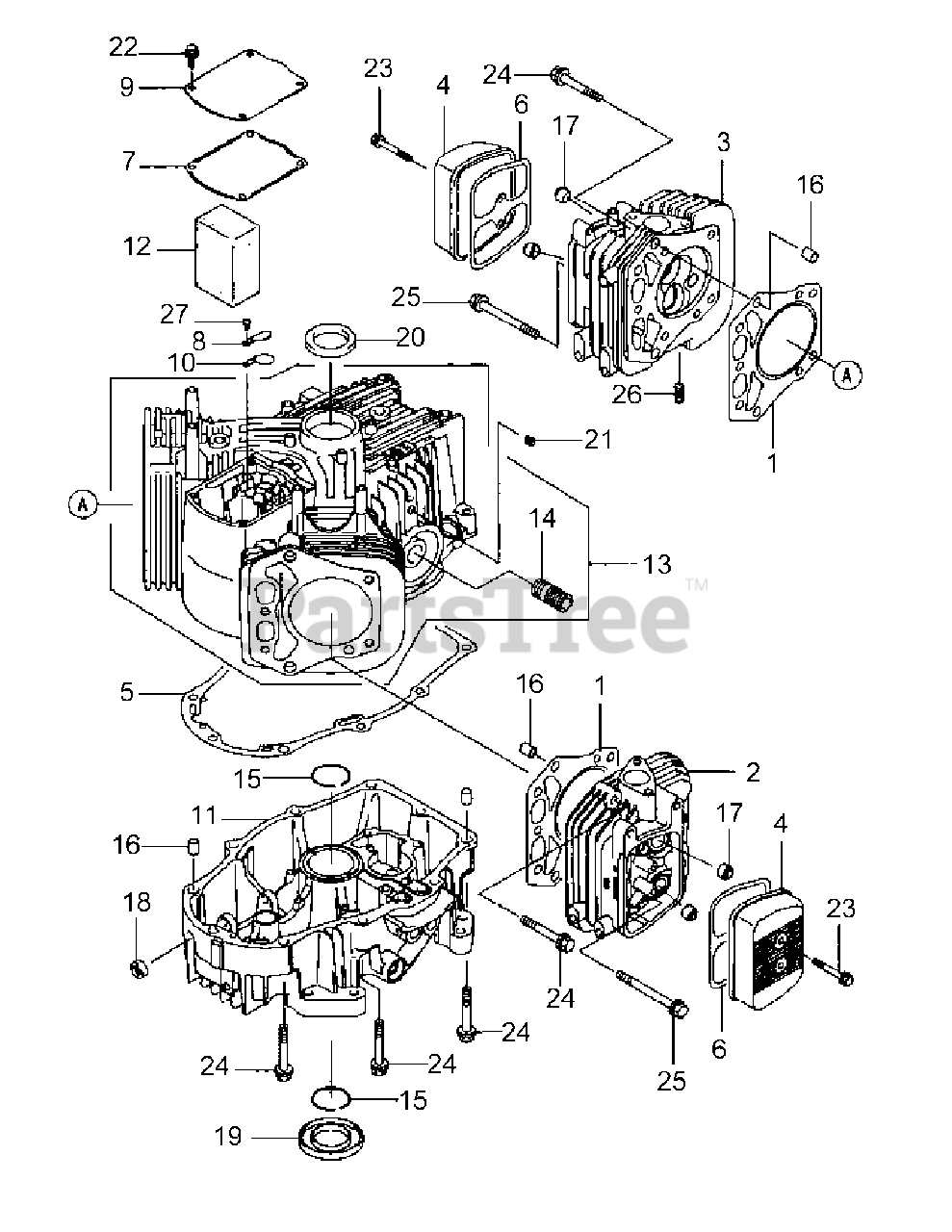

M48-KW (53AB5DBV750) - Cub Cadet 48" Tank Zero-Turn Mower, 23hp Kawasaki FH680V-BS29 Cylinder & Crankcase Parts Diagram

48" Tank Zero-Turn Mower, 23hp Kawasaki

FH680V-BS29 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7006

GASKET-HEAD

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11008-7023

HEAD-COMP-CYLINDER, #2

$278.99

$

In Stock, Qty 11

0

3

Cub Cadet KM-11008-7024

HEAD-COMP-CYLINDER, #1

$277.99

$

In Stock, Qty 7

0

4

Cub Cadet KM-11022-7029

CASE-ROCKER
(Superseded to KM-11022-0728)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11061-7098

GASKET,

$48.99

$

In Stock, Qty 16

0

6

Cub Cadet KM-11060-7013

GASKET, ROCKER CASE

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11060-7014

GASKET, BREATHER

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet KM-13271-7006

PLATE

$1.49

$

In Stock, Qty 20+

0

9

Cub Cadet KM-14091-7004

COVER

$3.99

$

In Stock, Qty 14

0

10

Cub Cadet KM-16126-7001

VALVE

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KM-49015-7064

COVER-CRANKCASE

$199.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-99999-7072

BREATHER ELEMENT

$14.99

$

In Stock, Qty 20+

0

13

Cub Cadet KM-49120-7037

CRANKCASE-COMP
(Superseded to KM-49120-7092)

$459.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-59071-2079

JOINT

$6.49

$

In Stock, Qty 8

0

15

Cub Cadet KM-92033-7004

SNAP RING

$0.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92043-7001

PIN

$0.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7001

SEAL-OIL,RVC2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-92049-7019

SEAL-OIL,SO 8X14X5 HS

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-92049-7011

SEAL-OIL,SD 35X62X8 L HS

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-92049-7014

SEAL-OIL, SD 35X48X8 R HS

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-92066-7002

PLUG

$

$

Not available

22

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

23

Cub Cadet KM-130BA0640

BOLT-FLANGED

$1.49

$

In Stock, only 1 left!

0

24

Cub Cadet KM-130CA0850

BOLT-FLANGED

$1.99

$

In Stock, Qty 16

0

25

Cub Cadet KM-130CA0875

BOLT-FLANGED

$2.49

$

In Stock, Qty 9

0

26

Cub Cadet KM-172BA0818

BOLT-STUD

$1.99

$

In Stock, Qty 20+

0

27

Cub Cadet KM-214AA0408

PAN SCREW

$3.99

$

In Stock, Qty 15

0

Cub Cadet 01008523P

Replacement Engine

Note: (NLA) (not shown)

$

$

Not available
