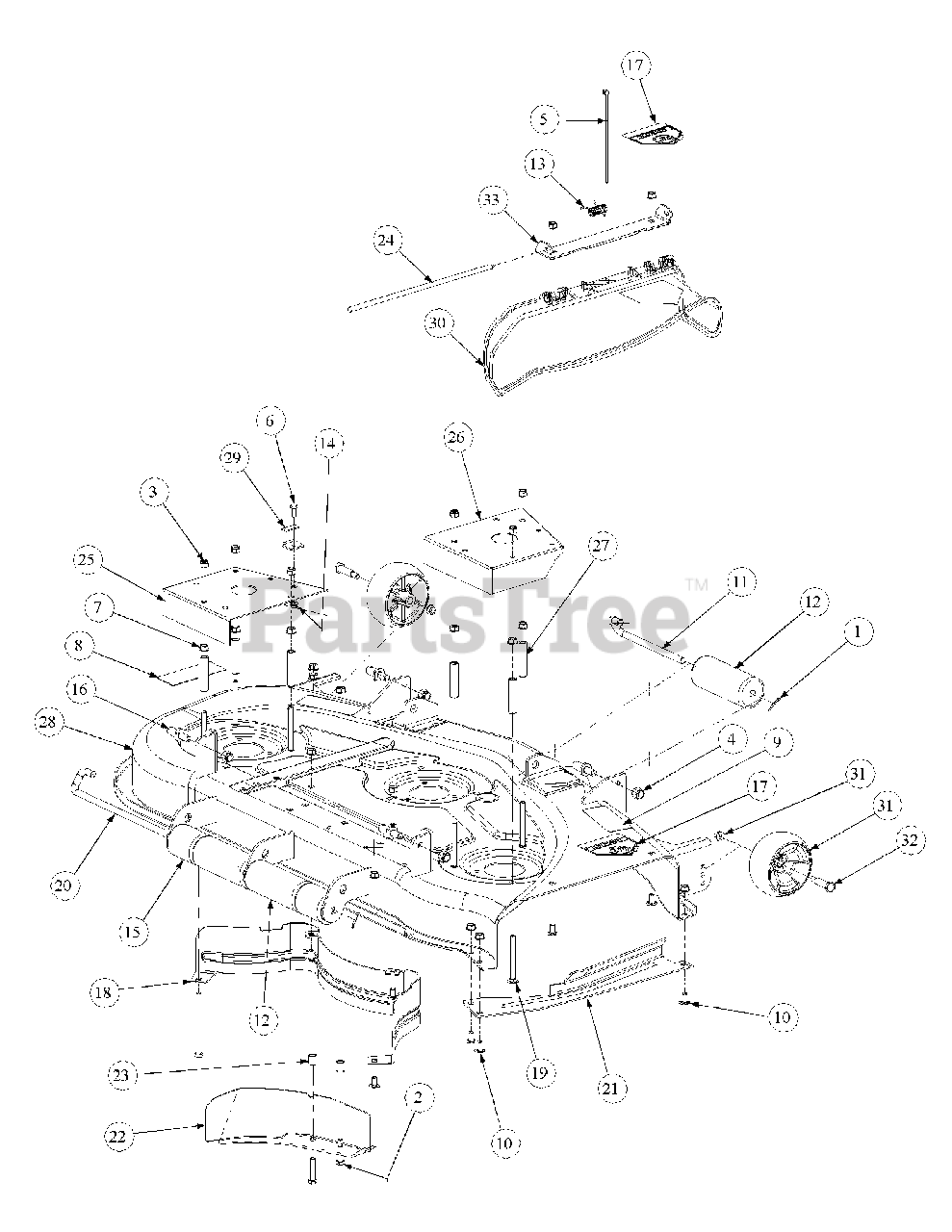

M48-KHS (53AB5B5M750) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler Stamped Deck 48-Inch (May 2004 & After) Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

Stamped Deck 48-Inch (May 2004 & After) Parts Diagram

  • Title

1

Cub Cadet 00003107

Cotter Pin, .125 Dia x 1.0
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 00008495

Capscrew, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 712-04065

Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00012428

Lock Nut, Nylon Insert, 1/2-13

$6.99

$

In Stock, only 2 left!

0

5

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00013406

Hex Cap Screw, 5/16 -18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00022560

Hex Nut Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030633

Decal, Rotating Blade

$

$

Not available

9

Cub Cadet 00030635

Decal, Warning Shield Missing
(Superseded to 777S33782)

$7.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Lg

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 911-3314

Roller Pin, 1/2 Dia x 7.31 Lg
(Superseded to 711-3314A)

$25.99

$

In Stock, Qty 11

0

12

Cub Cadet 731-3005

Front and Rear Roller

$28.99

$

In Stock, Qty 20+

0

13

Cub Cadet 732-3070A

Torsion Spring

$11.99

$

In Stock, only 3 left!

0

14

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01001169

Short Roller

$24.99

$

In Stock, only 3 left!

0

16

Cub Cadet 01001745

Pin, 5/8 Dia x 1.2 Lg
(Superseded to 711-05604)

$11.99

$

In Stock, Qty 14

0

17

Cub Cadet 01002166

Decal, Danger Hands and Feet

$12.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01007397

48" Right Rear Inner Baffle
(Superseded to 703-2161-0637)

$

$

Not available

19

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

20

Cub Cadet 02002798

Roller Pin Rod

$79.99

$

In Stock, only 4 left!

0

21

Cub Cadet 01007398

Finger Guard
(Superseded to 703-3511B-0637)

$69.99

$

In Stock, Qty 20+

0

22

Cub Cadet 01007356

48" Deck Baffle

$

$

Not available

23

Cub Cadet 750-0639

Spacer, .385 ID x .75 OD x .875

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 01009102

Hinge Pin, .375 x 14.06
(Superseded to 711-1762)

$18.99

$

In Stock, only 1 left!

0

25

Cub Cadet 02000029

48" Left Hand Belt Cover

$

$

Not available

26

Cub Cadet 02000049

48" Right Hand Belt Cover

$

$

Not available

27

Cub Cadet 01010171

Spacer, .39 ID x .625 OD x 2.75

$

$

Not available

28

Cub Cadet 02000028

48" Stamped Deck

$

$

Not available

29

Cub Cadet 01004109

Tension Rod Stop Bracket

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 931-3131A

Deflector Chute

$108.99

$

In Stock, only 4 left!

0

31

Cub Cadet 753-04856A

Wheel, 5.0 Dia

$20.99

$

In Stock, Qty 20+

0

32

Cub Cadet 938-0373

Shoulder Screw, .498 x 1.53, 3/8-16

$9.49

$

In Stock, Qty 20+

0

33

Cub Cadet 783-04470

Chute Mounting Bracket

$33.99

$

In Stock, only 1 left!

0
