M48-KHS (53AB5B5M750) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler Optional Foot Pedal Deck Lift Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

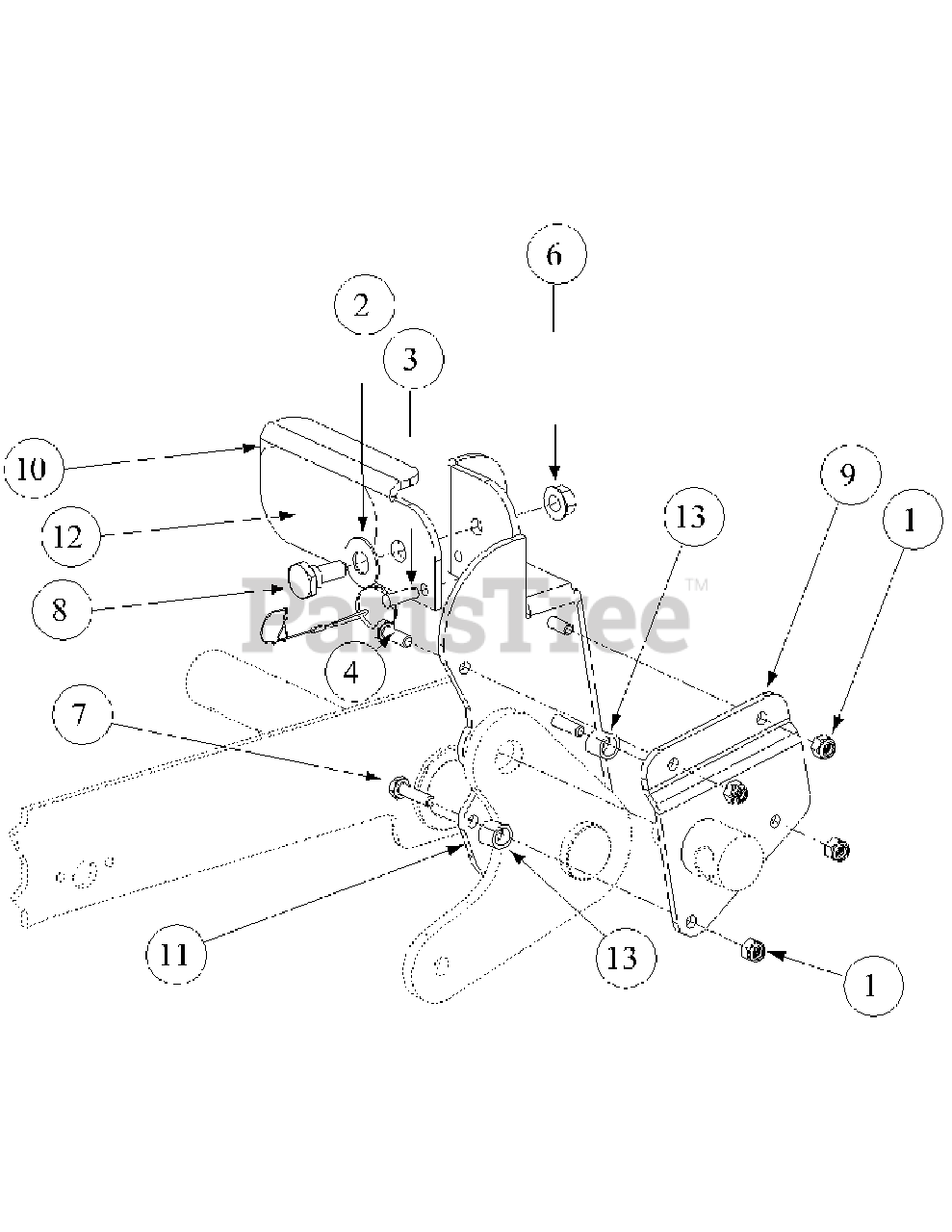

Optional Foot Pedal Deck Lift Parts Diagram

  • Title
1

Cub Cadet 00012152

Lock Nut, Nylon Insert, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00012577

Washer, 1/2 x 1 Shim

$5.49

$

In Stock, Qty 12

0

3

Cub Cadet 01006786

Detent Pin w/Lanyard, 1/4"

$

$

Not available

4

Cub Cadet 00013131

Hex Cap Screw, 1/4-20, .75

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 00022560

Hex Nut, Flange Lock 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000944

Hex Cap Screw, 1/4-20, 1.00

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 01004118

Shoulder Screw, .50x.27 Lg., 3/8-16
(Superseded to 938-0380)

$7.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01006409

Foot Lift Backup Pedal

$25.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01006352

Deck Foot Pedal Lift

$36.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01008359

Deck Foot Pedal Lift Holder

$

$

Not available

12

Cub Cadet 01006418

Deck Foot Lift Pad

$

$

Not available

13

Cub Cadet 00062715

Turnbuckle Sleeve

$18.99

$

In Stock, only 1 left!

0
