M48-KHS (53AB5B5M750) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler Drive Assembly Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

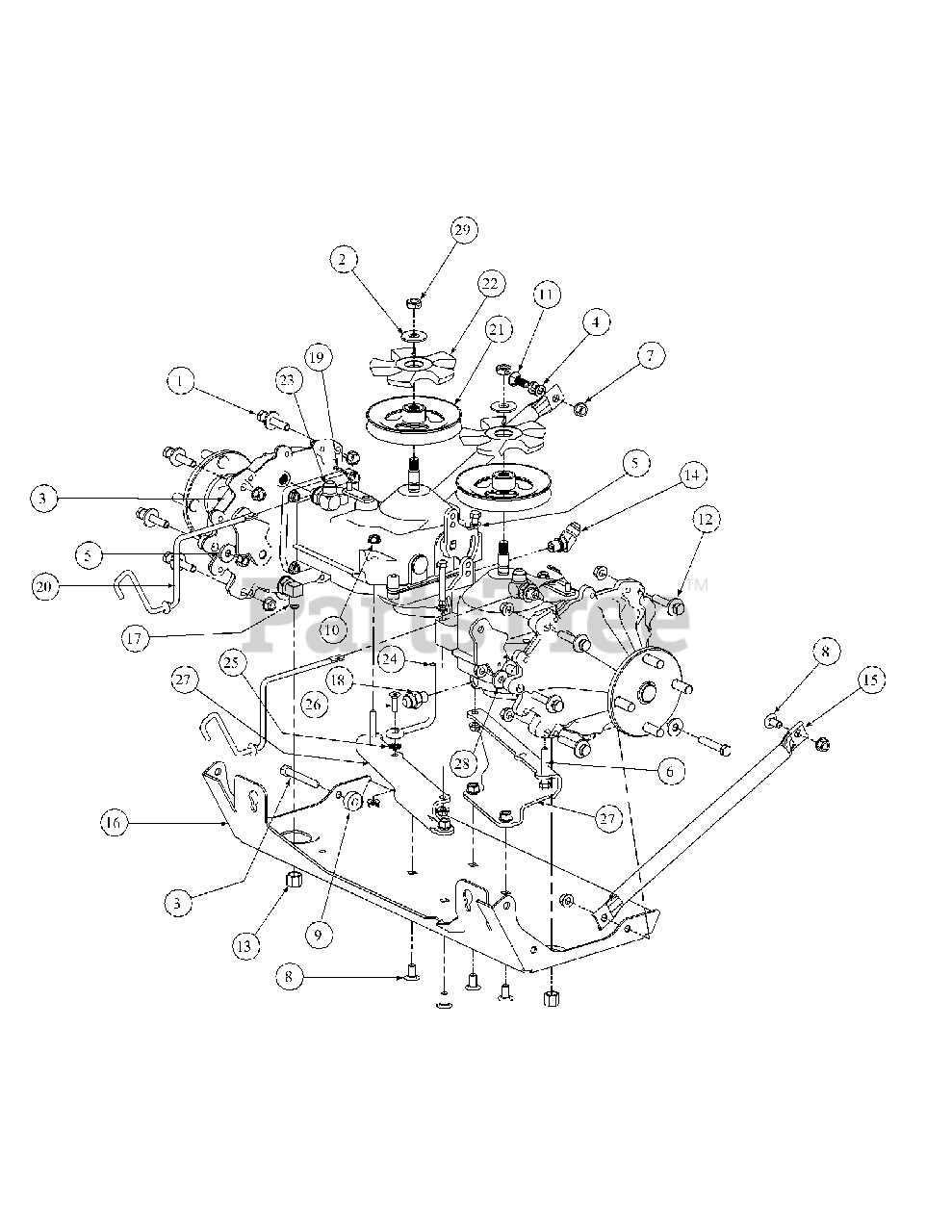

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00011459

Flat Washer, 1/2

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00011861

Hex Cap Screw, 3/8-16 x 2.5
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

4

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 00013198

Hex Cap Screw, 5/16-18 x 2
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 750-3119

Spacer, .406 ID x 1.00 OD x .38

$11.99

$

In Stock, only 4 left!

0

10

Cub Cadet 712-3004A

Hex Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01000643

Carriage Bolt, 3/8-16 x 1

$5.49

$

In Stock, Qty 7

0

12

Cub Cadet 736-3052

Washer, .406 ID x 1.0 OD x .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01001623

Nut Cap, 3/8

$

$

Not available

14

Cub Cadet 01001975

Elbow Fitting, 3/8 - 1/2 x 45°.

$

$

Not available

15

Cub Cadet 01002593-0637

Frame Strut

$

$

Not available

16

Cub Cadet 01001620

Skid Plate

$

$

Not available

17

Cub Cadet 01002602

Elbow Fitting, 3/8 x 3/8

$

$

Not available

18

Cub Cadet 01002606

Fitting, 1/2 x 3x8

$

$

Not available

19

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01003268

Pump Release Rod

$

$

Not available

21

Cub Cadet 01003732

Slotted Hydro Pulley

$

$

Not available

22

Cub Cadet 01005339

Pulley Hydro Fan
(Superseded to 17199-0637)

$90.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01004542

Elbow Fitting, O-Ring 3/8, 1/2 Flare

$36.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01005114

Belt Guide

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01005851

Washer
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

26

Cub Cadet 01005852

Screw, 5/16-18 x 1.00

Note: NLA

$

$

Not available

27

Cub Cadet 01006165

Support Mount Bracket

$

$

Not available

28

Cub Cadet 01007238

Flat Washer, .385 x 1.0 OD x .13

$

$

Not available

29

Cub Cadet 01008229P

Nut, 1/2-20, Center Lock

$

$

Not available
