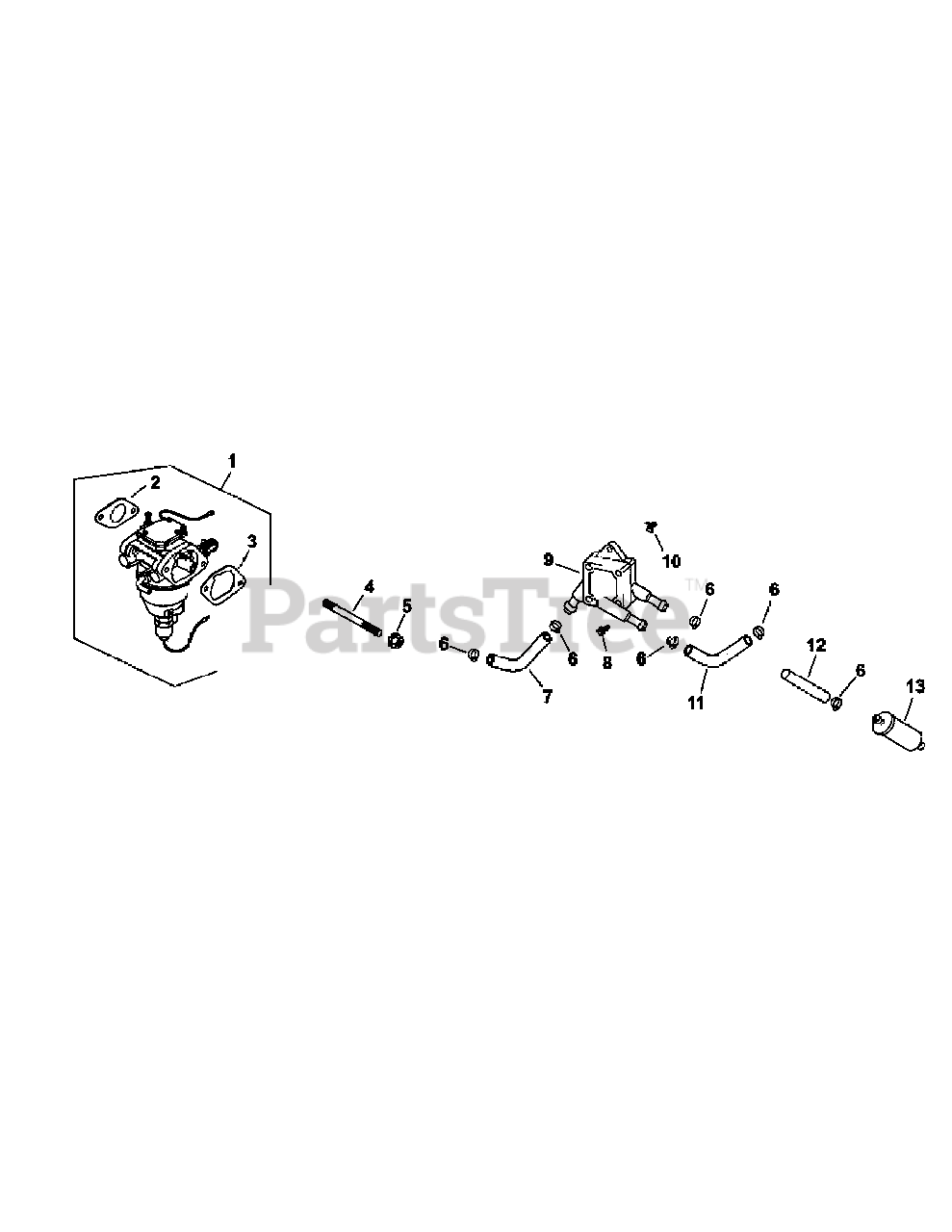

M48-KHS (53AB5B5M750) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler CV18S-61573 Fuel System Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

CV18S-61573 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-41-S

Carburetor w/Gaskets

$411.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-15

Carburetor Gasket

$

$

Not available

3

Cub Cadet KH-24-041-14

Air Cleaner Base Gasket

$

$

Not available

4

Cub Cadet KH-M-629095-S

Intake Manifold Stud

$3.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-M-641060-S

Hex Flange Nut (M6 x 1.0)

$4.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-25-237-31-S

Hose Clamp

$4.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-25-353-15

Fuel Line (3-1/2")
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

8

Cub Cadet KH-24-086-12

Hex Cap Screw (M6 x 1.7 x 18)

$

$

Not available

9

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

10

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, Qty 7

0

11

Cub Cadet KH-24-353-03

Fuel Line (10-1/2")
(Superseded to KH-24-353-12)

$

$

Not available

12

Cub Cadet KH-25-353-15

Fuel Line (3-1/2")
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

13

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

Cub Cadet KH-24-126-29

Throttle Stop Bracket

Note: (NLA) (not shown)

$

$

Not available

Cub Cadet KH-M-259005-S

Thread Forming Screw

Note: (not shown)

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-18-S

Overhaul Kit w/Gaskets

Note: (not shown)

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Choke Repair Kit w/Gaskets

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-757-20

Gasket

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-757-22

Solenoid Replacement Kit

Note: (not shown)

$

$

Not available
