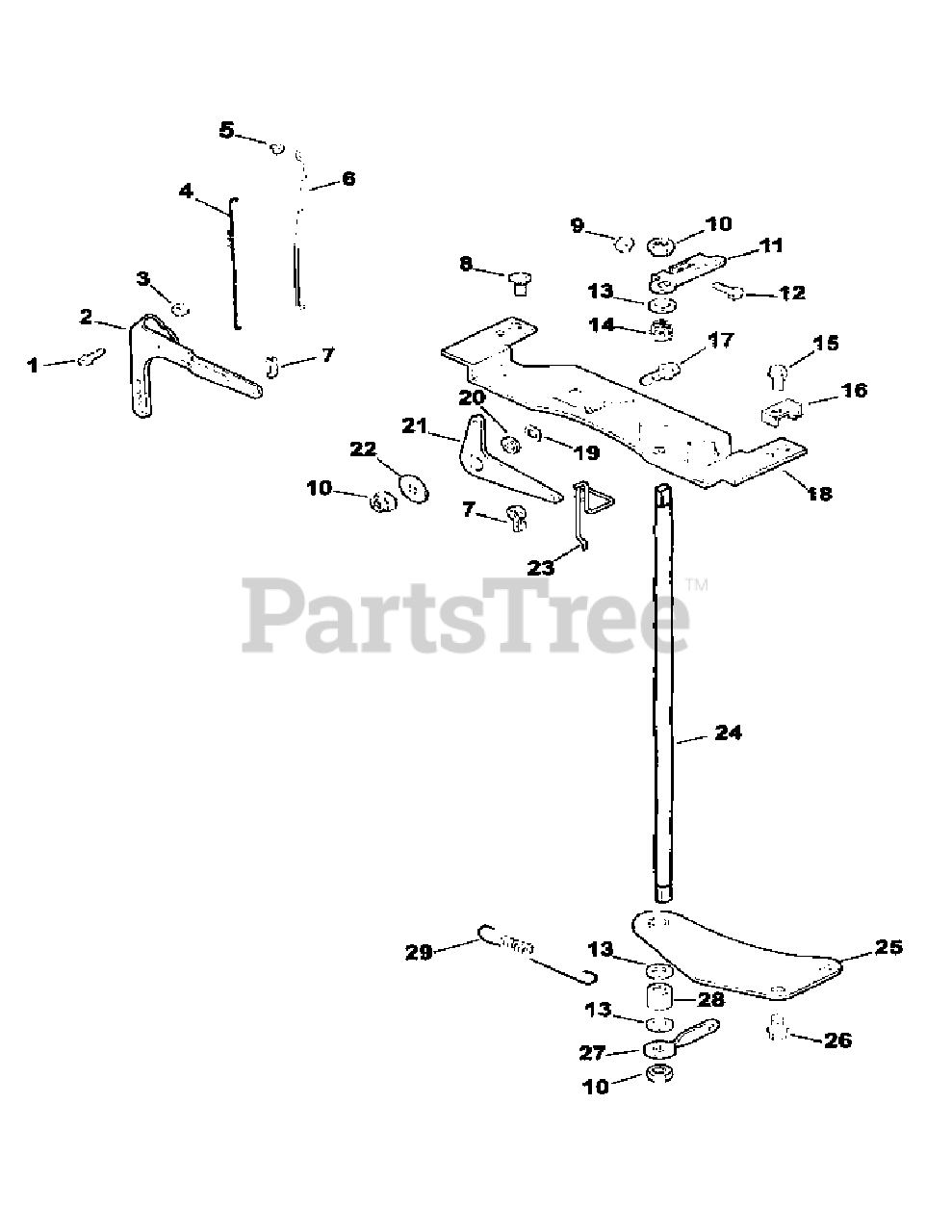

M48-KHS (53AB5B5M750) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler CV18S-61573 Engine Controls Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

CV18S-61573 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-24-211-03-S

Carriage Bolt (M6 x 1.0 x 25)

$2.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-090-51-S

Governor Lever
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Hex Flange Nut (M6 x 1.0)

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-24-089-01

Linkage Spring

$

$

Not available

5

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Throttle Linkage

$

$

Not available

7

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

8

Cub Cadet KH-24-086-06

Phillips Head Screw (11-16 x 3/4")

$

$

Not available

9

Cub Cadet KH-M-446030-S

Hex Nut (M4 x .7)

$2.49

$

In Stock, only 4 left!

0

10

Cub Cadet KH-M-647060

Hex Lock Nut (M6 x 1.0)

Note: NLA

$

$

Not available

11

Cub Cadet KH-24-090-09

Throttle Control Lever

$

$

Not available

12

Cub Cadet KH-M-401030

Hex Cap Screw (M4 x .7 x 25)

$

$

Not available

13

Cub Cadet KH-X-25-72

Plain Washer (1/4")

$

$

Not available

14

Cub Cadet KH-24-089-20

Throttle Shaft Spring

$

$

Not available

15

Cub Cadet KH-M-545016-S

Hex Flange Screw (M5 x .8 x 16)
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-M-639016-S

Hex Flange Screw (M6 x 1.0 x 16)

$2.49

$

In Stock, Qty 6

0

18

Cub Cadet KH-24-126-111-S

Control Bracket
(Superseded to KH-24-126-219-S)

$37.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-277341

Spring Washer (3/8")

$

$

Not available

20

Cub Cadet KH-25-431-01-S

Spacer

$7.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-24-090-20

Choke Lever

Note: NLA

$

$

Not available

22

Cub Cadet 736-0173

Plain Washer (1/4")

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet KH-24-079-10

Choke Linkage

$

$

Not available

24

Cub Cadet KH-24-144-11

Throttle Shaft

Note: NLA

$

$

Not available

25

Cub Cadet KH-24-126-162-S

Throttle Shaft Bracket

$8.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-M-645016-S

Hex Flange Screw (M6 x 1.0 x 40)

$3.99

$

In Stock, Qty 15

0

27

Cub Cadet KH-24-090-12

Throttle Control Lever

$

$

Not available

28

Cub Cadet KH-24-112-10

Spacer

$

$

Not available

29

Cub Cadet KH-24-089-45-S

Governor Spring

$8.99

$

In Stock, Qty 10

0
