M48-KHS (53AB5B5M150) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler Front Caster Assembly Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

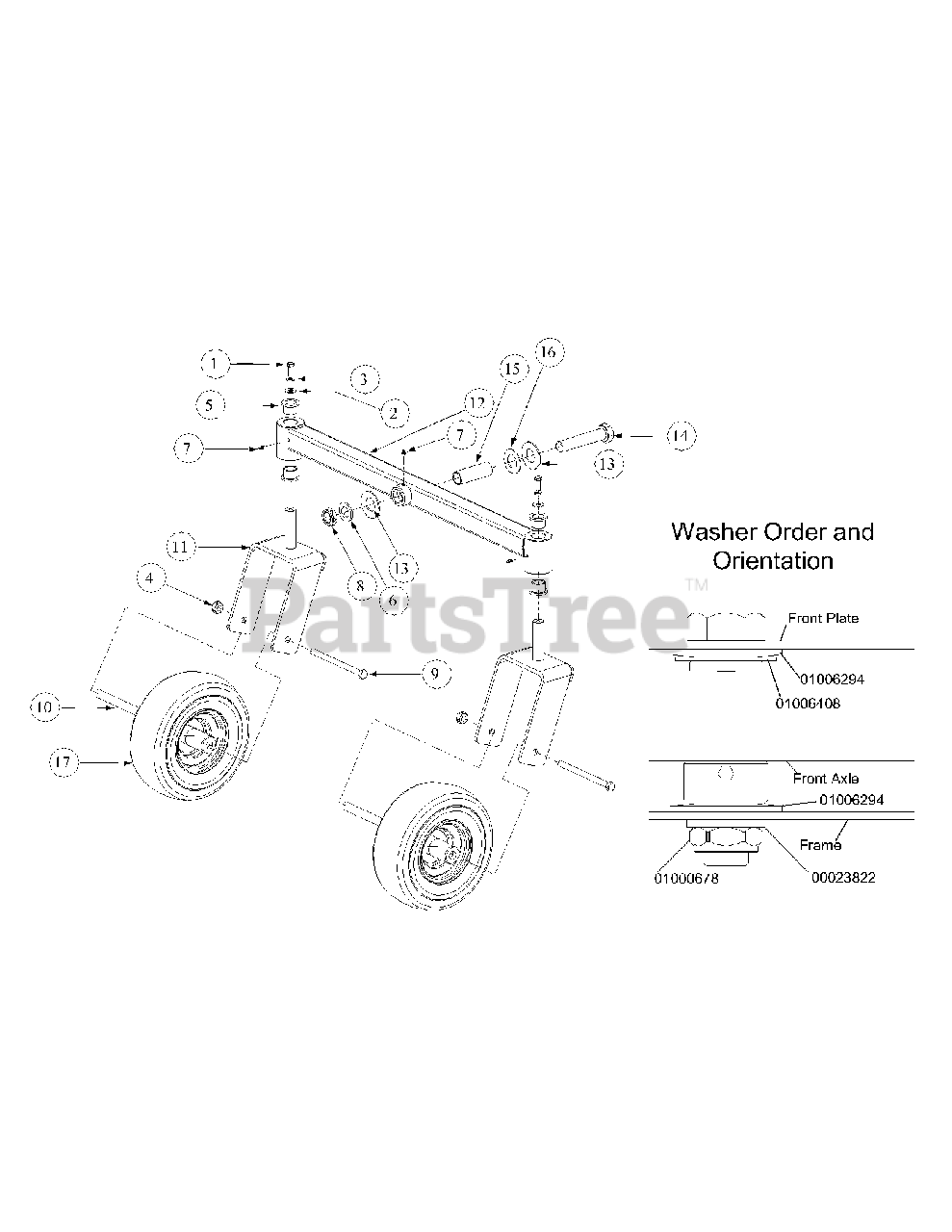

Front Caster Assembly Parts Diagram

  • Title

1

Cub Cadet 00006144

Hex Cap Screw, 3/8-16, x 1

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 936-0133

Flat Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

3

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00023287

Center Lock Nut, 1/2-20
(Superseded to 712-0239)

$

$

Not available

5

Cub Cadet 00023793

Flange Bearing, 1.013

$15.99

$

In Stock, only 3 left!

0

6

Cub Cadet 00023822

Special Washer
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

7

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 01000678

Jam Lock Nut, 1.0-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01002611

Hex Cap Screw, 1/2-20 x 7.00

$

$

Not available

10

Cub Cadet 02002153

Spacer, .51 ID x .75 OD x 5.83 Lg

$14.99

$

In Stock, only 4 left!

0

11

Cub Cadet 01006207-0637

Caster Wheel Bracket Assembly

$138.99

$

In Stock, only 1 left!

0

12

Cub Cadet 01007367

Narrow Front Axle Assembly

$

$

Not available

13

Cub Cadet 01006294

Belle Washer, 1.25 ID x 2.500 OD x .1
(Superseded to 736-04604)

$8.49

$

In Stock, only 3 left!

0

14

Cub Cadet 01006309

Hex Cap Screw, 1-14 x 5.0

$30.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01006310

Spacer, 1.005 ID x 1.25 OD x 3.6

$83.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01006408

Flat Washer, 1.25 ID x 2.25 OD x .075

$12.99

$

In Stock, only 1 left!

0

17

Cub Cadet 02001562

Wheel Assembly, 11 x 4-5.00

$188.99

$

Usually ships in 3-6 days

0
