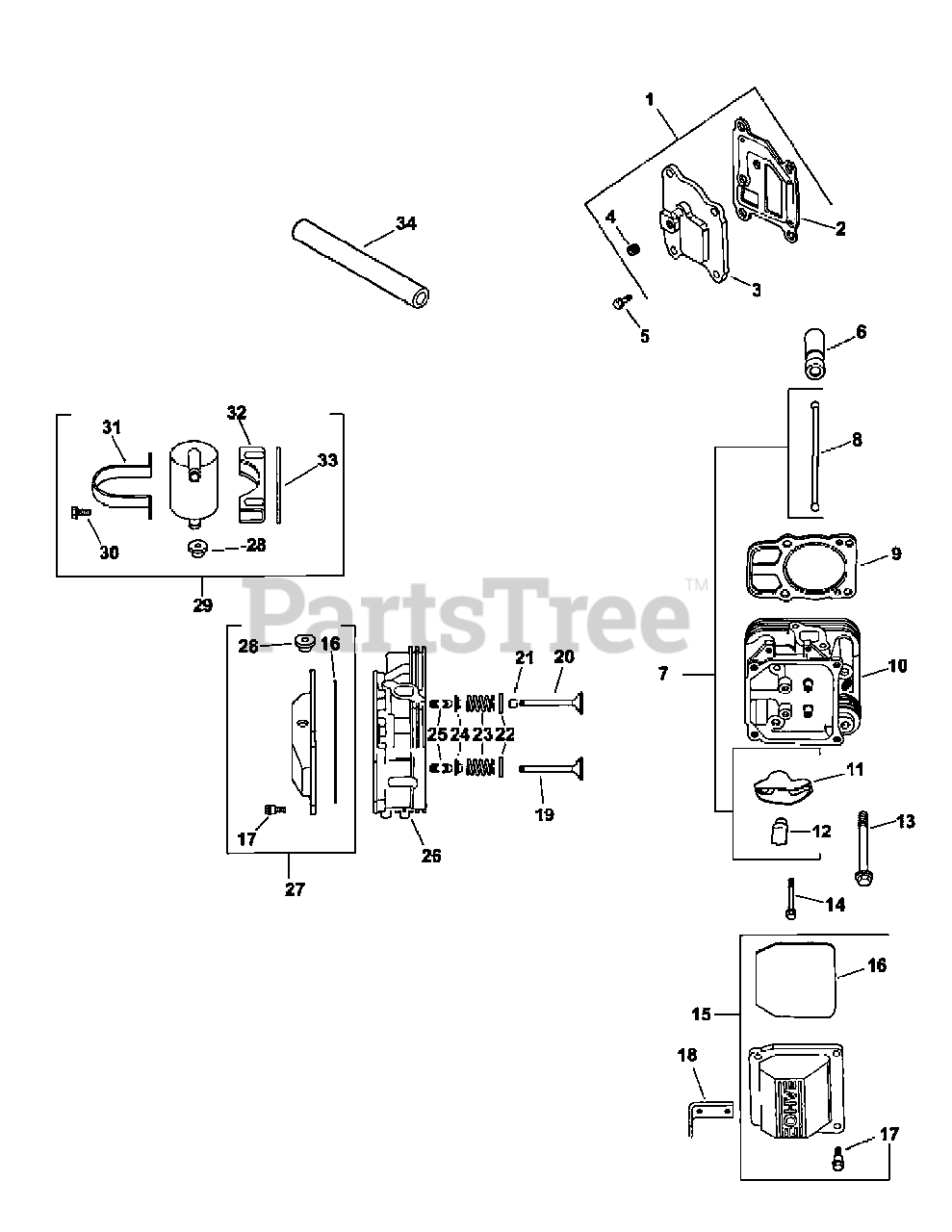

M48-KHS (53AB5B5M150) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler CV18S-61573 Head, Valve & Breather Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

CV18S-61573 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Breather Cover w/Gasket Kit

$

$

Not available

2

Cub Cadet KH-24-041-67-S

Breather Gasket

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-87-S

Breather Cover
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-25-139-60-S

Plug, Pipe 1/8"

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-25-086-396-S

Hex Flange Screw (M6 x 1.0 x 20)

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-351-10-S

Valve Lifter
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-24-755-66

Valve Train Kit

$

$

Not available

8

Cub Cadet KH-24-411-05

Push Rod

$

$

Not available

9

Cub Cadet KH-24-841-02-S

Cylinder Head Gasket

$45.99

$

In Stock, only 2 left!

0

10

Cub Cadet KH-24-318-113-S

Head Assembly # 2 Cylinder
(Superseded to KH-24-318-195-S)

$

$

Not available

11

Cub Cadet KH-25-186-01

Rocker Arm

$

$

Not available

12

Cub Cadet KH-24-599-02-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 8

0

13

Cub Cadet KH-62-086-08-S

Screw, Hex Flange

$5.99

$

In Stock, Qty 5

0

14

Cub Cadet KH-M-0640034

Hex Flange Screw (M6 x 1.0 x 34)

$

$

Not available

15

Cub Cadet KH-24-755-141-S

Valve Cover Kit

$35.99

$

In Stock, only 2 left!

0

16

Cub Cadet KH-24-153-23-S

O-Ring

$18.99

$

In Stock, only 2 left!

0

17

Cub Cadet KH-24-086-32

Screw, Shoulder (M6 x 1.0 x 30)

$

$

Not available

18

Cub Cadet KH-25-445-01-S

Lifting Strap
(Superseded to KH-25-445-03-S)

$

$

Not available

19

Cub Cadet KH-24-016-01

Exhaust Valve (Std.)
(Superseded to KH-32-016-01-S)

$15.99

$

In Stock, only 4 left!

0

19

Cub Cadet KH-24-016-02

Exhaust Valve (.025)

$

$

Not available

20

Cub Cadet KH-24-017-01

Intake Valve (Std.)

$

$

Not available

20

Cub Cadet KH-24-017-02

Intake Valve (.025)

$

$

Not available

21

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, only 2 left!

0

22

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 2 left!

0

23

Cub Cadet KH-24-089-02

Valve Spring

$

$

Not available

24

Cub Cadet KH-25-173-28-S

Valve Spring Cap

$8.49

$

In Stock, Qty 5

0

25

Cub Cadet KH-12-755-03

Retainer Kit

$5.99

$

In Stock, only 2 left!

0

26

Cub Cadet KH-24-318-105-S

Head Assembly # 1 Cylinder
(Superseded to KH-24-318-194-S)

$246.99

$

Usually ships in 3-6 days

0

27

Cub Cadet KH-24-755-142-S

Breather Valve Cover Kit

$38.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-25-313-03-S

Rubber Grommet

$11.99

$

In Stock, only 3 left!

0

29

Cub Cadet KH-24-755-57-S

Breather Seperator Kit
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

30

Cub Cadet KH-M-545016-S

Hex Flange Screw (M5 x .8 x 16)
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-445-02

Breather Strap
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-24-126-44

Breather Seperator Bracket

$

$

Not available

33

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

34

Cub Cadet KH-24-326-93-S

Breather Hose

$13.99

$

In Stock, only 1 left!

0
