M48-KHS (53AB5B5M150) - Cub Cadet 48" Tank Zero-Turn Mower, 18hp Kohler CV18S-61573 Blower Housing & Baffles Parts Diagram

48" Tank Zero-Turn Mower, 18hp Kohler

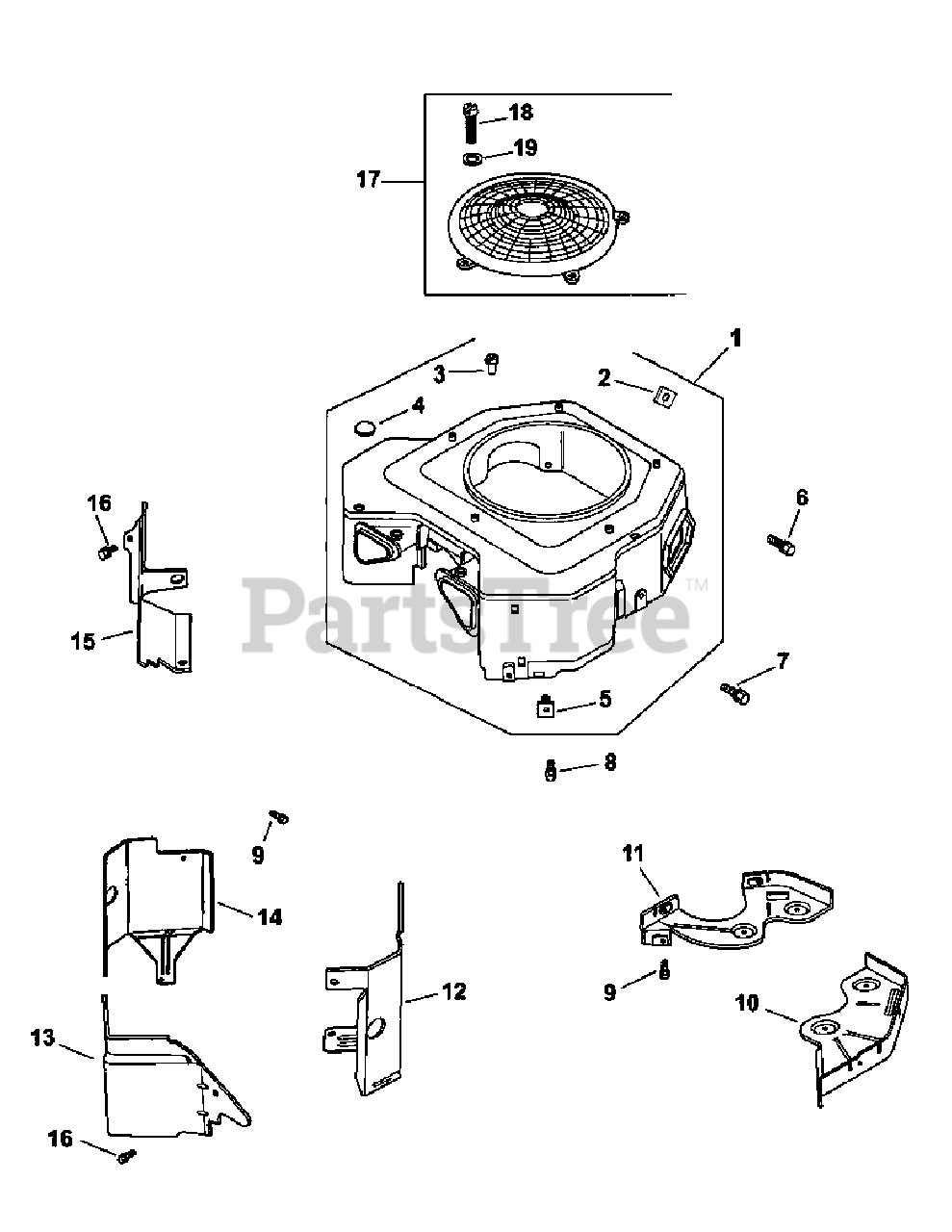

CV18S-61573 Blower Housing & Baffles Parts Diagram

  • Title

1

Cub Cadet KH-24-027-196-S

Blower Housing
(Superseded to KH-24-027-492-S)

$136.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-25-100-37-S

Plastic Nut

$2.49

$

In Stock, Qty 13

0

3

Cub Cadet KH-25-086-91-S

Screw

$3.49

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-139-16

Button Plug (9/16")

$

$

Not available

5

Cub Cadet KH-24-100-02

Plastic Nut

$

$

Not available

6

Cub Cadet KH-M-545016-S

Hex Flange Screw (M5 x .8 x 16)
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-M-551016-S

Hex Flange Screw (M5 x .8 x 16)

$2.49

$

In Stock, only 2 left!

0

8

Cub Cadet KH-M-545020-S

Hex Flange Screw (M5 x .8 x 20)
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 6

0

9

Cub Cadet KH-M-645016-S

Hex Flange Screw (M6 x 1.0 x 16)

$3.99

$

In Stock, Qty 15

0

10

Cub Cadet KH-24-146-16-S

Backing Plate #2 Side

$

$

Not available

11

Cub Cadet KH-24-146-20-S

Backing Plate #1 Side

$

$

Not available

12

Cub Cadet KH-24-063-88-S

Cylinder Barrel Baffle # 2 Side

$28.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-24-063-69-S

Valley Baffle # 2 Side
(Superseded to KH-24-063-94-S)

$9.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-24-063-85-S

Cylinder Barrel Baffle # 1 Side

$17.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-24-063-60-S

Valley Baffle # 1 Side

$

$

Not available

16

Cub Cadet KH-M-0545010

Hex Flange Screw (M5 x .8 x 10)

$

$

Not available

17

Cub Cadet KH-24-755-81-S

Fixed Guard Kit

$52.99

$

In Stock, only 2 left!

0

18

Cub Cadet KH-24-468-10

Washer

$

$

Not available

19

Cub Cadet KH-24-086-35-S

Pan Head Screw

Note: NLA

$2.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-332-01-S

Threaded Insert

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-113-11

18 HP Decal

Note: (not shown) NLA

$

$

Not available

Cub Cadet KH-24-113-18-S

Grass Screen Decal

Note: (not shown)

$

$

Not available
