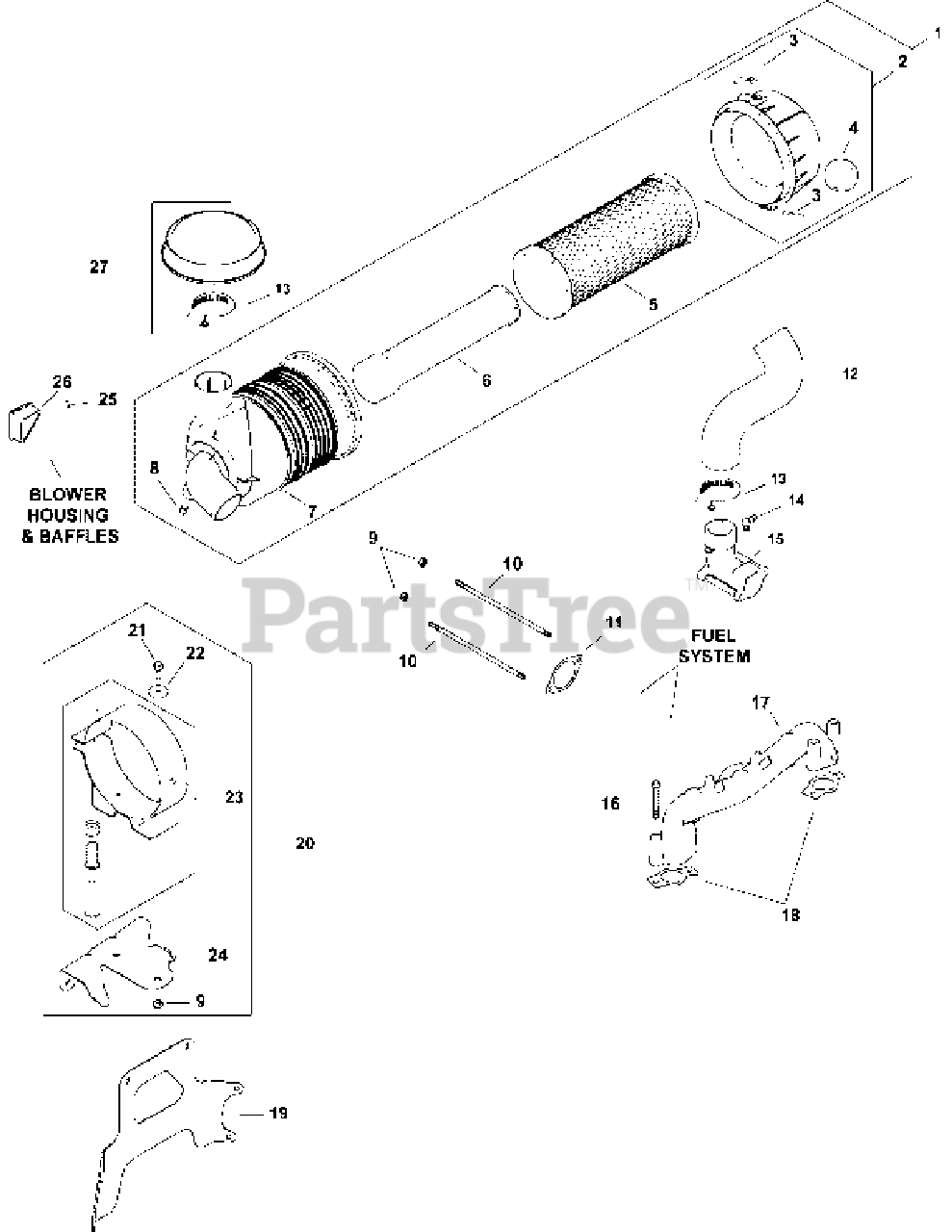

M48-KH (53AH8CT2050) - Cub Cadet 48" Tank Zero-Turn Mower, 25hp Kohler Kohler CV730-0055 Air Intake & Filtration Parts Diagram

48" Tank Zero-Turn Mower, 25hp Kohler

Kohler CV730-0055 Air Intake & Filtration Parts Diagram

  • Title

1

Cub Cadet KH-25-048-11-S

CLEANER, AIR-CANISTER
(Superseded to KH-25-048-17-S)

Note: (includes 2-8)

$142.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-096-06-S

COVER ASSEMBLY, AIR CLEANER

Note: (includes 3,4)

$83.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-25-154-05-S

CLIP
(Superseded to KH-62-154-07-S)

$12.99

$

In Stock, Qty 12

0

4

Cub Cadet KH-24-462-07-S

VALVE, DUST EJECTOR

$21.99

$

In Stock, only 2 left!

0

5

Cub Cadet KH-25-083-01-S

ELEMENT, AIR FILTER - PRIMARY

$31.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-25-083-04-S

ELEMENT, AIR FILTER - SAFETY

$31.99

$

In Stock, Qty 20+

0

7

Cub Cadet KH-25-081-01-S

HOUSING, HD AIR CLEANER

$140.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-25-139-20-S

PLUG, PIPE

$8.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-M-647060

NUT, LOCK M6X1.0

$

$

Not available

10

Cub Cadet KH-24-072-10-S

STUD, M6X1.0X180

$16.99

$

In Stock, Qty 14

0

11

Cub Cadet KH-24-041-14

GASKET, AIR CLEANER BASE

$

$

Not available

12

Cub Cadet KH-24-326-72

HOSE, AIR CLEANER

$

$

Currently unavailable

13

Cub Cadet KH-25-237-21-S

CLAMP, HOSE

$7.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-25-155-38-S

CONNECTOR, HOSE

$16.99

$

In Stock, only 3 left!

0

15

Cub Cadet KH-24-054-16-S

ELBOW, AIR CLEANER

$140.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-25-086-84-S

SCREW, FLG M6X1.0X55
(Superseded to KH-25-086-766-S)

$2.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-24-164-06

MANIFOLD, INTAKE

$

$

Not available

18

Cub Cadet KH-24-041-01

GASKET, INTAKE MANIFOLD
(Superseded to KH-24-041-79-S)

$2.99

$

In Stock, Qty 9

0

19

Cub Cadet KH-24-126-105-S

BRACKET, MAIN SUPPORT
(Superseded to KH-24-126-171-S)

$63.99

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-126-166-S

BRACKET, AIR CLEANER SUB ASSY

Note: (includes 9,21-24)

$

$

Not available

21

Cub Cadet KH-M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

Usually ships in 2-5 days

0

22

Cub Cadet KH-X-25-73-S

WASHER, FLAT 1/4"

$3.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-25-126-02-S

BRACKET ASSY, AIR CLEANER
(Superseded to KH-24-126-191-S)

$60.99

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-24-126-165-S

BRACKET, AIR CLEANER MOUNTING
(Superseded to KH-24-126-184-S)

$92.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-25-086-91-S

SCREW, WSH HD TAP #8-18X1/2"

$3.49

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-096-17-S

COVER, BLOWER HOUSING
(Superseded to KH-24-096-160-S)

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-25-324-02-S

HOOD, AIR CLEANER
(Superseded to KH-25-324-04-S)

Note: (includes 13)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet KH-25-454-04-S

TIE

Note: (NOT ILLUSTRATED)

$3.49

$

Usually ships in 2-5 days

0
