M48-HN (53BB5E6V750) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda Frame Assembly Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

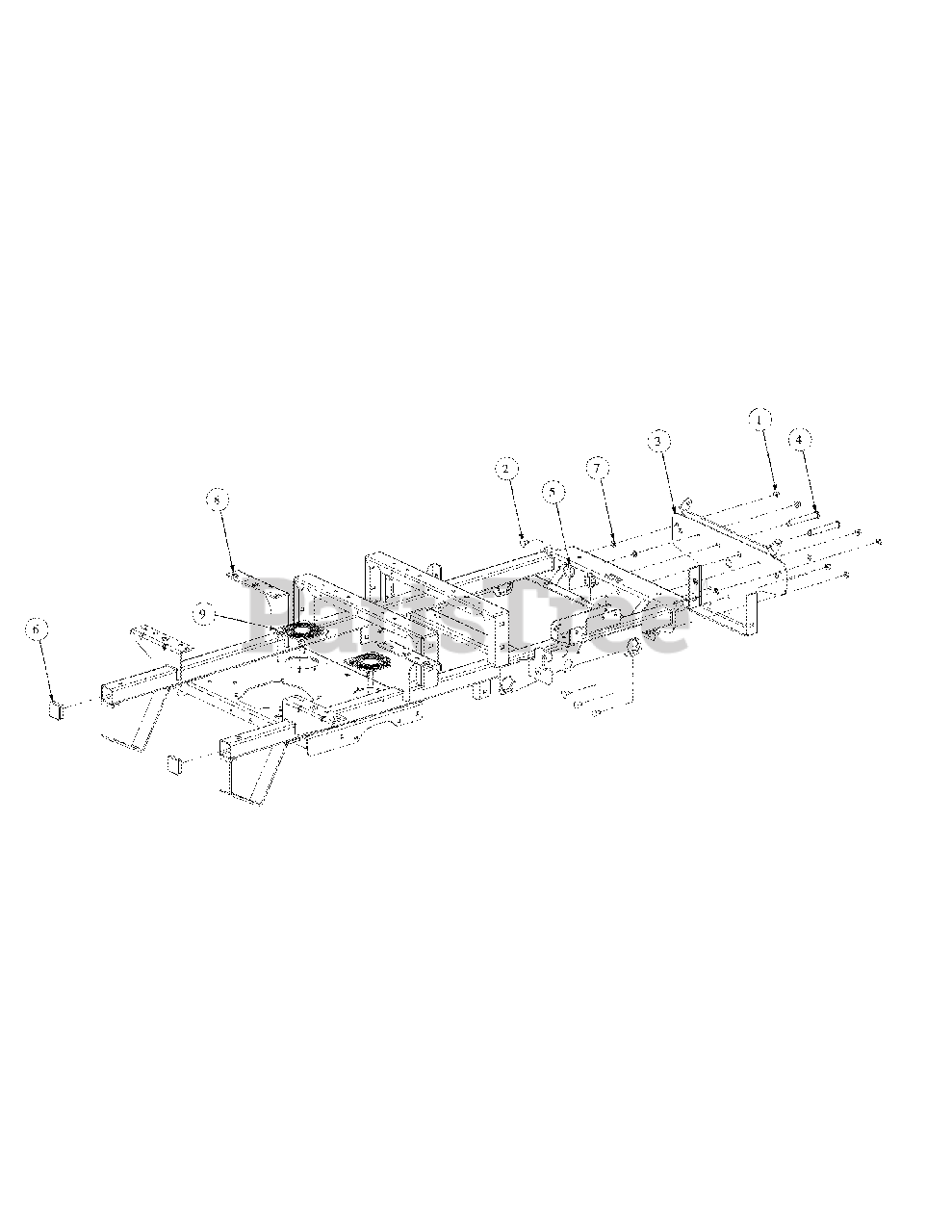

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75 Long

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01001713

Bracket Assembly, Frame, Front

$198.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 01003282

Clevis Pin, .625 Dia x 4.375 Long

$12.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01003993

Linch Pin, 3/16 Dia.
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

6

Cub Cadet 01005160

Plug, Square Tube

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01008225

Push Retainer, 3/8
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 02000019

Frame Assembly

$

$

Not available

9

Cub Cadet 02000129

Cover, Hydro Fan

$25.99

$

Usually ships in 3-6 days

0
