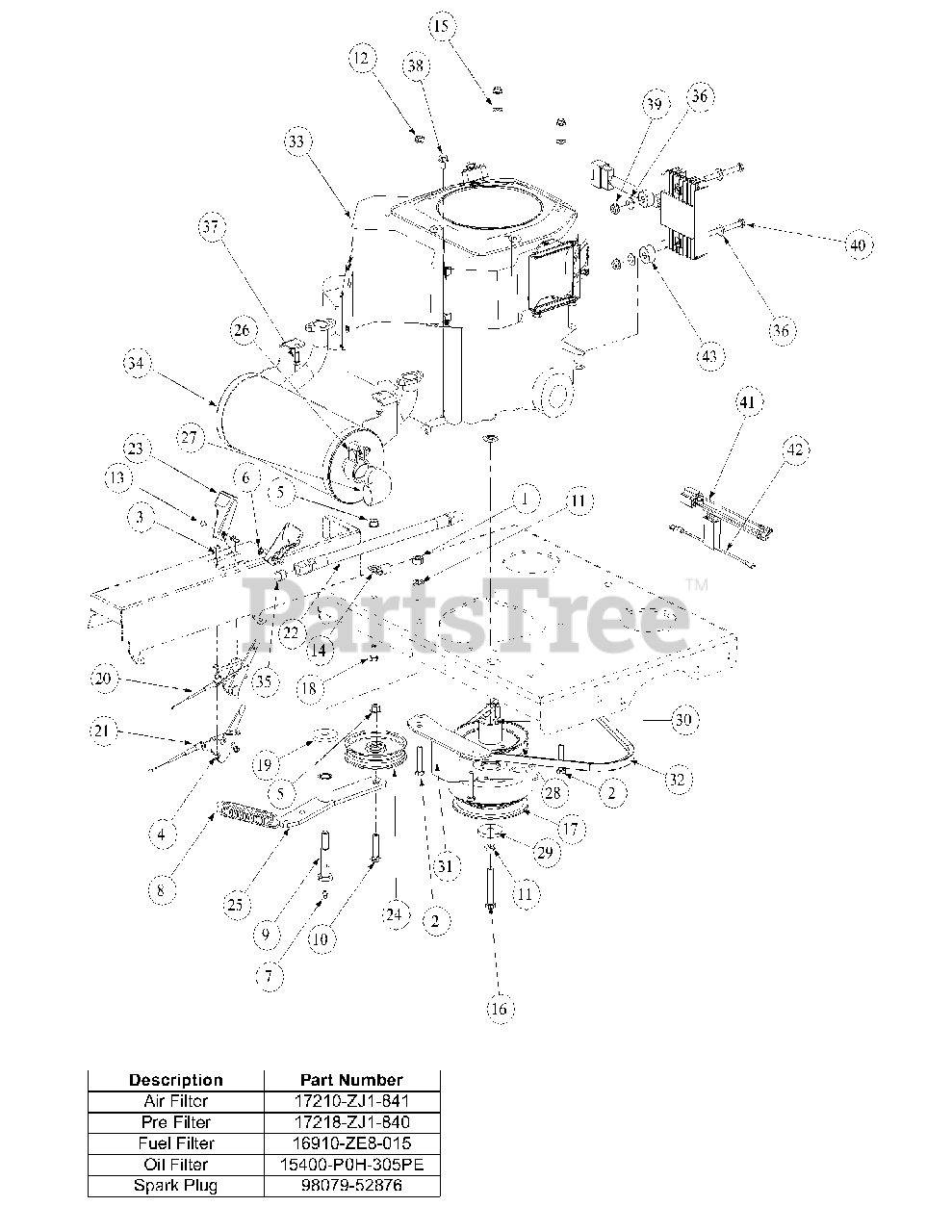

M48-HN (53AB5E6V150) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda (2003 1/2) Honda Engine Assembly Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

Honda Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 912-3019

Hex Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00014602

Round Hd. Machine Screw, 10-32 x 3/4

$

$

Not available

4

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

5

Cub Cadet 00022560

Flange Lock, Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00060056

Nut Washer, W/Star, 8-32

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.125

$17.99

$

In Stock, only 4 left!

0

9

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

10

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 12

0

11

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 712-3004A

Hexflange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3217

Machine Screw, 8-32, .375

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 726-3008

Clip, Heat Shield Cable

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet 01008517

Capscrew, 7/16-20 x 3.50

$

$

Not available

17

Cub Cadet 917-04127

Clutch Electric, Ogura JD08

$604.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0216

Hex Cap Screw, 3/8-16, .750

$4.49

$

In Stock, Qty 16

0

19

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD x .25
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

20

Cub Cadet 01008231

Choke Control Cable

$

$

Not available

21

Cub Cadet 01008232

Throttle Control Cable

$51.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008208

Oil Drain Hose

$61.99

$

In Stock, only 1 left!

0

23

Cub Cadet 731-04914

Control Throttle Knob

$13.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005077

Flat Pulley with Flanges

$35.99

$

In Stock, Qty 20+

0

25

Cub Cadet 01005006

Engine Idler Arm Assembly includes:

$120.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

26

Cub Cadet 01008258

Tube Clamp, 1.50

$

$

Not available

27

Cub Cadet 01008261

Muffler Accessory Exhaust Tube

$

$

Not available

28

Cub Cadet 756-3060A

Trans Drive Pulley

$97.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .25

$15.99

$

In Stock, only 1 left!

0

30

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

31

Cub Cadet 01006456

Retainer Clutch Assembly, Ogura

$

$

Not available

32

Cub Cadet 01007015

Belt, 51.2 Lg
(Superseded to 01007015P)

$36.99

$

In Stock, Qty 10

0

33

Cub Cadet 01008282

Engine, 20HP Honda, use Engine Oil 10W40

Note: NLA

$

$

Not available

34

Cub Cadet 02003402

Muffler
(Superseded to 02003402P)

$440.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 737-04202

Pipe Plug, 3/8 NPT

$6.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 936-0463

Flat Washer, 1/4
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 00014517

Hex Cap Screw, M8-1.25 x 18mm

$

$

Not available

38

Cub Cadet 01001042

Screw, M6 x 1.0 x 12mm

$

$

Not available

39

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange Lock

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 01000898

Hex Cap Screw, 1/4-20 x 2.50

$

$

Not available

41

Cub Cadet 01008227

Wire Harness Adapter

$42.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 01008264

Charge Regulator Wire

$

$

Not available

43

Cub Cadet 01008439

Spacer, .281 ID x .875 OD

$

$

Not available

Honda 17210-ZJ1-842

Air Filter

$43.99

$

In Stock, only 1 left!

0

Honda 17218-ZJ1-840

Pre Filter

$7.49

$

In Stock, only 1 left!

0

Honda 16910-ZE8-015

Fuel Filter

$14.99

$

In Stock, Qty 9

0

Honda 15400-PLM-A01PE

Oil Filter
(Superseded to 15400-PLM-A02PE)

$13.99

$

In Stock, Qty 11

0

Honda 98079-52876

Spark Plug

$3.49

$

In Stock, only 1 left!

0
