M48-HN (53AB5E6V150) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda (2003 1/2) GXV620K1 Oil Pan Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

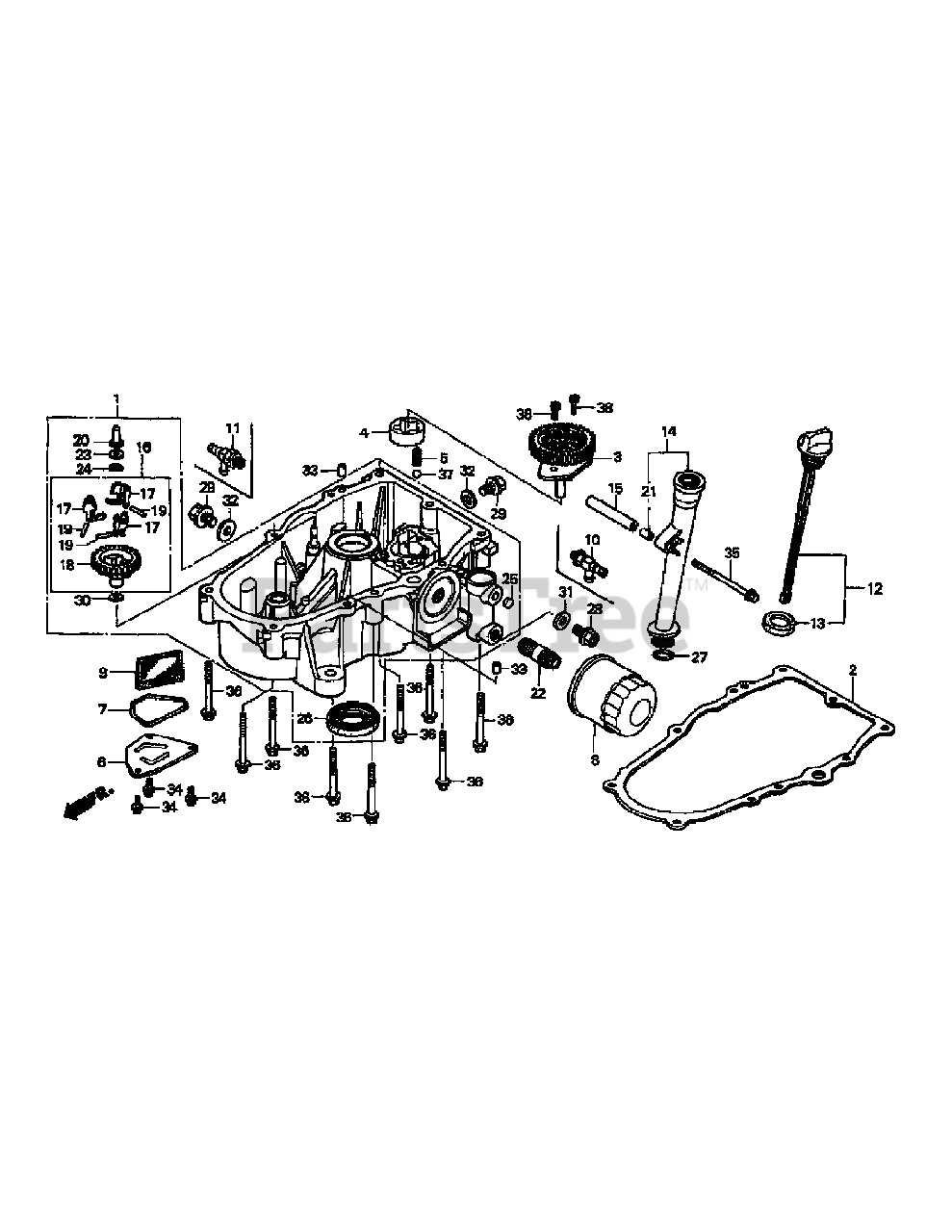

GXV620K1 Oil Pan Parts Diagram

  • Title

1

Cub Cadet 11300-ZJ4-831

Oil Pan Assy.

$

$

Not available

2

Honda 11381-ZJ1-840

Case Cover Gasket

$24.99

$

In Stock, only 1 left!

0

3

Cub Cadet 15120-ZJ1-000

Oil Pump Cover Assy.
(Superseded to 15120-ZJ1-010)

$76.99

$

In Stock, only 1 left!

0

4

Honda 15124-ZJ1-003

Oil Pump Rotor (Outer)

$27.99

$

Usually ships in 3-6 days

0

5

Honda 15232-ZJ1-000

Relief Valve Spring

$3.49

$

In Stock, only 1 left!

0

6

Honda 15334-ZJ4-000

Oil Filter Plate

$17.99

$

Usually ships in 3-6 days

0

7

Honda 15339-ZJ4-000

Oil Plate O-Ring

$10.99

$

In Stock, only 4 left!

0

8

Honda 15400-PLM-A01PE

Oil Filter
(Superseded to 15400-PLM-A02PE)

$14.99

$

In Stock, Qty 15

0

9

Honda 15427-ZG8-000

Oil Filter Screen

$14.99

$

In Stock, only 2 left!

0

10

Honda 15558-ZJ1-010AH

Drain Valve (14x1.5)

$29.99

$

Usually ships in 3-6 days

0

11

Honda 15558-772-010

Oil Shut-Off Valve

$31.99

$

Usually ships in 3-6 days

0

12

Honda 15600-ZJ4-000

Oil Filler Cap Assy.

$29.99

$

In Stock, only 1 left!

0

13

Honda 15625-ZE8-000

Oil Filler Cap Gasket

$5.49

$

In Stock, only 1 left!

0

14

Honda 15630-ZE8-000

Oil Filler Extension
(Superseded to 15630-Z5N-800)

$6.49

$

In Stock, only 1 left!

0

15

Honda 15637-ZJ4-830

Filler Setting Collar

$8.49

$

Usually ships in 3-6 days

0

16

Honda 16510-ZJ1-840

Governor Assy.

$30.99

$

Usually ships in 3-6 days

0

17

Honda 16511-ZJ1-840

Governor Weight

$6.99

$

Usually ships in 3-6 days

0

18

Honda 16512-ZJ1-840

Governor Weight Holder

$

$

Not available

19

Honda 16513-ZE2-000

Governor Weight Pin

$2.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 16531-ZOA-000

Governor Slider
(Superseded to 16531-Z0A-000)

$3.99

$

In Stock, only 3 left!

0

21

Honda 17240-ZE6-000

Extension Collar

$4.99

$

In Stock, only 1 left!

0

22

Honda 90018-PN3-000

Oil Filter Holder

$9.99

$

In Stock, only 1 left!

0

23

Honda 90473-147-000

Washer (6x16)

$1.99

$

In Stock, only 1 left!

0

24

Honda 90602-ZE1-000

Governor Holder Clip

$1.99

$

In Stock, only 3 left!

0

25

Honda 90855-921-300

Sealing Plug (10mm)

$3.99

$

In Stock, only 1 left!

0

26

Honda 91202-ZJ1-841

Oil Seal (38x58x9)

$11.99

$

In Stock, Qty 7

0

27

Honda 91301-ZE9-003

O-Ring (22.5x2.2)

$2.49

$

In Stock, Qty 12

0

28

Honda 92800-14000

Drain Plug Bolt (14mm)

$5.99

$

Usually ships in 3-6 days

0

29

Honda 92800-20000

Drain Plug Bolt (20mm)

$7.49

$

Usually ships in 3-6 days

0

30

Honda 94101-06800

Plain Washer (6mm)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94109-14000

Drain Plug Washer (14mm)

$0.99

$

In Stock, Qty 20+

0

32

Honda 94109-20000

Drain Plug Washer (20mm)

$1.99

$

In Stock, only 3 left!

0

33

Honda 94301-08140

Dowel Pin (8x14)

$2.99

$

In Stock, Qty 8

0

34

Honda 95701-06014-00

Flange Bolt (6x14)

$1.49

$

In Stock, Qty 8

0

35

Honda 95701-06100-00

Flange Bolt (6x100)

$3.99

$

Usually ships in 3-6 days

0

36

Honda 95701-08050-00

Flange Bolt (8x50)

$3.49

$

In Stock, Qty 5

0

37

Honda 96211-12000

Steel Ball (#12) (3/8)

$1.49

$

Usually ships in 3-6 days

0

38

Honda 96600-06016-00

Socket Bolt (6x16)

$2.49

$

Usually ships in 3-6 days

0
