M48-HN (53AB5E6V150) - Cub Cadet 48" Tank Zero-Turn Mower, 20hp Honda (2003 1/2) GXV620K1 Cylinder Barrel Parts Diagram

48" Tank Zero-Turn Mower, 20hp Honda

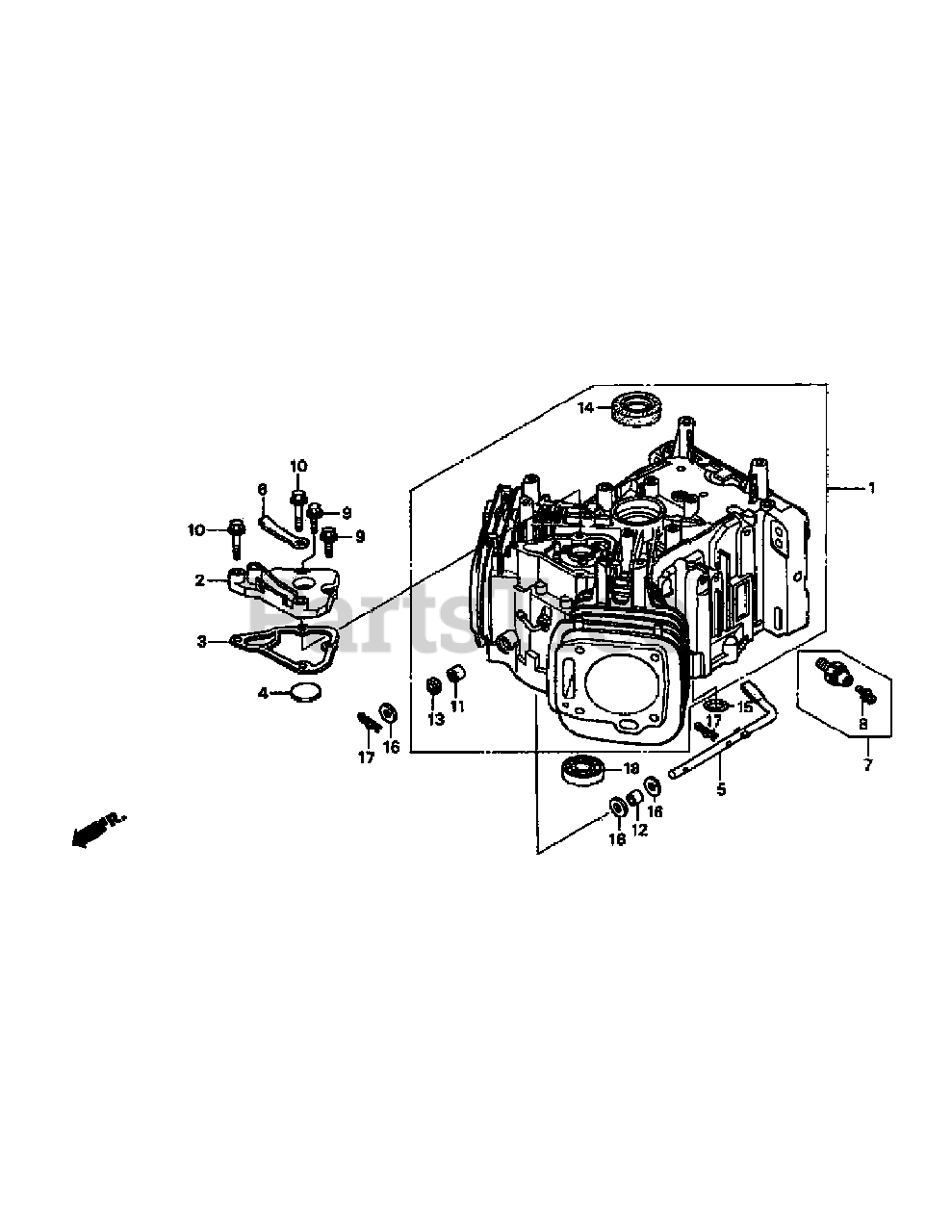

GXV620K1 Cylinder Barrel Parts Diagram

  • Title

1

Honda 12000-ZJ4-831

Cylinder Assy.

$1539.99

$

Usually ships in 3-6 days

0

2

Honda 12356-ZJ1-000

Breather Cover

$31.99

$

Usually ships in 3-6 days

0

3

Honda 12358-ZJ1-000

Breather Cover Gasket

$11.99

$

In Stock, only 1 left!

0

4

Honda 12372-ZE2-300

Breather Valve

$3.99

$

In Stock, Qty 5

0

5

Honda 16541-ZJ1-840

Governor Arm Shaft

$44.99

$

Usually ships in 3-6 days

0

6

Honda 31511-ZJ1-000

Wire Clamp

$4.49

$

Usually ships in 3-6 days

0

7

Honda 37240-ZG3-E01

Oil Pressure Switch

$44.99

$

Usually ships in 3-6 days

0

8

Honda 90002-ZG5-004

Screw Washer (4x8)

$9.99

$

Usually ships in 3-6 days

0

9

Honda 90029-888-000

Flange Bolt (6x16)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90031-ZE1-000

Flange Bolt (6x32)

$3.99

$

In Stock, only 2 left!

0

11

Honda 91001-ZJ1-841

Needle Bearing (8x12.7x11.1)

$8.99

$

Usually ships in 3-6 days

0

12

Honda 91002-ZJ1-841

Needle Bearing (8x12x10)

$11.99

$

Usually ships in 3-6 days

0

13

Honda 91201-ZE9-003

Oil Seal (8x14x5)

$5.49

$

In Stock, Qty 11

0

14

Honda 91201-ZJ1-841

Oil Seal (38x58x9)

$11.99

$

In Stock, only 1 left!

0

15

Honda 91302-MB6-830

O-Ring (13x3.0)

$2.49

$

In Stock, only 1 left!

0

16

Honda 94102-08800

Plain Washer (8mm)

$1.49

$

In Stock, Qty 9

0

17

Honda 94251-08000

Lock Pin (8mm)

$1.99

$

In Stock, Qty 13

0

18

Honda 96140-60030-10

Radial Ball Bearing

$19.99

$

Usually ships in 3-6 days

0
