M48-16BV-5 - Exmark 48" Metro Walk-Behind Mower, 16hp Briggs & Stratton (SN: 090000 - 101999) (1994) 52" Mower Deck Parts Diagram

48" Metro Walk-Behind Mower, 16hp Briggs & Stratton

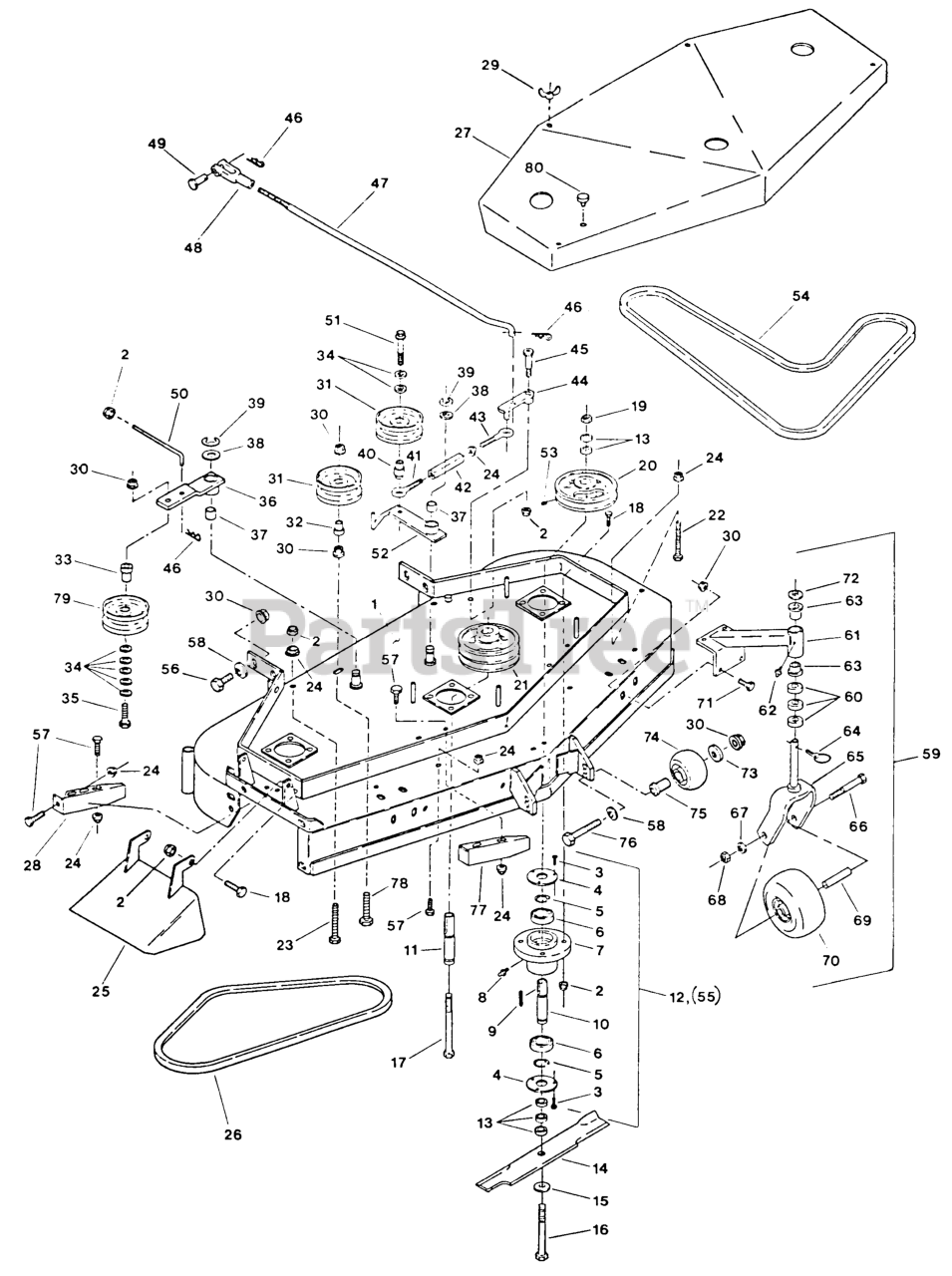

52" Mower Deck Parts Diagram

  • Title

1

Exmark 1-402060

1-402101
(Superseded to 1-402101)

$

$

Not available

2

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

3

Exmark 1-801035

SCRWMACH PHS

$1.49

$

In Stock, only 3 left!

0

4

Exmark 1-303523

CAP,CUTTER HOUSING

$

$

Not available

5

Exmark 1-808521

RING,RETNG WLDS 5108-100

$1.49

$

In Stock, only 2 left!

0

6

Exmark 1-303057

1-303543
(Superseded to 1-303543)

$45.99

$

In Stock, Qty 20+

0

7

Exmark 1-303189

HOUSING,CUTTER

$

$

Not available

8

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

9

Exmark 1-807263

13-2840
(Superseded to 13-2840)

$1.99

$

In Stock, only 3 left!

0

10

Exmark 1-303187

SPINDLE,CUTTER

$57.99

$

Usually ships in 3-6 days

0

11

Exmark 1-403033

DISCONTINUED

$

$

Not available

12

Exmark 1-302030

HOUSING,CUTTER COMPLETE

$

$

Not available

13

Exmark 1-303164

1-323539
(Superseded to 1-323539)

$2.49

$

In Stock, Qty 20+

0

14

Exmark 1-303527

103-1578-S
(Superseded to 103-1578-S)

$39.99

$

In Stock, Qty 13

0

Exmark 1-303495

103-6582-S
(Superseded to 103-6582-S)

Note: Requires Installation of Mulching Kit for proper Mulching.

$34.99

$

In Stock, Qty 20+

0

Exmark 1-303439

103-6580-S
(Superseded to 103-6580-S)

$36.99

$

In Stock, Qty 13

0

Exmark 1-303283

103-6584-S
(Superseded to 103-6584-S)

$34.99

$

In Stock, Qty 20+

0

15

Exmark 1-805268

3256-7
(Superseded to 3256-7)

$1.99

$

In Stock, Qty 20+

0

16

Exmark 1-800860

DISCONTINUED

$

$

Not available

17

Exmark 1-800861

SCREW-CAP, HH

$20.99

$

In Stock, Qty 15

0

18

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

19

Exmark 1-804510

3219-6
(Superseded to 3219-6)

$4.49

$

In Stock, Qty 20+

0

20

Exmark 1-303073

PULLEY,CAST IRON

$174.99

$

In Stock, only 1 left!

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Use on Pulley Bore

$22.99

$

In Stock, only 1 left!

0

21

Exmark 1-403032

DISCONTINUED (EXMARK)

$

$

Not available

Exmark 1-840023

PRO-LOCK-RETAINING 1

Note: Use on Pulley Bore

$22.99

$

In Stock, only 1 left!

0

22

Exmark 1-800021

BOLT,TAP HH

$3.49

$

Usually ships in 3-6 days

0

23

Exmark 1-800020

BOLTTAP HH

$

$

Not available

24

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

25

Exmark 1-602571-01

WLD,CHUTE DISCHARGE

$213.99

$

Usually ships in 3-6 days

0

26

Exmark 1-403105

DISCONTINUED

$

$

Not available

27

Exmark 1-404136

DISCONTINUED (EXMARK)

$

$

Not available

28

Exmark 1-402057-01

WLD, DISCHARGE BAFFLE

$

$

Not available

29

Exmark 1-803014

DISCONTINUED

$

$

Not available

30

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-603843

132-4718
(Superseded to 132-4718)

$35.99

$

In Stock, Qty 20+

0

32

Exmark 1-403074

1-543879
(Superseded to 1-543879)

$16.99

$

In Stock, only 1 left!

0

33

Exmark 1-603496

BUSHING-IDLER

$7.99

$

In Stock, Qty 20+

0

34

Exmark 1-805259

3256-24
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

35

Exmark 1-800296

323-10
(Superseded to 323-10)

$1.49

$

In Stock, Qty 20+

0

36

Exmark 1-402053

ARM WLDMNT W/BUSHING

$107.99

$

Usually ships in 3-6 days

0

37

Exmark 1-303144

BEARING,POWDERED METAL

$5.49

$

In Stock, only 1 left!

0

38

Exmark 1-303352

WASHER-SPINDLE

$2.99

$

In Stock, Qty 13

0

39

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 20+

0

40

Exmark 1-303434

BUSHING-ENGAGEMENT

$15.99

$

In Stock, Qty 20+

0

41

Exmark 1-303348

EYEBOLT-THREAD, LH

$6.99

$

In Stock, Qty 20+

0

42

Exmark 1-303236

BODY-TURNBUCKLE

$22.99

$

In Stock, Qty 15

0

43

Exmark 1-303238

EYEBOLT-THREAD, RH

$6.99

$

In Stock, Qty 20+

0

44

Exmark 1-302198

1-321021
(Superseded to 1-321021)

$95.99

$

Usually ships in 3-6 days

0

45

Exmark 1-809011

BOLT,SHLDR KSKH

$

$

Not available

46

Exmark 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0

47

Exmark 1-323303

ARM-ASSIST, LINKAGE

$26.99

$

In Stock, only 2 left!

0

48

Exmark 1-303105

YOKE-ADJUSTABLE

$13.99

$

In Stock, only 2 left!

0

49

Exmark 1-808280

PIN-CLEVIS

$2.99

$

Usually ships in 3-6 days

0

50

Exmark 1-403107

LINKAGE

$47.99

$

In Stock, only 1 left!

0

51

Exmark 1-803003

DISCONTINUED

$

$

Not available

52

Exmark 1-302129

1-402109
(Superseded to 1-402109)

$132.99

$

In Stock, only 2 left!

0

53

Exmark 1-803310

SCREW-SET

$2.99

$

In Stock, only 2 left!

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

Note: Use on Setscrew Threads

$21.99

$

Usually ships in 3-6 days

0

54

Exmark 1-323301

DISCONTINUED

$

$

Not available

55

Exmark 1-402006

HOUSING,CUTTER COMPLETE

$287.99

$

Usually ships in 3-6 days

0

56

Exmark 1-800293

323-7
(Superseded to 323-7)

$3.49

$

In Stock, Qty 20+

0

57

Exmark 1-800270

322-2
(Superseded to 322-2)

$2.99

$

In Stock, Qty 20+

0

58

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.99

$

In Stock, Qty 20+

0

59

Exmark 1-302201

DISCONTINUED

$

$

Not available

60

Exmark 1-303314

SPACER-CASTER

$6.99

$

In Stock, Qty 20+

0

61

Exmark 1-302194

1-302203
(Superseded to 1-302203)

$318.99

$

Usually ships in 3-6 days

0

Exmark 1-302203

SUPPORT ASM

$318.99

$

Usually ships in 3-6 days

0

62

Exmark 1-811001

302-52
(Superseded to 302-52)

$6.99

$

In Stock, Qty 20+

0

63

Exmark 1-303514

BEARING-FLANGED

$13.99

$

In Stock, Qty 20+

0

64

Exmark 1-809020

PIN

$12.99

$

In Stock, Qty 6

0

65

Exmark 1-302200-01

DISCONTINUED (EXMARK)

$

$

Not available

66

Exmark 1-800334

325-20
(Superseded to 325-20)

$8.49

$

In Stock, Qty 20+

0

67

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

68

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 20+

0

69

Exmark 1-513547

SPACER

$13.99

$

In Stock, Qty 20+

0

70

Exmark 1-513648

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, Qty 17

0

Exmark 1-513807

103-2171
(Superseded to 103-2171)

$137.99

$

In Stock, Qty 17

0

Exmark 1-513808

TIRE

$45.99

$

In Stock, only 2 left!

0

Exmark 1-513809

BEARING

$37.99

$

In Stock, Qty 20+

0

Exmark 1-513810

BUSHING

$6.49

$

In Stock, Qty 20+

0

71

Exmark 1-800290

323-4
(Superseded to 323-4)

$4.49

$

In Stock, Qty 14

0

72

Exmark 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

73

Exmark 1-373034

WASHER

$3.99

$

In Stock, Qty 20+

0

74

Exmark 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

75

Exmark 1-603602

BUSHING-ROLLER

$25.99

$

In Stock, Qty 20+

0

76

Exmark 1-800807

98-5961
(Superseded to 98-5961)

$5.49

$

In Stock, Qty 20+

0

77

Exmark 1-402055

DISCONTINUED (EXMARK)

$

$

Not available

78

Exmark 1-800029

BOLT,TAP HH3/8-16X2-1/4

$

$

Not available

79

Exmark 1-403119

IDLER,PULLEY

$46.99

$

In Stock, only 3 left!

0

80

Exmark 1-513291

DISCONTINUED

$

$

Not available
